Help CenterH82409S Dual Port SMD SOP-24 Pin Gigabit Ethernet Isolation Filter/Network Transformer 10/100/1000Mbps IEEE 802.3 for Route
Product Spotlights
Related Products
-
Pulse H5004NL/H82407S SOP24 SMT 1Gbps Ethernet Mag Module, 1000Base-T Isolation Filter for Router/Switch/IndustrialUS$ 1.29MOQ: 1000 Pieces -
100Mbit SOP16 LAN Transformer H81601S | Direct Replacement for Pulse H1102NL | RJ45 Network Filter Module With Discrete MagneticUS$ 0.67MOQ: 1000 Pieces
-
H84802S Dual Port SMD SOP-48 Pin Gigabit Ethernet Isolation Filter/Network Transformer 10/100/1000Mbps POE+ IEEE 802.3 for RouteUS$ 0.78MOQ: 1000 Pieces
-
HM82409S Dual Port SMD SOP-24 Pin Gigabit Ethernet Isolation Filter/Network Transformer 10/100/1000Mbps IEEE 802.3 for RouteUS$ 2.29MOQ: 1000 Pieces
-
H81603S Hundred Gigabit Single Port POE550MA H1102nl /H1601cg/HR601680/S16001G16P LAN Pulse Filter TransformerUS$ 2.78MOQ: 1000 Pieces
Technical Specification
H82409S
Hqst product model |
H82409S |
Alternative models |
|
Product category |
LAN transformer |
Speed |
1000M Base-t |
Storage temperature range |
-40℃ to +85℃ |
PIN number |
SOP48 |
Operating temperature range |
0℃ to +70℃ |
Inductance value |
350U |
Trun ratio |
1：1 |
ROHS |
YES |
POE |
- |

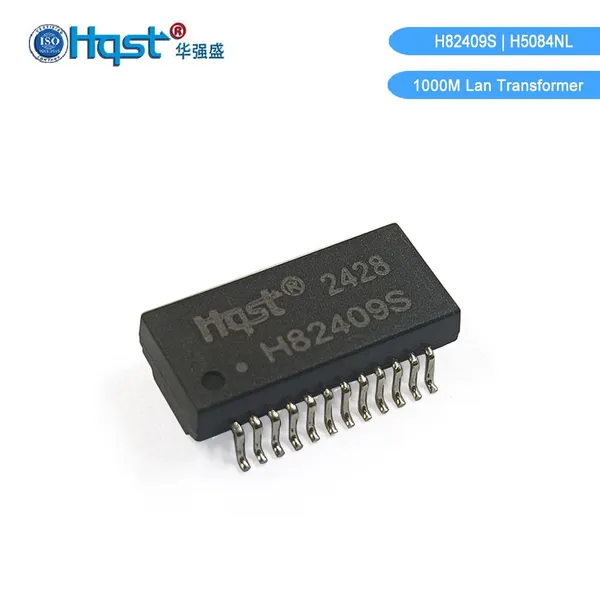

Dual-port Gigabit TransmissionThis SOP-24 pin Ethernet transformer supports 10/100/1000Mbps auto-adaptive rate and fully complies with IEEE 802.3 standard, delivering stable high-speed data transmission for dual Ethernet channels simultaneously.

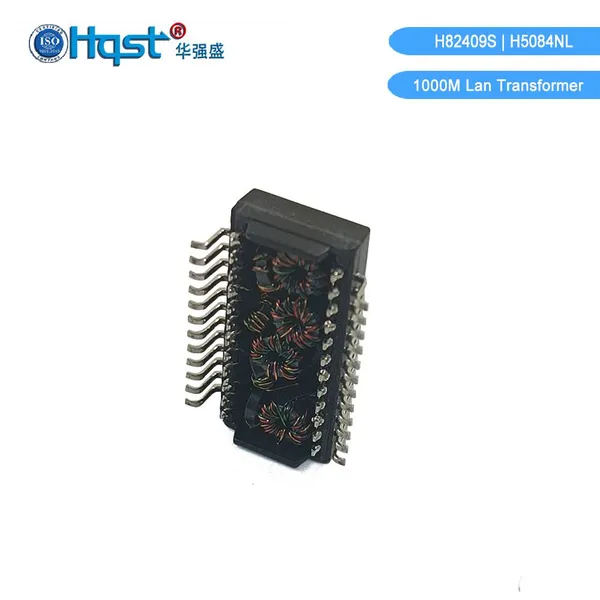

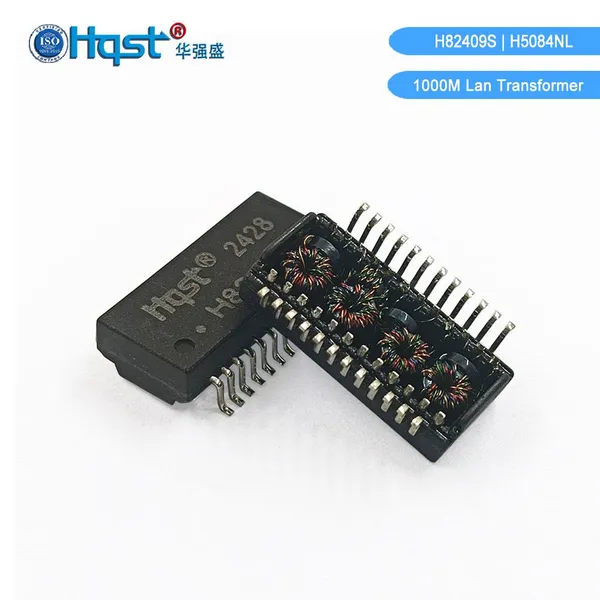

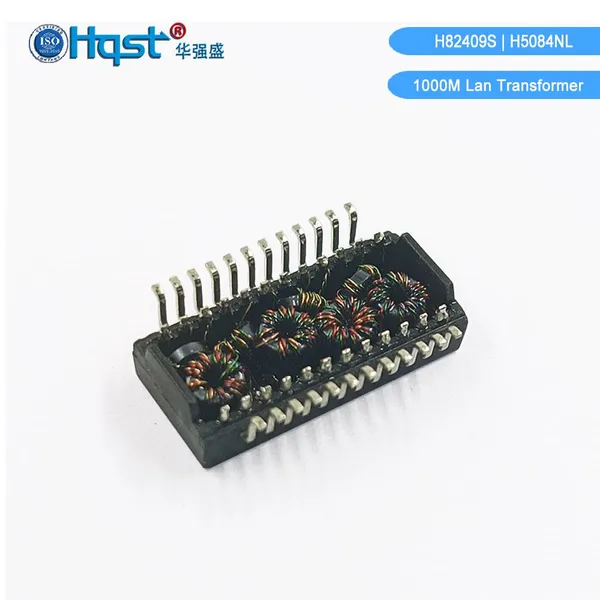

SMD SOP-24 Compact PackageSurface-mount SOP-24 pin design fits automated SMT assembly perfectly. It saves PCB space, simplifies circuit layout and improves production efficiency and yield for dense networking devices.
Excellent Isolation & Filtering PerformanceIntegrated isolation circuit and common-mode choke provide reliable galvanic isolation and outstanding EMI suppression, effectively filtering interference and protecting mainboard PHY chips from voltage surges and ground loop issues.
High Reliability & Wide CompatibilityStrict production control ensures consistent electrical parameters. It is fully compatible with mainstream gigabit Ethernet solutions, ideal for routers, switches and other wired network equipment.
Eco-friendly & DurableManufactured with high-quality materials, long service life. RoHS compliant, meeting global environmental requirements for export and commercial application.
Send Inquiry to This Supplier
