Help CenterJIS F7300 Full Bore Marine Ball Valve With Extended Warranty and Technical Support
Product Spotlights
Related Products
-
JIS F7300 Full Bore Marine Ball Valve for Shipbuilding and Main Pipeline SystemsNegotiableMOQ: 1 Unit -
JIS F7300 Standard Marine Ball Valve With Full Bore Design, Carbon Steel Construction and Flange EndNegotiableMOQ: 1 Unit
-
Flanged End Marine Desulfurization Ball Valve, JIS F7300 Standard, BV CertifiedNegotiableMOQ: 1 Unit
-
PN4.0MPa JIS F7300 Ball Valve for Marine Exhaust Gas Cleaning SystemsNegotiableMOQ: 1 Unit
-
JIS F7300 Ball Valve for Scrubber Units in Marine Engine DesulfurizationNegotiableMOQ: 1 Unit
As a dedicated manufacturer with a strong focus on marine fluid control solutions, Shanghai Zhibang Valve Manufacture Co., Ltd. proudly presents our JIS F7300 Full Bore Marine Ball Valve. Designed to meet the rigorous demands of the maritime industry, this valve offers exceptional flow capacity, reliable sealing, and long-term durability in corrosive marine environments. With our commitment to quality backed by ISO9001 certification and extensive experience supplying to global markets, we provide a valve solution engineered for performance and peace of mind, supported by our unique extended warranty and technical support package.
Our JIS F7300 Full Bore Marine Ball Valve is engineered for critical applications where minimal pressure drop and maximum flow efficiency are paramount. The full port design ensures the valve port diameter matches the pipeline diameter, significantly reducing flow resistance and turbulence. This makes it an ideal choice for applications such as ballast systems, fuel oil lines, cargo handling, and seawater cooling systems on various vessels, including cargo ships, tankers, offshore platforms, and naval vessels.
Key Features & Technical Advantages:
- Superior Flow Performance: The full bore design provides a Cv (flow coefficient) value close to that of a straight pipe, minimizing energy loss and allowing for efficient pigging or cleaning of the pipeline.
- Robust Construction: Manufactured from materials specifically selected for marine service, including CF8M (316 stainless steel), WCB carbon steel, and naval bronze, offering excellent resistance to seawater corrosion, pitting, and cavitation.
- Reliable Sealing System: Features reinforced PTFE or metal-seated seals (optional) that ensure bubble-tight shut-off even after prolonged periods of inactivity and under high-pressure cycling.
- Extended Stem Design: The stem is extended and sealed with multiple packing rings and a blow-out-proof stem design, preventing leakage to the atmosphere and ensuring safe operation in the event of a fire.
- Low Torque Operation: Precision-machined ball and seats, combined with low-friction bearings, ensure smooth quarter-turn operation, reducing wear on actuators and manual operators.

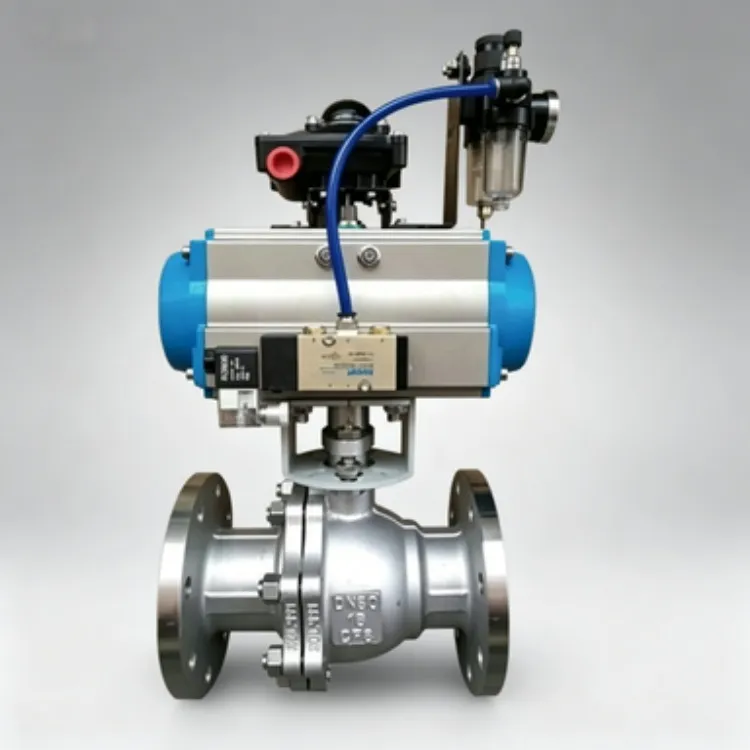

- Versatile Actuation Options: Can be fitted with manual lever, gear operator, pneumatic actuator, or electric actuator, providing flexibility for automated or remote-controlled systems.
The valve is manufactured in strict compliance with the JIS F7300 standard, which specifies requirements for marine steel valves. This ensures dimensional interchangeability, material suitability, and performance criteria recognized by shipyards and classification societies worldwide.
Common Technical Specifications:
| Parameter | Specification |
|---|---|
| Design Standard | JIS F7300 |
| Face-to-Face | As per JIS F7300 / API 6D / Customer Request |
| Pressure Rating | PN10, PN16, PN25, Class 150, Class 300 |
| Temperature Range | -20°C to 200°C (Standard) / Up to 425°C (High-Temp Option) |
| End Connection | RF Flange (JIS 10K/20K, ANSI), Threaded (NPT, BSPT/BSPP), Butt Weld |
| Fire Safe Design | Available (Compliant with API 607/API 6FA) |
| Body Material | WCB, CF8, CF8M, C95800, Other materials upon request |
Benefits for Your Operations: Choosing our valve translates into tangible benefits for shipowners, shipyards, and marine engineers. You gain a component that reduces system pressure drop, leading to lower pumping energy costs. Its reliability minimizes unplanned downtime and maintenance interventions during voyages. The extended warranty coverage directly reduces your total cost of ownership and mitigates financial risk. Furthermore, our technical support provides you with direct access to engineering expertise for installation, troubleshooting, and lifecycle management.
Shanghai Zhibang Valve Manufacture Co., Ltd. is not just a supplier; we are a partner in your project's success. Established in 2016, we have rapidly grown to serve a diverse global clientele across North America, South America, Europe, Asia, Africa, and Oceania, with an annual export value demonstrating our capacity and reliability. Our ISO9001 certified manufacturing processes guarantee consistent quality in every valve we produce. We ship efficiently from major ports like Shanghai, Guangzhou, Hong Kong, and Beijing, ensuring timely delivery to your shipyard or project site. Trust in a manufacturer that combines robust product engineering with comprehensive after-sales commitment. Contact us today to discuss how our JIS F7300 Full Bore Marine Ball Valve, backed by extended warranty and expert support, can enhance the reliability and efficiency of your marine fluid systems.
Frequently Asked Questions (FAQ)
-
Q: What is the main advantage of a full bore ball valve over a reduced bore valve for marine use?
A: The primary advantage is minimal pressure drop. In marine piping systems, especially for fuel transfer, ballast, or cargo lines, a full bore valve allows the pipeline to maintain its full flow capacity, reducing pump energy consumption and allowing for easier passage of pipeline inspection gauges (pigs).
-
Q: Does this valve comply with specific classification society rules?
A: Yes. The JIS F7300 standard is widely recognized. Our valves are commonly supplied with material certificates (CMTR) and can be furnished with optional certification from classification societies such as ABS, DNV, BV, LR, or others upon request, following the necessary inspection procedures.
-
Q: What is included in the "extended warranty" offered?
A: Our extended warranty typically covers defects in materials and workmanship for a period longer than the standard industry offering. Specific terms, such as duration and coverage scope, are provided with the commercial proposal. It often includes pro-rata repair or replacement support.
-
Q: Can this valve be supplied with anti-corrosion coatings?
A: Absolutely. We offer various external coating options suitable for marine environments, including epoxy coatings, zinc plating, or specialized marine-grade paints as per customer specifications to enhance longevity against saltwater spray and atmospheric corrosion.
-
Q: What type of technical support do you provide?
A: Our technical support includes pre-sales engineering consultation for valve selection, installation guidance documents, on-site or remote troubleshooting assistance if issues arise, and advice on maintenance schedules and spare parts. We aim to be a resource throughout the valve's lifecycle.
-
Q: Are different seat materials available for varying media?
A: Yes. Standard seats are reinforced PTFE suitable for a wide range of media. For abrasive slurries, high-temperature fluids, or specific chemicals, we can offer alternative seats such as PCTFE, Nylon, PEEK, or metal (Stainless Steel, Hastelloy) seated designs.
-
Q: What is the typical lead time for production and delivery?
A: Lead time depends on valve size, material, and quantity. For standard specifications and materials, we often maintain inventory for common sizes. For larger or customized orders, production lead time is provided upon inquiry, and we coordinate shipping from our nearest port for optimal delivery speed.
-
Q: Is the valve suitable for both above-deck and below-deck applications?
A: Yes, with proper material selection. For exposed above-deck applications, we recommend stainless steel or bronze with appropriate coatings for maximum corrosion resistance. For engine room or tank applications, carbon steel with internal coatings might be suitable. We guide you based on the specific service conditions.
