As a professional manufacturer with ISO9001 certification, Shanghai Zhibang Valve Manufacture Co., Ltd. specializes in producing high-performance industrial valves for demanding global markets. Our JIS F7300 Standard Marine Ball Valve with Full Bore Design represents our commitment to engineering excellence and reliability in critical marine applications. Engineered from robust carbon steel and featuring a flange end connection, this valve is built to withstand the harsh conditions of seawater, offshore platforms, and shipboard piping systems. We combine precision manufacturing with stringent quality control to deliver a product that ensures secure fluid control, minimal pressure drop, and long-term operational integrity for our clients worldwide.
This marine-grade ball valve is designed to meet the specific requirements of Japanese Industrial Standards (JIS) F7300, which governs valves for marine use. The full bore design is a key feature, providing a flow path with an internal diameter equal to the connecting pipeline. This configuration offers significant advantages:
- Minimal Flow Resistance: The unrestricted flow path reduces pressure loss across the valve, enhancing system efficiency and reducing pumping costs.
- Ease of Maintenance: The full bore allows for the passage of pipeline cleaning pigs, facilitating easy cleaning and inspection without disassembly.
- Superior Sealing: Advanced seat materials, including PTFE and reinforced polymers, ensure bubble-tight shut-off even after prolonged cycling and exposure to marine environments.
- Robust Construction: The carbon steel body provides excellent mechanical strength and corrosion resistance, suitable for handling seawater, ballast, fuel oil, lubricating oil, and compressed air systems.
The valve's technical specifications are tailored for marine service. Below is a summary of key parameters available across our standard range:
| Parameter | Specification / Option |
| Design & Standard | JIS F7300, Full Bore Design |
| Pressure Rating | JIS 10K, 16K, 20K (Standard) |
| Temperature Range | -20°C to 200°C (Standard Seat) |
| End Connection | Flange End (RF, FF), JIS B2220 |
| Operation | Lever, Gear Operator, Pneumatic/Hydraulic Actuator (Optional) |
| Fire Safe Design | Available upon request per API 607/API 6FA standards |
For shipbuilders, offshore operators, and marine system integrators, the benefits of specifying our JIS F7300 valve are clear. The compliance with JIS standards ensures acceptance in major Asian shipbuilding markets and by international classification societies. The carbon steel construction, when combined with appropriate surface coatings like epoxy paint or galvanization, offers a cost-effective solution with durability. The flange end connection simplifies installation and maintenance within existing piping networks. Furthermore, the quarter-turn operation allows for quick opening and closing, which is crucial in emergency situations onboard vessels.
We understand that marine applications demand reliability. Therefore, every valve undergoes rigorous testing, including shell tests, seat tests, and operational cycling, before leaving our facility. Our production capabilities allow for customization in terms of size, pressure class, seat material, and actuation method to fit specific project requirements, from small service lines to large ballast systems.
Frequently Asked Questions (FAQ)
-
Q: What is the main advantage of a Full Bore design over a Reduced Bore ball valve for marine use?
A: The Full Bore (or Full Port) design has an internal bore diameter equal to the pipeline, minimizing flow restriction and pressure drop. This is particularly beneficial for applications requiring efficient fluid transfer, such as fuel loading or ballast systems, and allows for in-line pigging for cleaning. -
Q: Is this valve suitable for seawater service?
A: Yes, the carbon steel body provides a strong base. For direct seawater service, we typically recommend or supply valves with specialized protective coatings (e.g., epoxy) or offer alternative materials like stainless steel upon request to enhance corrosion resistance. -

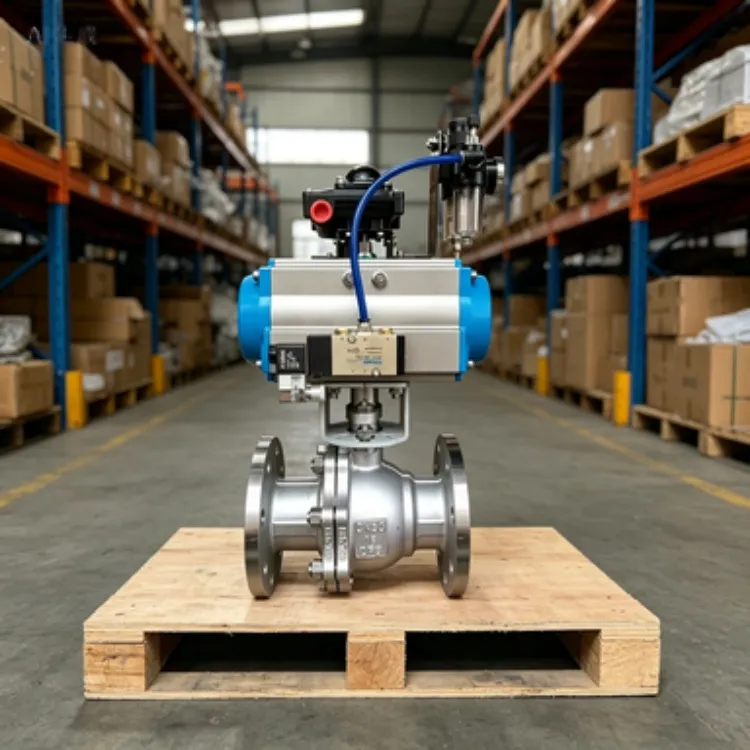

Q: Can this valve be fitted with an actuator for remote operation?
A: Absolutely. The valve is designed to be compatible with pneumatic, hydraulic, or electric actuators. We can provide the valve as a package with an actuator, mounting bracket, and necessary controls based on your system requirements. -
Q: What flange standards are available?
A: The standard flange follows JIS B2220 dimensions. However, we can manufacture flanges to other standards such as ANSI/ASME B16.5, DIN, or BS upon request to match your existing pipeline connections. -
Q: What is the typical delivery lead time for standard sizes?
A: For standard sizes and pressure ratings within our catalog, the lead time is generally 4-6 weeks. For large orders, customized specifications, or non-standard sizes, we provide a specific timeline upon receipt of your detailed inquiry. -
Q: Do you provide documentation for classification society approval?
A: Yes. We can provide standard material certificates (CMTR), test reports, and inspection documentation. For specific classification society approvals (like ABS, DNV, LR, etc.), requirements should be specified upfront so we can plan the manufacturing and inspection process accordingly. -
Q: What maintenance does this valve require?
A: Designed for low maintenance, the primary items are periodic checks of the stem seals and occasional lubrication of the stem (if applicable). The robust seat design ensures long service life. Detailed maintenance manuals are provided with the shipment.
Backed by our ISO9001 quality management system and nearly a decade of manufacturing expertise since our establishment in 2016, Shanghai Zhibang Valve has built a reputation for reliability, exporting over a million dollars in products annually to diverse markets including North America, Southeast Asia, Europe, and the Middle East. Our strategic location with multiple shipment ports (Shanghai, Guangzhou, Hong Kong, Beijing) ensures flexible and efficient logistics for our global partners. When you choose our JIS F7300 Marine Ball Valve, you are not just purchasing a component; you are investing in a solution backed by professional engineering, proven performance, and a commitment to supporting your marine and offshore projects with dependable fluid control technology. Contact us today to discuss your specifications and request a quotation.
