1. Product Overview

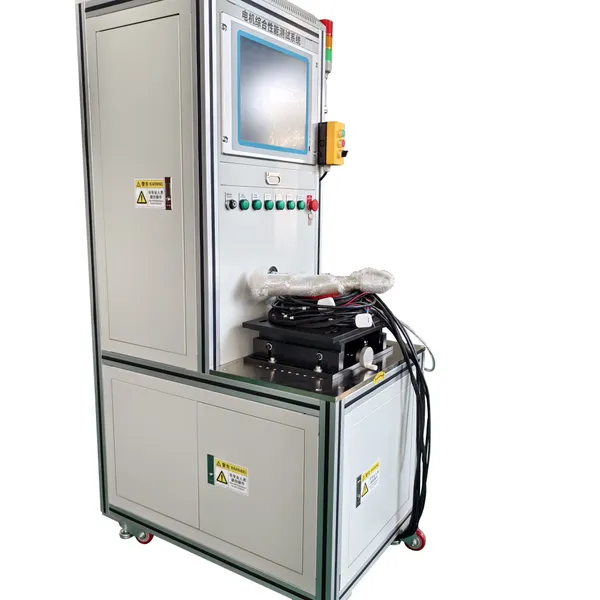

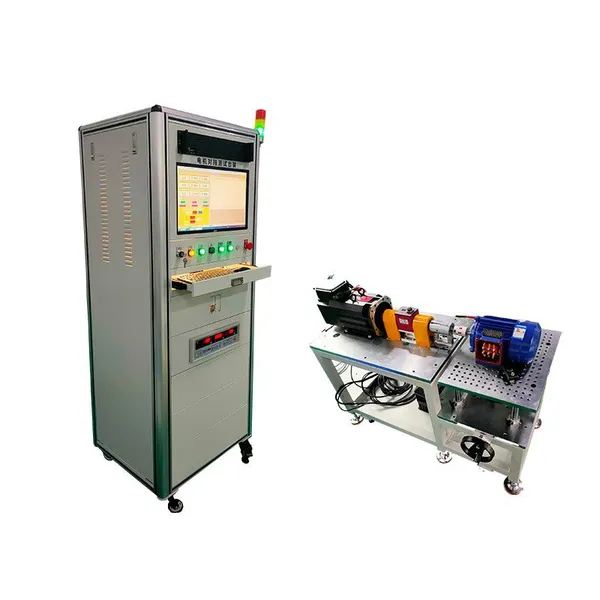

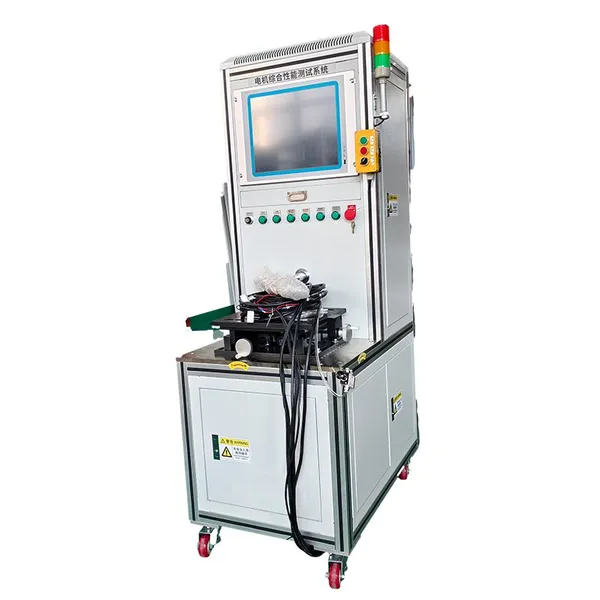

The Universal Fan Motor Test Bench is a professional, high-precision industrial testing system specially developed for mass production inspection, R&D verification and quality sampling of various fan motors. It covers comprehensive performance testing for axial flow fans, centrifugal fans, household ventilation fans, industrial cooling fan motors and other fan motor products.
Adopting integrated mechanical structure and intelligent automatic testing software, the equipment supports manual and automatic dual test modes. It can efficiently collect, analyze and record all electrical, mechanical and thermal performance data of fan motors. With stable operation, high testing accuracy and strong compatibility, it is an essential core testing equipment for fan motor manufacturers to control product quality, optimize motor performance and meet industrial production standards.
2. Core Test Items
This test bench supports full-item standardized testing for finished fan motors and semi-finished products, covering all conventional and key performance indicators required for factory delivery inspection:
Electrical Performance Test: Include winding resistance detection, insulation resistance test, AC hipot test, surge withstand voltage test, no-load current, load current, input power and power factor testing. Effectively detect motor short circuit, open circuit, poor insulation and hidden electrical faults.
Operating Performance Test: Test motor no-load operation, full-load operation, speed stability, startup performance and running status. Simulate actual working conditions to verify the continuous operation reliability of fan motors.
Performance Characteristic Test: Collect fan air volume, wind pressure, flow rate and matching motor efficiency data, draw professional performance characteristic curves, support product performance grading and parameter optimization.
Durability & Safety Test: Support motor temperature rise test, vibration test, noise test and overspeed endurance test. Verify the thermal stability, mechanical stability and service life of fan motors under long-term operation.
3. Product Advantages
3.1 Wide Compatibility & Strong Versatility
The test bench is designed for universal use, compatible with various specifications of AC and DC fan motors, covering small household fan motors to medium-sized industrial fan motors. It can adapt to different voltage, power and speed range test requirements, realizing one machine for multiple purposes and greatly reducing equipment procurement costs.
3.2 High Precision & Stable Testing Data
Equipped with high-sensitivity industrial sensors and high-precision data acquisition modules, the equipment features fast data sampling, low error rate and strong anti-interference ability. All test data is real-time synchronous acquired and analyzed, ensuring test results are accurate, stable and repeatable, fully meeting factory precision testing standards.
3.4 Intelligent Automatic Operation
Configured with industrial control system and independent R&D testing software, it supports one-click automatic testing, automatic data sorting, result judgment (qualified/unqualified) and automatic report generation. It greatly reduces manual operation errors, improves testing efficiency, and is suitable for assembly line mass production testing. Meanwhile, the manual test mode is reserved for R&D precision debugging and sample testing.
3.5 Complete Data Traceability
The system automatically stores all test data, test curves and test reports, supports data query, export and printing. It can match product batch information to realize full-process test data traceability, facilitating factory quality management, after-sales tracking and product upgrade optimization.
3.6 Durable Industrial Structure
Adopting thickened industrial steel frame and anti-vibration structure design, the equipment is sturdy, durable and not easy to deform. The whole machine has good dustproof and anti-interference performance, adapting to long-term continuous operation in factory production environments, with low failure rate and long service life.
4. Technical Parameters
Test Object: AC/DC axial flow fan motor, centrifugal fan motor, cooling fan motor, ventilation fan motor
Test Voltage Range: Customizable 0-400V
Test Power Range: 0-450kW (customizable)
Speed Test Range: 0-30000rpm (support customized parameters)
Data Acquisition Accuracy: ≤±0.5% FS
Operation Mode: Automatic / Manual switchable
System Configuration: Industrial PC, professional test software, high-precision sensor module
Output Report: Excel/PDF customizable format, with characteristic curve graph
Working Environment: Industrial factory conventional environment, 0℃~45℃, stable power supply
5. Application Scenarios
This universal fan motor test bench is widely applicable to mass production factories, quality inspection departments, R&D laboratories of ventilation equipment, household appliances, industrial equipment, new energy and other industries. It is mainly used for factory outgoing inspection, batch sampling test, new product performance verification, motor parameter calibration and product quality standard upgrading, helping enterprises strictly control product quality and improve market competitiveness.
6. After-sales & Service Support
We provide one-stop full service including equipment installation, operator training, long-term technical support and after-sales maintenance. The equipment supports personalized customized design according to customers' special test requirements, different motor specifications and production line layout, to meet the diversified testing needs of different manufacturers.
