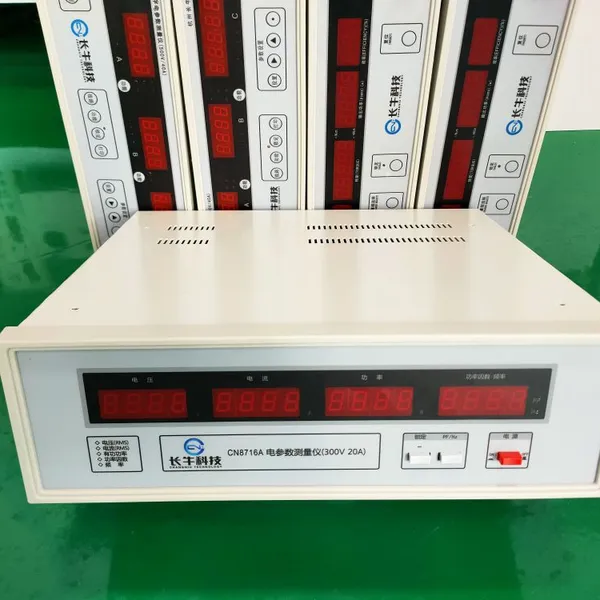

CN8716A Digital Electrical Parameter Measuring Instrument is a kind of intelligent instrument which uses digital sampling technology to analyse and process the signal.
It has the following advantages:
1. the measured signal value is true RMS;
2. direct digital display, which can reduce the human error of reading. 3;
3. the same applies to the waveform distortion signal;
4. one instrument can be used to measure multiple parameters;
5. easy to achieve intelligent, can be connected with the computer.
Input mode: voltage and current are floating inputs;
Measuring signal peak: voltage and current are 1.6 times of the range;
Conversion rate: about 8000 times/sec;
Display update: about 3 times/sec;
Overall power consumption:
Atmospheric pressure: (86~106) kPa;
Ambient temperature: (0~40)℃;
Relative humidity: ≤85%RH ;
Instrument working power: AC 220V±20V; (50~60)Hz.
Parameter |
Measuring Range |
Measuring Error |
Resolution |
Remarks |
Voltage |
(10~300) V |
± (0.4% of reading+0.1% of range) |
0.1V |
Allowable overload 1.2 times of range |
Current |
(0.02~20) A |
0.001A |
Allowable overload of 1.2 times the range | |
power |
U*I*PF |
PF=1.0:±(0.25%reading +0.25% range) PF=0.5:±(0.5%reading +0.5% range) |
0.1W |
|
Factor |
0.2~1.0 |
±0.02 |
0.001 |
|
frequency |
5Hz~1kHz |
±0.2 Hz |
0.1Hz |
