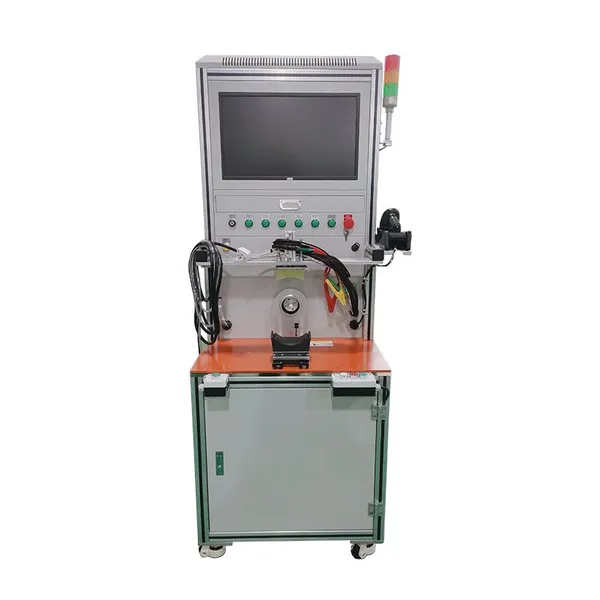

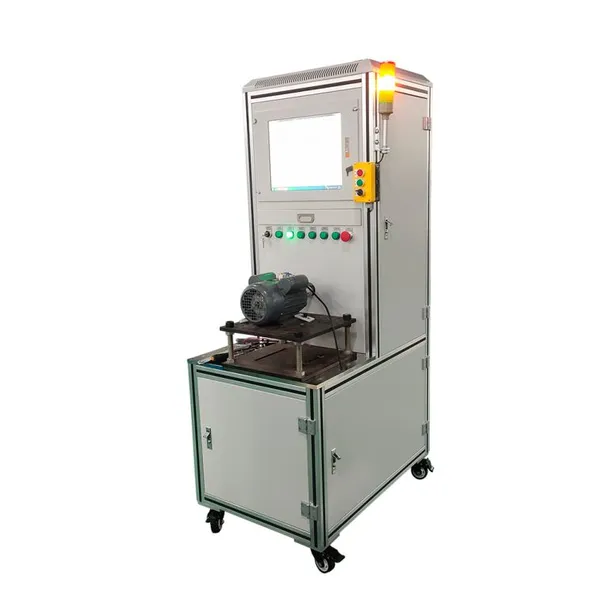

The power tool motor test bench is a specialised performance testing device designed specifically for the motors of various hand-held power tools. It is widely used for factory quality control and R&D testing of DC and AC series-wound motors found in tools such as electric drills, angle grinders, cutters, polishers, blow dryers and impact drills. The equipment employs a centralised industrial PC control architecture, combined with high-precision electrical parameter acquisition, dynamic torque and speed measurement, and a load simulation system, enabling the simulation of real-world operating conditions such as actual loaded, no-load and stalled motor conditions. The entire system features a high degree of automation and standardised testing procedures, meeting the needs of enterprises for batch factory acceptance testing, new product performance calibration, process improvement validation and batch quality control. It serves as a core quality inspection support system for power tool motor manufacturers.
Core Test Items:
-
Electrical Performance Testing: Precisely measures the motor’s three-phase/single-phase DC resistance, insulation resistance, withstand voltage to earth, and inter-turn insulation performance, effectively identifying production defects such as coil short circuits, open circuits, poor insulation, and winding process anomalies.
-
No-Load Performance Testing: Tests the motor’s no-load speed, no-load current, no-load losses, operating noise, and no-load vibration to determine whether the motor’s no-load operation is stable and compliant.
-
Load Performance Testing: By applying precise servo-controlled loads to simulate various working conditions, this test collects data on operating current, input power, output torque, output speed and overall efficiency, and plots the motor’s mechanical characteristic curve.
-
Locked-Rotor Performance Testing: Supports the measurement of locked-rotor current and torque to verify the motor’s maximum load-bearing capacity and structural reliability, in accordance with the power tool industry’s factory sampling inspection standards.
Durability and Operating Condition Simulation Testing: Tests can be configured for timed operation, cyclic start-stop, and variable load conditions to verify the motor’s stability during continuous operation and its service life, supporting reliability validation in R&D.
Key Product Advantages:
1. Wide range of compatible product categories and high versatility
The equipment is designed for motor types commonly used in power tools, such as series-wound motors, brushless DC motors and permanent magnet motors. It is compatible with hand-held tool motors of varying power ratings and rotational speeds; a single unit can meet the testing requirements for multiple product categories, thereby reducing equipment procurement costs.
2. Precise Test Data with Stable Repeatability
The system is equipped with high-precision electrical parameter modules and dynamic torque acquisition components, offering high sampling accuracy and strong resistance to workshop frequency fluctuations and high-frequency interference. Test data exhibits minimal variation and excellent consistency, meeting enterprises’ requirements for routine quality inspection and type testing.
3. Fully Automated Testing, Suitable for Mass Production Lines
The equipment supports one-button automated testing; a single connection is sufficient to complete a full suite of electrical, mechanical and performance tests. The system automatically collects data, determines pass/fail status and stores test records, thereby reducing human error and enhancing the efficiency of batch testing.
4. Operational condition simulation tailored to real-world usage scenarios
Utilising a servo-driven dynamic loading structure, the system allows for smooth adjustment of load levels to simulate actual operational conditions such as grinding, cutting and drilling. This accurately reflects the motor’s performance during real-world use, providing effective data support for product optimisation.
5. Data Traceability and Customisable Reports
The system supports data entry via product number or barcode scanning, automatically storing test data and performance curves for each batch, and enabling data queries, exports and printing. Report templates can be customised according to the company’s quality inspection standards, facilitating factory audits and quality ledger management.
Scope of Application:
This equipment is suitable for manufacturers of various hand-held power tools, including cordless drills, angle grinders, cutters, polishers, hair dryers, electric saws and impact wrenches. It is primarily used for spot checks on semi-finished motor components, 100% outgoing inspection of finished products, performance calibration during new product development, testing for motor process improvements, and batch quality consistency control. It is widely used in power tool quality inspection workshops, corporate R&D laboratories and third-party testing facilities.
Support Services:
The equipment supports bespoke customisation based on motor power, speed range and test procedures, and can be adapted to align with a company’s existing production processes and quality inspection standards. The manufacturer provides video guidance on installation and commissioning, hands-on training for operators, long-term technical support and after-sales maintenance services, ensuring the stable operation of the equipment and helping companies standardise their product quality control systems.
