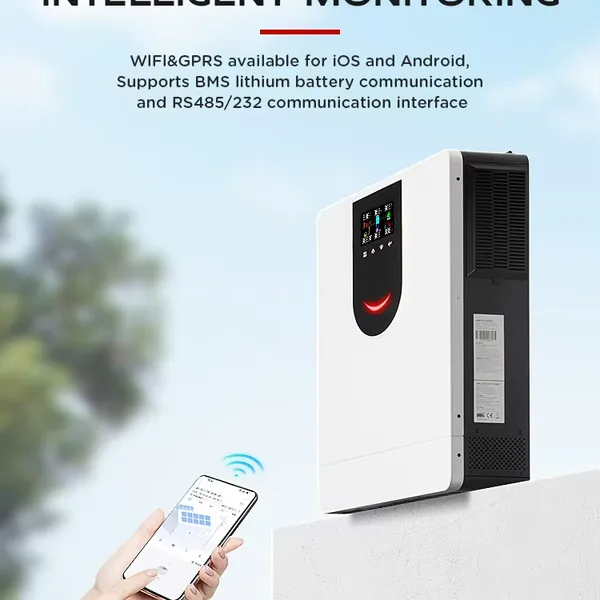

11kVA Off-Grid Solar Inverter 230VAC, Wide Input Voltage 90-280VAC for Home Appliances, Surge 11000VA, PC Mode 170-280V – Perfect for Unstable Grid Areas
Specification
Model |
LP-3K24V |
LP-5.5K48V |
RATED POWER |
3000VA/3000W |
5500VA/5500W |
Input | ||
Voltage |
230VAC |
|
Selectable Voltage Range |
170-280VAC(For Personal Computers) |
|

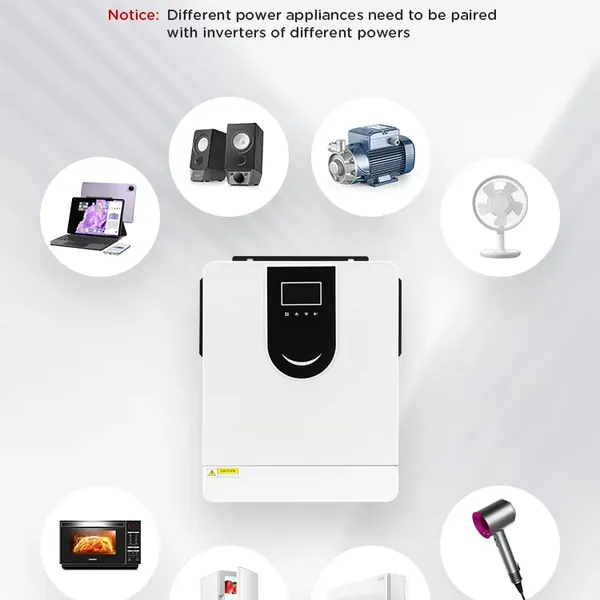

90-280VAC(For Home Appliances) |
||
Frequency Range |
50Hz/60Hz(Auto sensing) |
|
OUTPUT | ||
AC Voltage Regulation(Batt.Mode) |
230VAC±5% |
|
Surge Power |
6000VA |
11000VA |
Efficiency(Peak) |
Up to 93.5% |
|
Transfer Time |
10ms(For Personal Computers):20ms(For Home Appliances) |
|

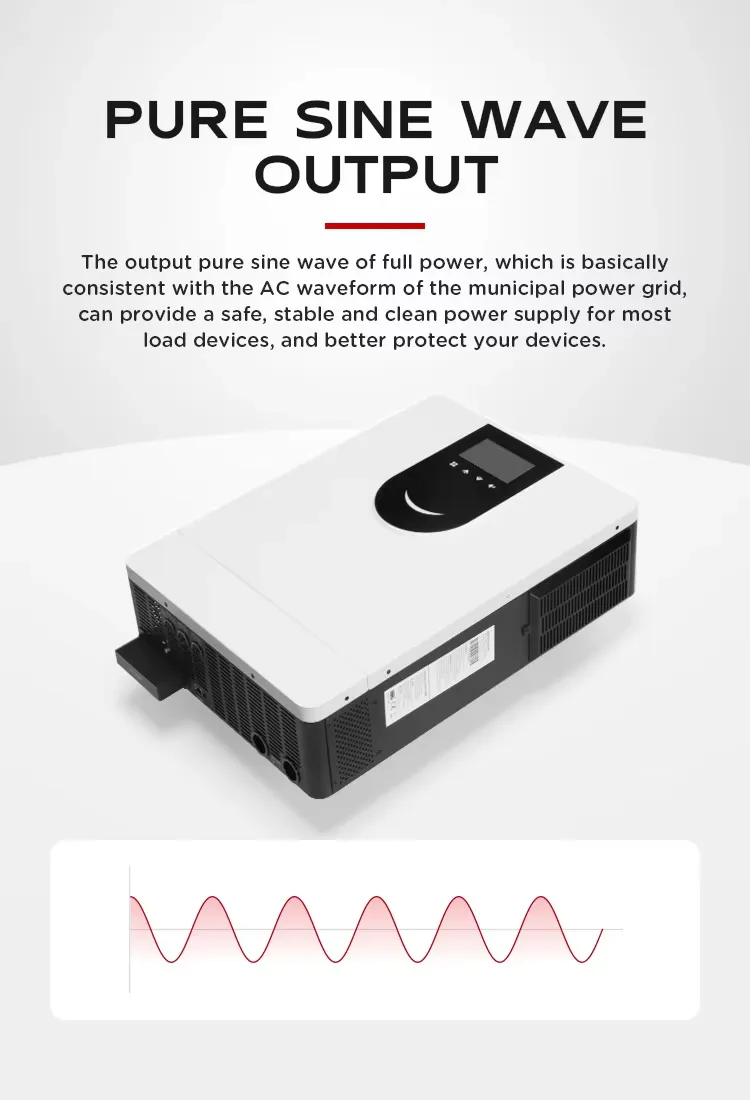

Waveform |
Pure Sine Wave |
|
BATTERY | ||
Battery Voltage |
24VAC |
48VDC |
FLoating Charge Voltage |
27VDC |
54VDC |
Overcharge Protection |
33VDC |
63VDC |
SOLAR CHARGER & AC CHARGER | ||
Maximum PV Array Open Circuit Voltage |
450VDC |
450VDC |
Maximum PV Array Power |
5500W |
5500W |
MPPT Range @ Operating Voltage |
120~430VDC |
120~430VDC |
Maximum Solar Charge Current |
100A |
100A |
Maximum AC Charge CUrrent |
80A |
80A |
Maximum Charge Current |
100A |
100A |
PHYSICAL | ||
Dimension,D*W*H(mm) |
100*300*400 |
|
Net Weight (kgs) |
9 |
10 |

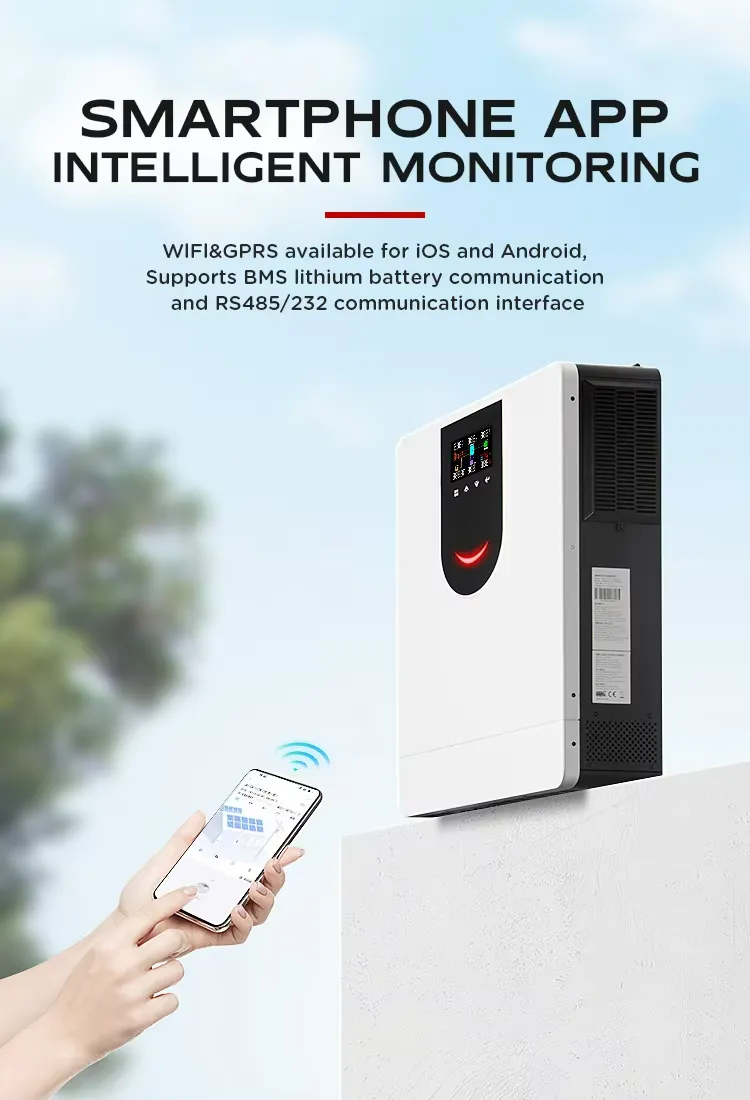

Communicaton interface |
USB/RS232 |
|
ENVIRONMENT | ||
Mumidity |
5% to 95% Relative Humidity(Non-condensing) |
|
Operating Temperature |
-10℃ to 50℃ |
|
storage temperature |
-15℃ to 60℃ |
|
