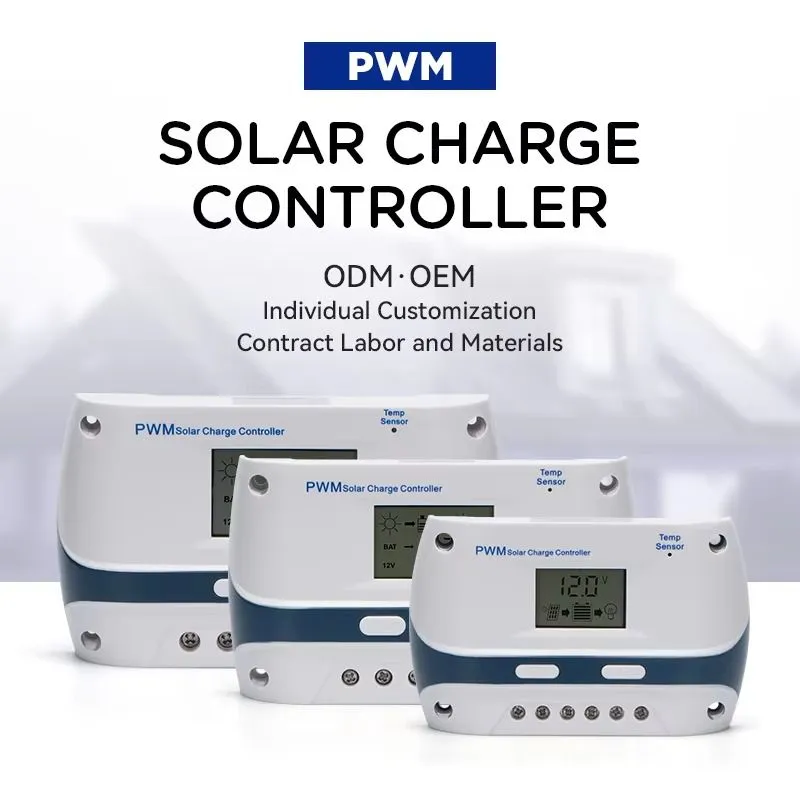

High Efficient PWM Charging Solar Panel Charge Controller Local Market Strategy Controller Manufacturers

High Efficient PWM Charging Solar Panel Charge Controller Local Market Strategy Controller Manufacturers thumbnail-1
High Efficient PWM Charging Solar Panel Charge Controller Local Market Strategy Controller Manufacturers thumbnail-2
High Efficient PWM Charging Solar Panel Charge Controller Local Market Strategy Controller Manufacturers thumbnail-3
High Efficient PWM Charging Solar Panel Charge Controller Local Market Strategy Controller Manufacturers thumbnail-4
High Efficient PWM Charging Solar Panel Charge Controller Local Market Strategy Controller Manufacturers thumbnail-5
High Efficient PWM Charging Solar Panel Charge Controller Local Market Strategy Controller Manufacturers photo-1
High Efficient PWM Charging Solar Panel Charge Controller Local Market Strategy Controller Manufacturers photo-2
High Efficient PWM Charging Solar Panel Charge Controller Local Market Strategy Controller Manufacturers photo-3
High Efficient PWM Charging Solar Panel Charge Controller Local Market Strategy Controller Manufacturers photo-4
High Efficient PWM Charging Solar Panel Charge Controller Local Market Strategy Controller Manufacturers photo-5

Product Spotlights

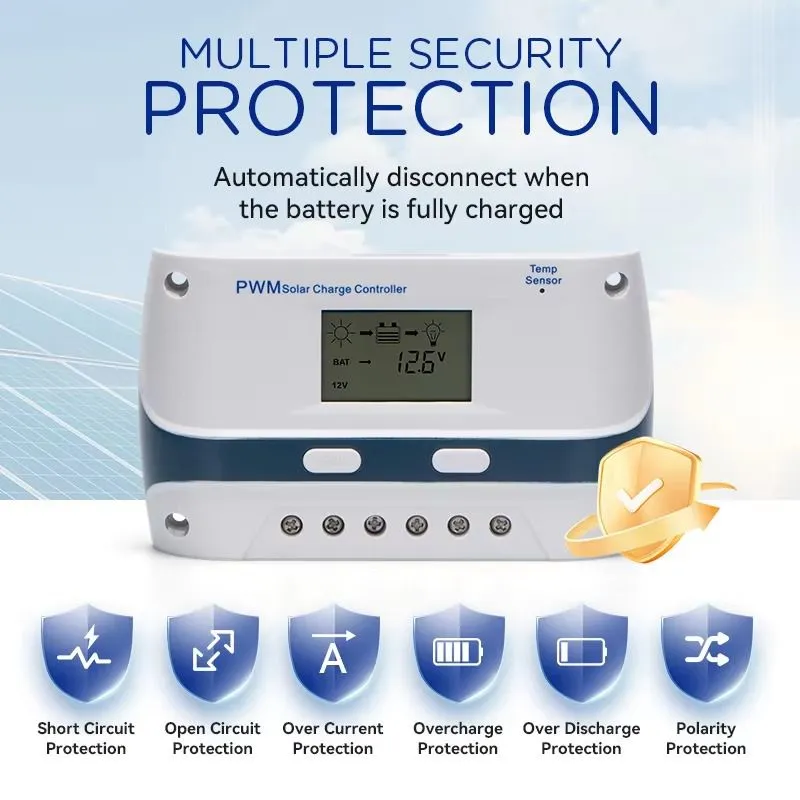

Battery type selection:Sealed,Gel,Flooded and use; USB 5V/1A output, charge the electronic devices(10-20A); Solar panel,battery reverse polarity protection; Reverse current protection and short circuit protection of USB output.
US$ 3.8 - 129 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Certification:
API, ISO, CB, CE
Warranty:
1
Application:
Collector Controller, Water Heater Controller, Solar System Controller, Charger Controller, Lighting Controller, Wind Controller, Solar Working Station, Voltage Controller, Thermal Controller
Contact Supplier Request Quote Chat Now
Guangzhou Lanto Power Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
10 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Certification API, ISO, CB, CE
Warranty 1
Application Collector Controller, Water Heater Controller, Solar System Controller, Charger Controller, Lighting Controller, Wind Controller, Solar Working Station, Voltage Controller, Thermal Controller
Rated Voltage 24V
Condition New
Product name PWM solar panel charge controller
PV voltage ≤100v
Rated Charge current 10A/20A/30A/40A/50A/60A/80A/100A
Rated Discharge current 10A 20A 30A 40A 50A 60A N/A
Rated system voltage 12V/24V/36V/48V Auto
Charge mode PWM Multi-stage(bulk.absorption.float.eq
Float charge voltage 13.8v(13v-15v)x1/x2/x3/x4
Absorption voltage 14.4v(13v-15v)x1/x2/x3/x4,(lasting:2hrs)
Light control voltage 5v(1v-10v)x1/x2/x3/x4
Weight 355g/360g/395g/562g/701g/360g/395g/562g/
Charge circuit voltage drop  <0.21v
Origin Guangdong, China

High efficient PWM Charging Solar Panel Charge Controller Local Market Strategy Controller Manufacturers


Model

LP-SK10DU

LP-SK20DU

LP-SK30D

LP-SK40D

LP-SK50D

LP-SK60D

LP-SK80D

LP-SK100D

PV voltage

≤100v

Rated Charge current

10A

20A

30A

40A

50A

60A

80A

100A

Rated system voltage

12V/24V/36V/48V Auto

Rated Discharge current

10A

20A

30A

40A

50A

60A

N/A

Charge mode

PWM Multi-stage(bulk.absorption.float.equalized)

Float charge voltage

13.8v(13v-15v)x1/x2/x3/x4

Absorption voltage

14.4v(13v-15v)x1/x2/x3/x4,(lasting:2hrs)

Equalized voltage

 14.6v(13v-15v)x1/x2/x3/x4,(lasting:2hrs)

HVD voltage

 16.0v(13v-15v)x1/x2/x3/x4

HVR voltage

15.5v(13v-15v)x1/x2/x3/x4

LVD  voltage

                                   10.7v(10v-14v)x1/x2/x3/x4

 N/A

LVR voltage

                                   12.6v(10v-14v)x1/x2/x3/x4

 N/A

Working mode for load

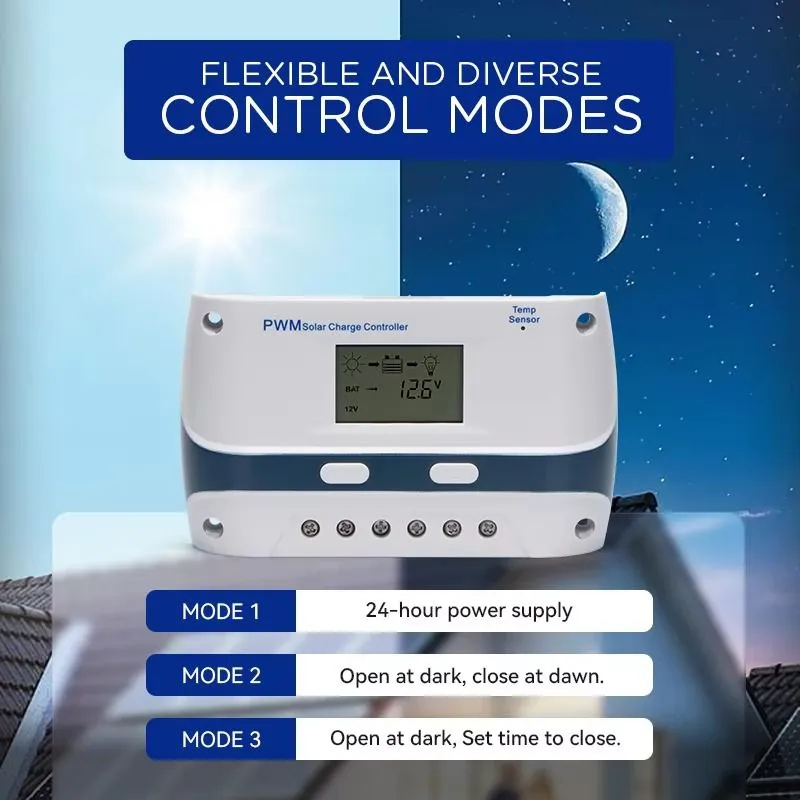

light control,time &light control,normal model.self-timing switch on/off mode light control with switch on after and switch off before dawn

Light control voltage

5v(1v-10v)x1/x2/x3/x4

Charge circuit voltage drop

Discharge circuit voltage drop

N/A

No load loss

≤14mA

 N/A

USB output

5v/1A

 N/A

Battery type

GEL,SLD,FLE,Usr(default)

Installing cable size

≤6mm2

≤16mm2

 ≤25mm2

Working temperature

-20℃-55℃

Dimension(mm)

188x95x46.5

196x111x54

188x125x46.5

188x95x56

188x95x46.5

196x111x54

188x125x48.5

Weight

    355g

360g

395g

562g

701g

360g

395g

562g

1_-from-avif.jpg.webp3_-from-avif.jpg.webp4_-from-avif.jpg.webp5_-from-avif.jpg.webp6_-from-avif.jpg.webp



For more information, pls contact my whatsapp: https://wa.me/13435253312

Welcome to discuss it with us together!
