Overview

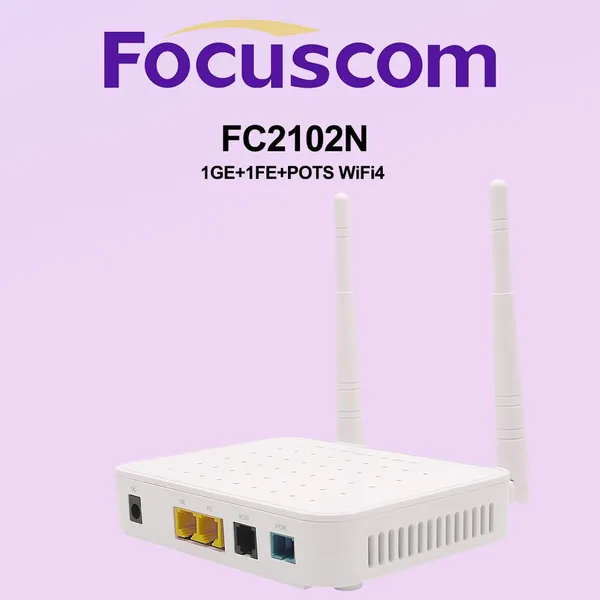

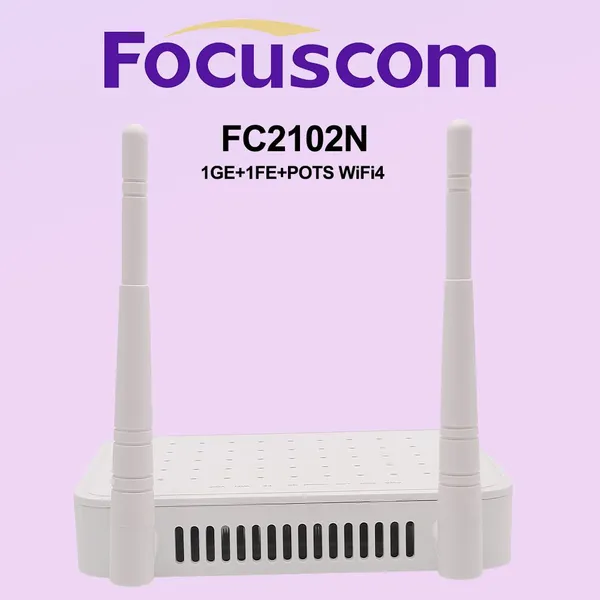

The FC2102N is a high-performance GPON/EPON ONU designed for FTTX deployment in home and small office scenarios. It features 1 Gigabit Ethernet port, 1 Fast Ethernet port, 1 VoIP FXS port (RJ11), and WiFi4 (2.4GHz, 300Mbps). With built-in Class B+ optical module, it supports transmission distances up to 20km. The device complies with IEEE802.3ah and ITU-T G.984 series standards, ensuring interoperability with major OLTs. It is ideal for triple-play services (voice, data, video) and offers robust security, QoS, and remote management capabilities.
Key Features
Optical Interface: SC/UPC or SC/APC, Class B+, TX power 0.5~5dBm, RX sensitivity -28dBm
PON Modes: GPON (Up 1.25G / Down 2.5G) & EPON (Up 1.25G / Down 1.25G)
Ethernet Ports: LAN1 (10/100/1000Mbps), LAN2 (10/100Mbps), auto-negotiation
VoIP: RJ11 FXS, supports G.711a/u, G.729a/b, G.722, call waiting, call forwarding, three-party call
WiFi4: 2.4GHz, 300Mbps, 5dBi antenna, WPA/WPA2/WPA3, WMM, WDS, Mesh support (router version)
Hardware: 128MB Flash, 256MB Memory, power consumption
L2/L3 Features: VLAN (1-4094), MAC learning, PPPoE/Static IP/DHCP, NAT, DDNS, IPv4/IPv6 dual stack
Security: Anti-DOS, Anti-port scan, Anti-SYN flood, Anti-Land/Smurf/Winnuke
Multicast: IGMP v2/v3 snooping & proxy, MLDv1
Management: WEB UI, TR069, Telnet/SSH, OMCI, dual-system backup, HTTP upgrade
Environment: Operating temp -5~45°C, humidity 5%~95% (non-condensing)
Certifications: RoHS, CE, CCC
Dimensions: 139×132×28mm, weight 0.20kg
Purchase Info
| Model Number | Description |
|---|---|
| FC2102N | 1×GE + 1×FE + 1×VoIP + WiFi4 (2.4GHz) + GPON/EPON ONU. Includes power adapter, RJ45 cable, RJ11 cable. |
For bulk orders, OEM/ODM customization, or firmware version requirements (e.g., Mesh support), please contact Focuscom sales.
