Overview

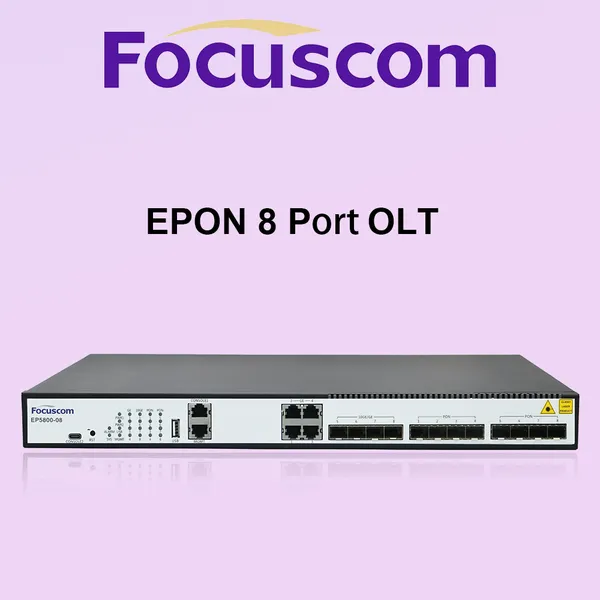

The Focuscom EP5800-08 is a compact, high-density 1U "Pizza Box" EPON OLT. It meets the IEEE802.3ah standard and is ideal for FTTx broadband access, smart grid systems, and enterprise campus networks. Its modular power design and Layer 3 management capabilities provide ISPs with a cost-effective yet carrier-grade solution.
Key Technical Specifications
PON Ports: 8 * EPON ports (SFP Slots).
Uplink Interfaces: 4 * 10GE SFP+ ports + 4 * GE RJ45/SFP Combo ports.
Subscriber Capacity: Supports up to 512 ONUs (1:64 splitting).
Switching Capacity: 128Gbps backplane for non-blocking wire-speed forwarding.
Management: Comprehensive support for Web GUI, CLI (Telnet/SSH), SNMP, and NMS.
L3 Features: Static Route, RIP, OSPF, and BGP support.
Core Advantages
Ultra-Reliable Redundancy: Equipped with dual-power slots supporting AC (100V-240V) and DC (-48V) inputs. This ensures zero downtime during power maintenance.
Superior Scalability: The 4*10G SFP+ uplink ports provide massive bandwidth, preventing bottlenecks even as your user base grows.
High Interoperability: Fully compatible with mainstream ONU brands, allowing for flexible network deployment.
Advanced Security: Includes ACL, Storm Control, and IP-MAC-Port Binding to protect your infrastructure from external attacks.
Application Scenarios
FTTH/FTTB: High-speed internet delivery for residential buildings.
CCTV Surveillance: Stable fiber backhaul for city-wide security cameras.
Hotel/Campus Wi-Fi: Centralized management for large-scale wireless networks.
