Product Overview

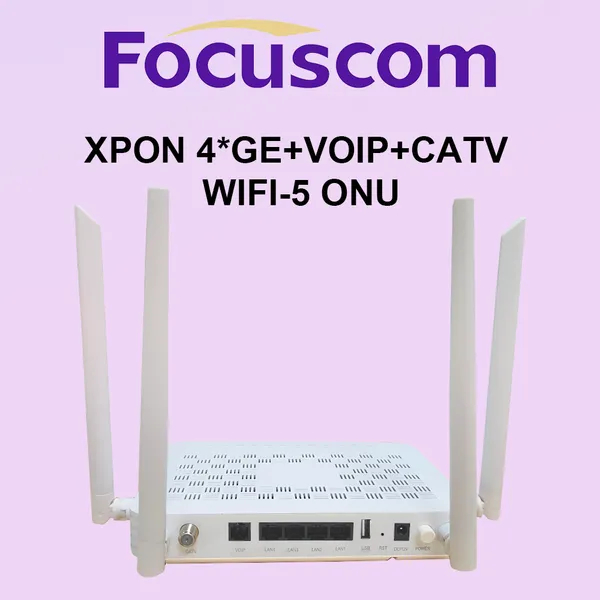

The Focuscom FC2104C-T is a premier Triple-Play XPON ONU designed to deliver high-speed data and high-quality video services over a single fiber. It combines the power of AC1200 Dual Band WiFi 5 with an integrated CATV/RF interface, making it the ultimate terminal for modern smart homes. Whether for 4K video streaming, online gaming, or traditional cable TV, the FC2104C-T ensures a seamless user experience.
Key Technical Specifications
PON Interface: 1 * XPON port (Auto-adaptive GPON/EPON).
WiFi Performance: 802.11ac WiFi 5 (867Mbps on 5GHz + 300Mbps on 2.4GHz).
CATV Interface: 1 * RF Output port with AGC (Auto Gain Control).
LAN Interface: 1 * 10/100/1000Mbps GE port + 3 * 10/100Mbps FE ports.
Antennas: 4 * 5dBi external high-gain antennas for 360° coverage.
Wavelengths: Data (1310nm/1490nm), CATV (1550nm).
Management: OMCI, OAM, Web, TR-069, and Telnet support.
Core Advantages
Integrated Service Delivery: Combines high-speed internet and CATV into one compact device, reducing the need for multiple boxes and messy cabling at the customer's home.
Superior WiFi 5 Connectivity: Dual-band technology reduces interference, allowing multiple devices to connect simultaneously for bandwidth-heavy tasks like HD streaming.
Advanced CATV Management: The built-in AGC technology maintains a stable RF output level even with fluctuating optical input, ensuring clear TV picture quality.
Carrier-Grade Security: Supports advanced firewall features, VLAN isolation, and MAC/IP filtering to protect the user's network.
Simplified Deployment: XPON auto-discovery and remote configuration via OLT/TR-069 significantly lower on-site installation and maintenance costs.
Application Scenario
ISP Triple-Play: Delivering data, WiFi, and TV services via FTTH.
Digital Home: Central hub for smart home devices and home entertainment.
Hotel/Campus Networks: Efficient distribution of internet and cable TV signals over a fiber infrastructure.
