Overview
The Focuscom EP5800-04 is a high-performance, carrier-grade EPON OLT designed for small to medium-sized ISP networks. Its compact 1U design (Pizza Box) makes it perfect for deployment in limited rack spaces without sacrificing power. It fully complies with IEEE802.3ah and YD/T 1475-2006 standards.
Technical Specifications
PON Ports: 4*EPON Ports (1.25Gbps symmetric speed)
Uplink Ports: 410G SFP+ slots for high-speed backbone connection + 4GE RJ45/SFP Combo ports.
Subscriber Capacity: Supports up to 256 ONUs (1:64 split ratio).
Layer 3 Features: Supports Static Route, RIP, OSPF, and IPv6.
Security: Integrated Firewall, ACL, and Broadcast Storm Control.
Redundancy: Dual Hot-Swappable Power Supplies (AC 100~240V and DC -48V).
Core Advantages
High Bandwidth Uplink: Unlike standard 1G OLTs, the EP5800-04 features four 10G SFP+ ports, providing a future-proof path for bandwidth-hungry users.
Flexible Management: Operators can easily configure the system via a user-friendly Web GUI, or utilize CLI/Telnet/SSH for advanced engineering tasks.
Advanced L2/L3 Switching: Includes VLAN, QoS, Multicast (IGMP Snooping), and advanced routing protocols to ensure smooth IPTV and VoIP services.
Stable & Reliable: Built with industrial-grade components to handle a wide range of operating temperatures, ensuring 24/7 network uptime.
Application Scenarios
FTTH (Fiber to the Home): Providing ultra-fast internet for residential areas.
FTTB (Fiber to the Building): Ideal for office buildings and multi-dwelling units (MDU).
Smart City Surveillance: High-stability backhaul for IP camera networks.
Visual Content Suggestions (For your 5+ Images)

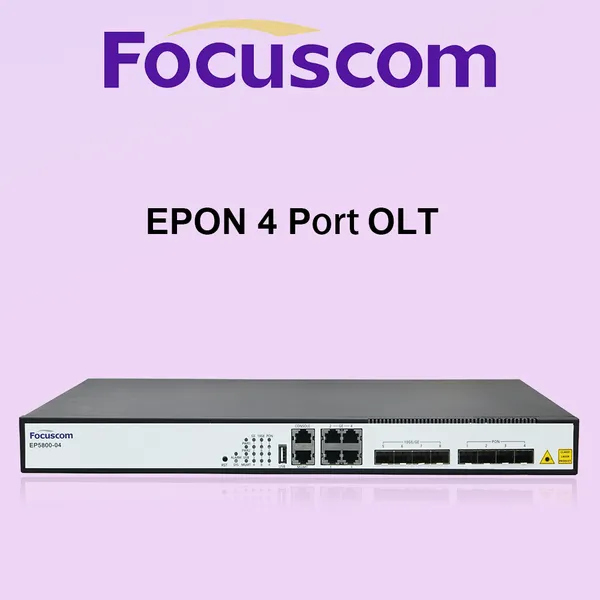

Image 1: Front view of EP5800-04 showing the 4 PON and 4 10G SFP+ ports.
Image 2: Close-up of the Dual Power modules at the rear.
Image 3: Network Architecture Diagram (OLT connecting to ONUs).
Image 4: Screenshot of the Web Management Interface.
Image 5: Package contents (OLT unit, Power cords, Rack-mount ears, Console cable).
