CIPP UV Spot Repair System With LED Curing for Pipe Rehabilitation
Product Spotlights
This CIPP UV Spot Repair System features rapid LED curing for fast, trenchless pipe rehabilitation. It enables precise, localized repairs within minutes, reducing excavation costs and site disruption. Built with a mobile, robust design and intelligent PLC control, it ensures consistent, safe, and durable results for various pipe materials, enhancing contractor productivity and project ROI.
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Curing Method:
LED UV Curing
Application:
Localized Pipe Rehabilitation
Repair Diameter Range:
Customizable upon request
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
30 days
Related Products
-
UV CIPP Liner Machine for Underground Sewer Pipe Trenchless Rehabilitation WorkNegotiableMOQ: 1 Set -
Trenchless Sewer Rehabilitation System for Spot Repair Using UV Curing TechnologyNegotiableMOQ: 1 Set
-
High Efficiency CIPP Felt Liner Machine for Pipe Rehabilitation SuppliersNegotiableMOQ: 1 Set
-
UV CIPP Liner Installation Equipment for Pipe Renovation With Fast CuringNegotiableMOQ: 1 Set
-
Fast Curing UV LED Short Liner Repair Equipment for Pipe RehabilitationNegotiableMOQ: 1 Set
Curing Method
LED UV Curing
Application
Localized Pipe Rehabilitation
Repair Diameter Range
Customizable upon request
Power Source
Electric
Control System
Programmable Logic Controller (PLC)
Portability
Compact and mobile design
Safety Features
Overheat protection, emergency stop
Compatibility
Works with standard CIPP liners
As a leading manufacturer specializing in pipeline rehabilitation solutions since 2010, Qingdao Yongke Machinery Co., Ltd. proudly presents our advanced CIPP UV Spot Repair System. Engineered for precision and efficiency, this system revolutionizes the way localized pipe defects are addressed, offering a trenchless, reliable, and rapid curing solution. By integrating high-intensity LED UV technology, we provide contractors and municipalities with a powerful tool to extend pipeline service life while minimizing disruption and operational costs. Our commitment to innovation and quality ensures this system delivers exceptional performance in the demanding field of infrastructure maintenance.

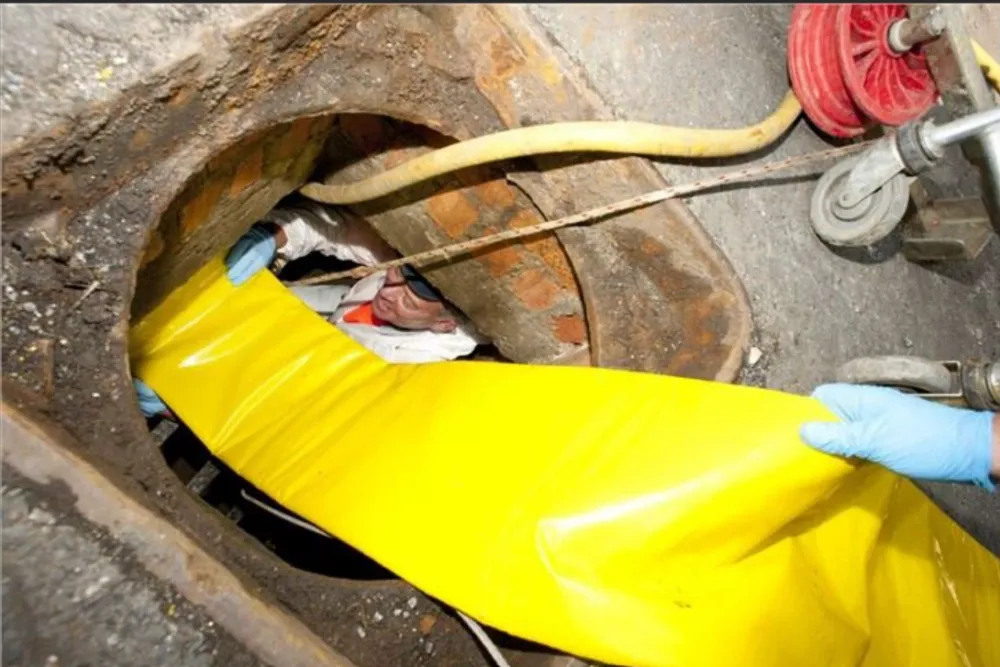

Our CIPP UV Spot Repair System is designed to tackle specific, isolated problems within pipelines without the need for extensive excavation. The core of the system is its state-of-the-art LED UV curing unit, which activates the resin in the CIPP liner material to create a strong, durable, and seamless patch inside the host pipe.
- High-Efficiency LED UV Curing: The system utilizes powerful LED lamps that emit UV light at optimal wavelengths for curing standard resins. LEDs offer instant on/off capability, consistent light output, and lower energy consumption compared to traditional mercury-vapor lamps, leading to faster cure times and reduced power costs on-site.
- Precision Spot Repair: Targeted for defects such as cracks, holes, joint misalignments, or root intrusions over short distances (typically 1-3 meters). This focused approach saves material and time compared to full-length pipe lining.
- Rapid Cure Cycle: The high-intensity UV light triggers a photochemical reaction in the thermosetting resin, causing it to harden in a matter of minutes. This allows for quick return-to-service, often within hours of the repair process beginning.
- Robust and Mobile Design: The main control unit and lamp assembly are built on a sturdy, wheeled chassis for easy transport around job sites. Its compact form factor allows access to confined spaces typical in municipal and industrial settings.
- Intelligent Control System: Features a user-friendly interface, often with a Programmable Logic Controller (PLC), allowing operators to set and monitor curing parameters like light intensity and exposure time precisely, ensuring a consistent and reliable cure every time.
- Enhanced Safety: Equipped with essential safety mechanisms including overheat protection, emergency stop buttons, and status indicators. LED technology also operates at lower temperatures and contains no hazardous mercury, making it a safer choice for workers and the environment.
Technical Specifications Overview:
| Parameter | Description |
| Curing Technology | High-Power LED UV Array |
| Typical Cure Time | 3-10 minutes (varies with resin & diameter) |
| Power Requirement | 220V/380V AC, customizable |
| Control Interface | Touchscreen PLC with programmable profiles |
| Lamp Head Diameter | Available in sizes to match common pipe IDs |
| Mobility | Integrated wheels and handles |
Benefits for Your Business:
- Cost-Effective Repairs: Eliminates the high cost of excavation, surface restoration, and traffic management associated with traditional dig-and-replace methods.
- Minimal Disruption: Trenchless technology means work can often proceed with little to no impact on above-ground activities, a critical advantage in urban areas.
- Long-Lasting Results: Creates a structurally independent, corrosion-resistant patch that bonds to the host pipe, effectively sealing the defect for decades.
- Operational Flexibility: The quick setup and cure cycle enable your crew to complete multiple spot repairs in a single day, maximizing productivity.
- Reduced Environmental Impact: Less waste generation, lower energy use, and no need for heavy machinery contribute to a greener rehabilitation process.
Backed by over a decade of manufacturing expertise from our 10,000-30,000 square meter facility and a dedicated team of 51-100 professionals, Qingdao Yongke Machinery stands as a reliable partner in the global infrastructure market. Our systems, manufactured under the ISO9001, ISO14000, and OHSAS18001 management frameworks, are trusted by clients across North America, South America, Europe, Asia, Africa, and Oceania. With an annual export value ranging between US$1 Million and US$1.5 Million, we have a proven track record of delivering quality and performance. Choosing our CIPP UV Spot Repair System means investing in a solution that enhances your service capabilities, reduces long-term maintenance liabilities, and provides a clear return on investment through efficient, durable repairs.
Frequently Asked Questions (FAQ)
-
What types of pipe defects is this system best suited for?
This system is ideal for localized issues like circumferential cracks, leaking joints, small holes, or localized corrosion. It is not intended for full-length pipe replacement or severe, continuous structural damage. -
How does LED UV curing compare to other methods like hot water or steam?
LED UV curing is significantly faster, often curing in minutes versus hours. It is also more energy-efficient, provides consistent heat-free curing (reducing thermal stress), and offers precise control over the process. -
Can this system be used in pipes of different materials?
Yes, the trenchless spot repair method is applicable to various host pipe materials including PVC, clay, concrete, cast iron, and some plastics, as long as the liner material is compatible. -
What is the typical operational lifespan of the LED lamps?
The LED UV lamps are designed for long service life, often exceeding 10,000 hours of operation, which translates to lower long-term maintenance and replacement costs compared to traditional bulbs. -
Is operator training required?
While the system is designed for user-friendly operation, we recommend comprehensive training for your crew on system setup, safety protocols, and curing parameter selection to ensure optimal results and safety. -
Do you provide compatible liner materials?
We primarily manufacture the curing equipment. The specific UV-curable CIPP liner felt and resin are typically sourced separately to match project requirements, but we can offer guidance on compatible products. -
What are the main power requirements on a job site?
The system typically requires a standard industrial power supply (220V or 380V AC). It's advisable to have a stable generator or mains connection capable of handling the rated load, details of which are provided in the manual. -
How do I determine the right lamp head size for my project?
The lamp head diameter should be selected based on the internal diameter (ID) of the pipe being repaired. We offer various sizes, and our technical team can assist in selecting the appropriate configuration based on your project specifications.
