As a leading manufacturer with over a decade of experience, Qingdao Yongke Machinery is proud to introduce our advanced PLC Controlled HDPE Helical Winding Machine. Engineered for the high-volume production of large-capacity storage tanks, this machine represents the convergence of precision engineering and automated control. Our commitment, backed by ISO9001, ISO14000, and OHSAS18001 certifications, ensures every unit delivers the reliability and performance demanded by the global market. Designed for manufacturers aiming to scale their operations, this machine transforms HDPE material into robust, seamless tanks with remarkable efficiency and consistency.
The core of this machine is its intelligent PLC control system, which automates the entire helical winding process. This eliminates manual errors and ensures repeatable, high-quality production runs. Operators can program parameters such as winding speed, pitch, and layer thickness, allowing for quick changeovers between different tank specifications. The machine is built around a heavy-duty steel frame, providing the stability required for handling large mandrels and the substantial forces involved in winding thick HDPE sheets.
Key Technical Specifications & Advantages:
- Precision Winding: The helical path is controlled with sub-millimeter accuracy, resulting in tanks with uniform wall thickness and superior structural integrity.
- Integrated Heating: A precisely controlled heating system prepares the HDPE strip edges, ensuring a strong, homogenous fusion weld as the layers are wound.
- High Output Capacity: Engineered for continuous operation, it significantly increases production throughput compared to manual or semi-automatic methods.
- Material Efficiency: Optimized winding algorithms minimize material waste, contributing to lower production costs.
- Operational Safety: Features multiple safety interlocks, emergency stop functions, and guarded moving parts, aligning with OHSAS18001 standards.
Technical Parameters Table:
| Parameter | Specification / Range |
| Max. Tank Diameter | Up to 4000 mm (customizable) |
| Max. Tank Length | Up to 15000 mm (customizable) |
| HDPE Strip Width | 100 - 250 mm (typical) |
| Winding Speed | 0 - 2.5 m/min (programmable) |
| Control System | Industrial-grade PLC with Touchscreen HMI |
| Power Requirement | 380V / 50Hz / 3Phase (configurable) |
| Machine Footprint | Approx. 20m (L) x 8m (W) (subject to configuration) |

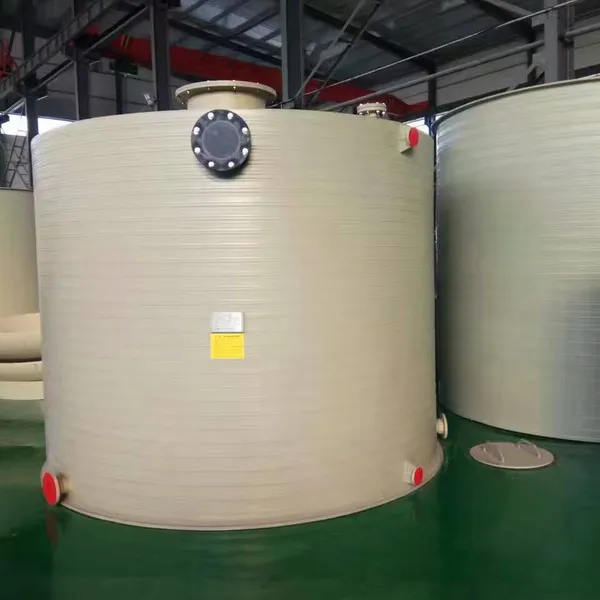

For our clients, the benefits are substantial. This machine enables the production of large, monolithic tanks without longitudinal seams, which are potential failure points. The automated process reduces labor dependency and training time, while the PLC system stores recipes for different tank models, slashing setup times. The resulting tanks are ideal for storing water, chemicals, agricultural products, and industrial fluids, meeting the growing demand for reliable, large-volume storage solutions across sectors like agriculture, mining, and wastewater treatment.
Trust in Qingdao Yongke Machinery is built on a solid foundation. Operating from a 10,000-30,000 square meter facility with a dedicated team of 51-100 employees, we have the capacity and expertise to deliver. Our consistent annual export value of US$1-1.5 Million to diverse markets including North America, Europe, Southeast Asia, and Africa is a testament to the global acceptance of our machinery's quality and performance. Choosing our PLC Controlled HDPE Helical Winding Machine is not just purchasing equipment; it's investing in a partnership with an established manufacturer committed to empowering your production capabilities with efficient, reliable, and advanced technology. Contact us today to discuss how this machine can be tailored to your specific large-capacity tank manufacturing needs.
Frequently Asked Questions (FAQ):
-
Q: What is the main advantage of helical winding over other tank manufacturing methods?
A: Helical winding creates a continuous, spiral seam which distributes stress evenly, resulting in a stronger tank capable of handling higher pressures and volumes, especially for large diameters. -
Q: Can this machine produce tanks with different diameters and lengths?
A: Yes, the machine is highly adaptable. By changing the mandrel (the core around which the tank is wound), and adjusting the PLC program, you can produce a wide range of diameters and lengths to meet various customer specifications. -
Q: What kind of training is provided for operating this automated machine?
A: We provide comprehensive operational training at our facility or at your site. The training covers PLC programming, routine maintenance, troubleshooting, and safety procedures to ensure your team can run the machine effectively. -
Q: Is the machine suitable for materials other than HDPE?
A: The primary design is optimized for HDPE. However, with adjustments to the heating and winding parameters, it may process other thermoplastic polyolefins. Please consult with our engineers for specific material compatibility. -
Q: How does the PLC system improve production quality?
A: The PLC ensures precise control over speed, tension, and heating temperature. This consistency eliminates human variability, guaranteeing every tank has uniform wall thickness and weld strength, leading to higher quality and fewer rejects. -
Q: What is the typical lead time for delivery and installation?
A: Lead time depends on the specific configuration and current order book. Generally, it ranges from 60 to 90 days after order confirmation. We manage shipping from Qingdao port and can arrange expert technicians for installation and commissioning. -
Q: What after-sales support do you offer?
A: Our support includes a standard warranty, readily available spare parts, and remote technical assistance. We have a network of service contacts in our main markets to provide prompt support when needed. -
Q: Can the machine be customized for a fully automated production line?
A: Absolutely. This machine can be integrated with upstream material feeding systems and downstream tank handling equipment (like trimming stations) to create a complete, automated production line, further boosting efficiency.
