As a leading manufacturer with over a decade of experience, Qingdao Yongke Machinery Co., Ltd. specializes in providing robust and efficient HDPE Plastic Spiral Hollow Wall Winding Pipe and Tank Production Machinery. Our equipment is engineered to deliver high-performance, reliable production lines for creating durable pipes and tanks used in critical infrastructure projects worldwide, from drainage and sewer systems to industrial storage and agricultural applications.
This advanced machinery represents a significant investment in productivity and quality for manufacturers. By automating the spiral winding process, it ensures consistent wall thickness, superior structural integrity, and optimal material usage for HDPE products. We understand the demands of the global market, which is why our machines are designed to meet various international standards and adapt to diverse production requirements.
Our commitment extends beyond just selling machines; we provide comprehensive solutions. With a factory spanning 10,000-30,000 square meters and a skilled team of 51-100 professionals, we ensure every piece of equipment is built to last and supported by reliable after-sales service. Let us help you enhance your production capabilities with machinery that combines innovation with proven reliability.
Detailed Product Features & Technical Specifications:

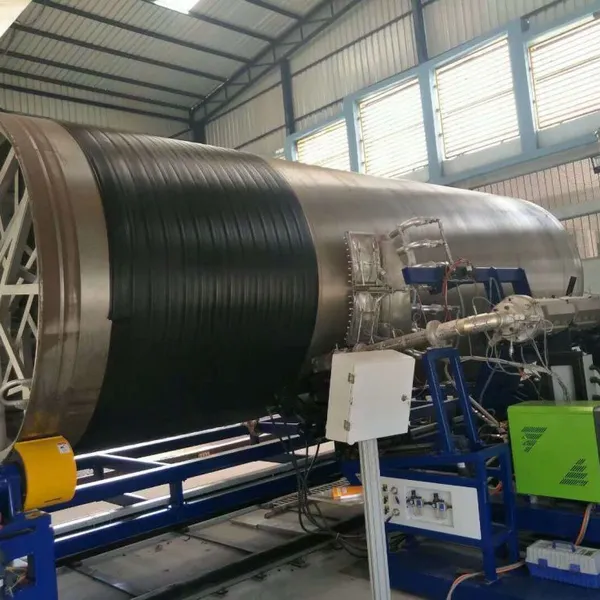

The core of our production line is the precision spiral winding system, which forms the HDPE strip into a continuous, hollow-wall profile. This design offers an excellent strength-to-weight ratio, making the final pipes resistant to corrosion, abrasion, and chemical attack.
- High-Efficiency Extrusion & Winding: Integrated extruder provides consistent HDPE melt, which is then precisely wound onto a mandrel. The synchronized speed control between extrusion and winding is crucial for uniform wall structure.
- Advanced Heating & Fusion: Utilizes controlled hot air or infrared heating to perfectly fuse the overlapping edges of the HDPE strip, creating a monolithic, leak-proof joint without the need for adhesives.
- PLC-Based Intelligent Control: The entire process is managed by a programmable logic controller (PLC) with a user-friendly touch screen interface, allowing for precise parameter setting, recipe storage, and fault diagnosis.
- Modular & Customizable Design: The machinery can be configured for different pipe diameters (typically from 200mm to 4000mm) and wall thicknesses. Options for automatic cutting, socket forming, and tank end-cap welding are available.
- Robust Construction & Safety: The main frame is constructed from high-quality steel for stability and longevity. Safety features include emergency stops, protective guards, and interlocking systems.
Key Technical Parameters:
| Parameter | Description / Range |
| Suitable Material | High-Density Polyethylene (HDPE) |
| Production Pipe Diameter | Customizable (200mm - 4000mm common) |
| Wall Thickness | Adjustable based on strip profile and winding pitch |
| Control System | PLC with Color Touch Screen HMI |
| Heating System | Hot Air / Infrared, adjustable temperature |
| Drive System | Servo Motors or AC Frequency Conversion |
Benefits for Your Business:
- Cost-Effective Production: The hollow-wall design uses less material while maintaining strength, reducing raw material costs. High automation lowers labor requirements.
- Superior Product Quality: Produces pipes and tanks with consistent dimensions, smooth inner walls, and high ring stiffness, suitable for demanding applications.
- Operational Flexibility: Quick changeover between different diameters and the ability to produce both pipes and tanks on the same line maximize your market responsiveness.
- Durability & Low Maintenance: Built with quality components, the machinery ensures high uptime and long service life, minimizing your operational downtime and maintenance costs.
Trust & Performance Backed by Experience
Choosing Qingdao Yongke Machinery means partnering with a certified and experienced supplier. Our operations are managed under ISO9001 (Quality Management), ISO14000 (Environmental Management), and OHSAS18001 (Occupational Health and Safety) systems, reflecting our commitment to quality and responsibility. With an annual export value between US$1 Million and US$1.5 Million, our machinery is trusted by clients across North America, South America, Europe, Asia, Africa, and Oceania. Our substantial factory footprint and skilled workforce enable us to deliver customized solutions on time and provide reliable technical support. Elevate your manufacturing capabilities with machinery that is proven in global markets. Contact us today to discuss your specific requirements and receive a detailed proposal.
Frequently Asked Questions (FAQ)
Q1: What is the main advantage of spiral hollow wall pipes compared to solid wall pipes?
A: Spiral hollow wall pipes offer a superior strength-to-weight ratio. The hollow structure provides high ring stiffness and crush resistance while using significantly less HDPE material, making them more cost-effective and easier to transport and install.
Q2: Can this machinery produce both pipes and storage tanks?

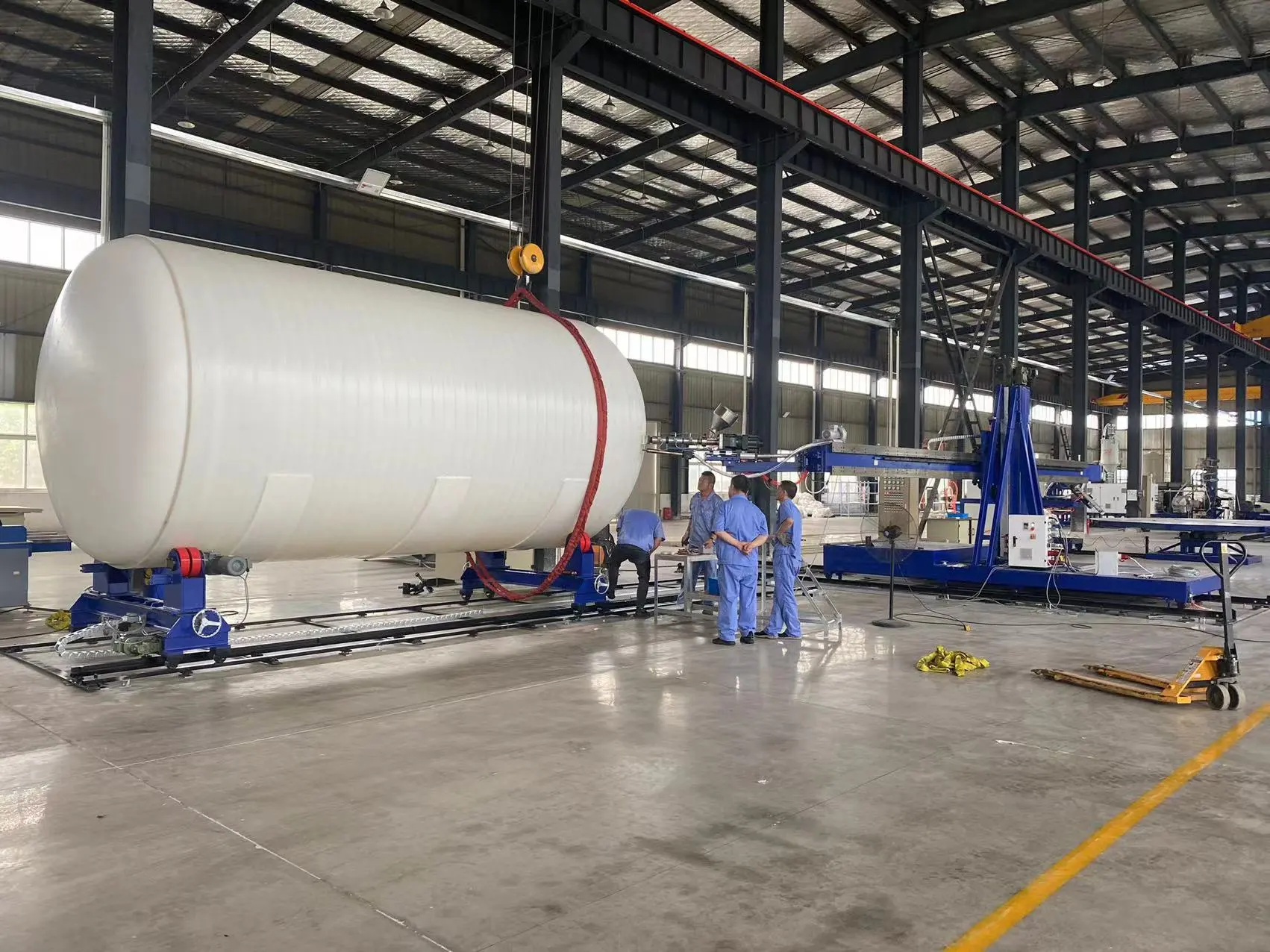

A: Yes, the core spiral winding principle is the same. The production line can be configured to manufacture continuous pipes or large-diameter tanks by adjusting the mandrel and adding end-cap welding stations for tanks.
Q3: What is the typical lead time for a complete production line?
A: Lead time depends on the configuration and customization level. For standard models, it typically ranges from 60 to 90 days after order confirmation, considering manufacturing, assembly, and testing.
Q4: Do you provide installation and operator training services?
A: Yes, we offer professional installation supervision and comprehensive training for your operators and maintenance personnel at your factory site. This is part of our commitment to ensuring our clients achieve smooth production startup.
Q5: How energy-efficient is this machinery?
A: The machinery is designed with energy efficiency in mind. Features like servo-driven systems, optimized heating zones, and intelligent control help reduce overall power consumption during operation.
Q6: What kind of after-sales support do you offer?
A: Our support includes a standard warranty period, readily available spare parts supply, remote technical assistance via phone/video, and the availability of service engineers for on-site support if needed.
Q7: Can the machine process recycled HDPE material?
A: The machinery is primarily designed for virgin HDPE to ensure optimal product quality and process stability. Using a high percentage of recycled material may require process adjustments and could affect final product properties; we recommend consulting our engineers for specific cases.
Q8: What are the main application areas for the pipes and tanks produced?
A: The products are widely used in municipal drainage and sewer systems, industrial effluent pipelines, agricultural irrigation and drainage, ventilation ducts, and as chemical or water storage tanks in various industries.
