As a professional manufacturer of electrical equipment, Jinhua Dika Electrical Equipment Co., Ltd. specializes in producing reliable and safe medium voltage distribution solutions. Our Standard Compliant SF6 Ring Main Unit, backed by comprehensive Factory Mill Test Reports, is engineered to meet the rigorous demands of modern power networks. This unit combines advanced SF6 gas insulation technology with robust construction to ensure operational safety, longevity, and compliance with industry expectations, making it a trustworthy choice for utilities and industrial clients seeking dependable ring main units.

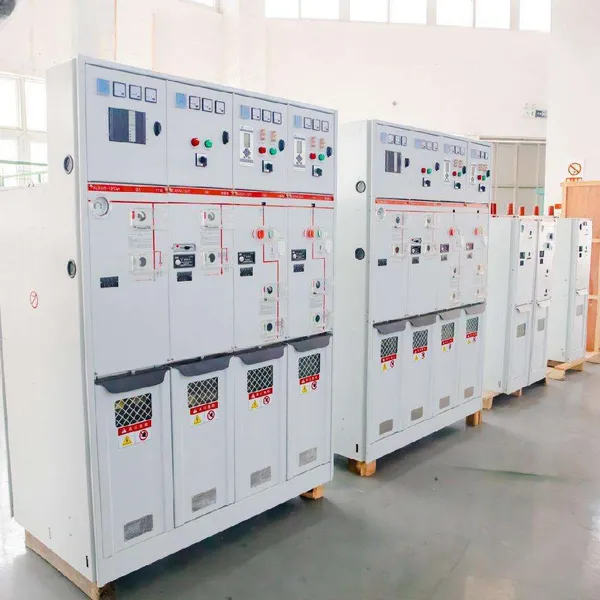

The SF6 Ring Main Unit (RMU) is a compact, gas-insulated switchgear assembly designed for medium voltage applications, typically in secondary distribution networks. Its primary function is to provide a reliable switching and protection point within a ring-type distribution system, enhancing network flexibility and reliability. The use of SF6 (Sulfur Hexafluoride) gas as the insulating medium offers significant advantages over air-insulated or oil-insulated designs.
Key Features & Technical Advantages:
- SF6 Gas Insulation: Provides superior dielectric strength, allowing for a more compact design compared to air-insulated units. This results in reduced space requirements for installation.
- Enhanced Safety & Reliability: The sealed, pressurized SF6 gas environment minimizes the risk of internal arcing, flashover, and external environmental contamination (dust, moisture), leading to higher operational safety and reduced maintenance.
- Factory Mill Test Report: Each unit undergoes rigorous factory testing. A detailed Mill Test Report is provided, documenting critical performance parameters such as insulation resistance, gas pressure, mechanical operation, and electrical function tests. This report serves as a vital quality assurance document for buyers.
- Standard Compliant Design: The unit is manufactured to conform to common industry standards and specifications for medium voltage gas-insulated switchgear, ensuring compatibility and performance expectations are met.
- Robust Construction: Built with durable materials and components to withstand operational stresses and ensure a long service life in various environmental conditions.
- Flexible Configuration: Typically configured as a ring main unit with necessary switches (load-break switches, isolators) and possibly fuse protection, adaptable to specific network requirements.
Technical Specifications Overview:
| Parameter | Typical Specification / Note |
|---|---|
| Rated Voltage | Up to 24 kV or 36 kV (Medium Voltage Range) |
| Insulation Medium | Sulfur Hexafluoride (SF6) Gas |
| Switchgear Type | Gas Insulated Ring Main Unit (RMU) |
| Configuration | Standard Ring Main configuration with switching devices |
| Testing Documentation | Factory Mill Test Report provided with unit |
| Application | Secondary Distribution Networks, Substations, Industrial Plants |
| Design Compliance | Manufactured to common industry standards |
Benefits for Customers:
- Space Efficiency: The compact SF6 design allows for installation in space-constrained locations like urban substations or building basements.
- Reduced Maintenance: The sealed gas system requires less frequent inspection and maintenance compared to air-insulated switchgear, lowering long-term operational costs.
- High Reliability: Consistent performance in switching and isolation tasks contributes to a more stable and reliable power distribution network.
- Quality Assurance: The accompanying Factory Mill Test Report provides transparent verification of the unit's condition and performance before installation, building trust and simplifying acceptance procedures.
- Safety: The inherent properties of SF6 gas reduce risks associated with internal faults and external factors, protecting both equipment and personnel.
Jinhua Dika Electrical Equipment Co., Ltd., with over a decade of experience and an annual export value ranging between US$1 Million and US$1.5 Million, serves markets across North America, South America, Europe, Asia, Africa, and Oceania. Our commitment to quality is reflected in our operational practices. While we hold various management system certifications, our focus for this product is on delivering a physically tested and documented unit. The provision of a Factory Mill Test Report with each Standard Compliant SF6 Ring Main Unit is a concrete demonstration of our dedication to transparency and product integrity. This unit represents a reliable, safe, and well-documented solution for your medium voltage distribution needs. We encourage you to contact us for detailed specifications, pricing, or to discuss how this RMU can integrate into your specific project.
Frequently Asked Questions (FAQ):
-
Q: What is the primary advantage of SF6 insulation in this Ring Main Unit?
A: SF6 gas has a much higher dielectric strength than air, allowing the switchgear to be designed in a significantly more compact size while maintaining excellent insulation performance and safety. -
Q: What exactly is included in the Factory Mill Test Report?
A: The report typically documents tests conducted at our factory, including gas pressure and purity checks, insulation resistance measurements, mechanical operation tests of switches, and basic electrical function tests to verify the unit's readiness for service. -
Q: Is this RMU suitable for outdoor installation?
A: Yes, the sealed SF6 gas-insulated design provides good protection against environmental elements like rain and dust, making it suitable for both indoor and outdoor applications, though specific environmental class ratings should be confirmed. -
Q: What is the typical voltage rating for this standard unit?
A: It is designed for medium voltage applications, commonly up to 24 kV or 36 kV. The exact rated voltage can be specified based on your project requirements. -
Q: How does the "Ring Main" configuration function?
A: A Ring Main Unit is a key component in a ring-type distribution network. It allows for feeding and isolating sections of the ring, providing flexibility and alternative power paths to enhance supply reliability to end consumers. -
Q: Are different switch configurations (e.g., with fuses) available?
A> Yes, the standard compliant design can often be customized with different switching and protection elements, such as incorporating fuse protection for transformer circuits. Configuration options are available upon request. -
Q: What are the maintenance requirements for an SF6 RMU?
A> Maintenance is generally low due to the sealed system. Periodic checks of gas pressure and mechanical components are recommended, but the interval is longer compared to air-insulated equipment. -
Q: Can you provide units with specific regional standards or certifications?
A> While the unit is manufactured to common standards, we can discuss requirements for specific regional certifications or standards. Please contact us with your detailed requirements.
