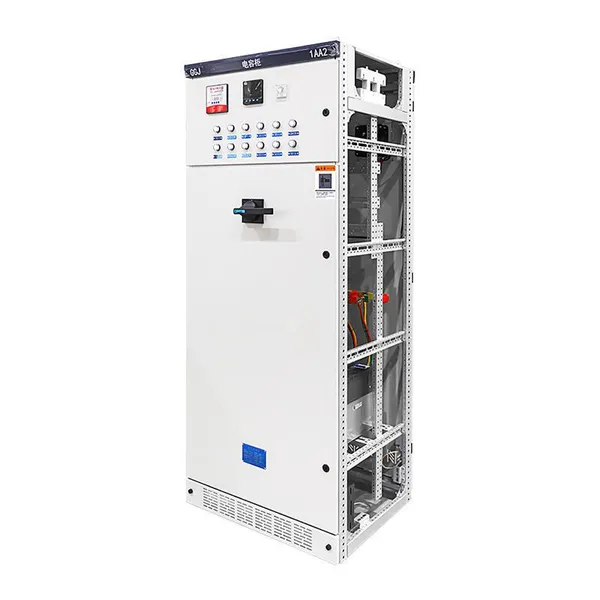

As a professional manufacturer of electrical equipment, Jinhua Dika Electrical Equipment Co., Ltd. is proud to present our reliable Low Voltage Reactive Power Compensation Cabinet. Engineered to enhance the efficiency and stability of your power distribution network, this cabinet is a cornerstone for modern industrial and commercial facilities aiming to reduce energy costs and comply with utility power factor requirements. With our commitment to quality and backed by a comprehensive 2-Year Warranty and dedicated Technical Support, we provide a solution that not only protects your investment but also optimizes your operational performance. Our extensive experience, serving markets from North America and Western Europe to Southeast Asia and Africa, ensures we understand diverse grid conditions and customer needs.
This product is designed to automatically correct the power factor in low voltage electrical systems by compensating for reactive power. The core benefit is significant cost savings on electricity bills, as utilities often penalize consumers for poor power factor. By installing our compensation cabinet, you can expect:
- Reduced Energy Losses: Minimizes wasteful reactive current in cables and transformers, leading to lower I²R losses.
- Increased System Capacity: Frees up valuable capacity in your existing transformers and cables, potentially deferring costly upgrades.
- Improved Voltage Stability: Helps maintain a more stable supply voltage, protecting sensitive equipment from fluctuations.
- Extended Equipment Life: Reduces the thermal stress on motors, transformers, and switchgear, prolonging their operational lifespan.
The cabinet is built with robust components and an intelligent controller that continuously monitors the system's reactive power demand. It switches capacitor steps in and out seamlessly to maintain a target power factor, typically close to unity (1.0). Key technical features include:
- Intelligent Microprocessor Controller: Features a clear display for real-time monitoring of parameters like PF, kVAr, voltage, and current.
- Robust Switching Devices: Utilizes high-performance contactors or thyristor switches for fast and reliable capacitor bank switching.
- High-Quality Capacitors: Low-loss, self-healing capacitors designed for long service life and reliable performance.
- Comprehensive Protection: Integrated safeguards against overvoltage, overcurrent, overtemperature, and harmonic distortion.
- Flexible Configuration: Available in various step configurations and total compensation ratings to match your specific load profile.
Typical specifications for our standard range are outlined below. Custom configurations are available to meet unique project requirements.
| Parameter | Specification / Range |
|---|---|
| Rated Voltage | 400V AC, 480V AC, 690V AC (50/60Hz) |
| Total Compensation Rating | From 50 kVAr to 600 kVAr (modular design) |
| Step Size | Configurable (e.g., 12.5, 25, 50 kVAr per step) |
| Control Strategy | PF (cos φ) target setting, C/k, or kVAr control |
| Enclosure Protection | IP20, IP31, or IP54 (optional) |
| Communication | Optional Modbus RTU, Profibus, Ethernet |
| Installation | Indoor, wall-mounted or floor-standing |
Choosing Jinhua Dika means partnering with a dedicated manufacturer with a proven track record. Our annual export value of US$1 Million - US$1.5 Million and our presence in global markets from North America to Oceania testify to the reliability and acceptance of our products. We operate from major Chinese ports like Shanghai, Tianjin, Guangzhou, and Ningbo for efficient logistics. The included 2-Year Warranty and accessible Technical Support provide peace of mind, ensuring your system operates optimally for years. Investing in our Low Voltage Reactive Power Compensation Cabinet is a strategic decision for cost control and system reliability. Contact us today to discuss your project specifications and receive a tailored solution.
Frequently Asked Questions (FAQ)
-
What is the typical payback period for this investment?
The payback period is often between 6 to 24 months, depending on your local utility's power factor penalty rates, electricity tariff, and the existing power factor of your facility. The savings from reduced penalty charges and lower energy losses typically result in a quick return on investment. -
Can this cabinet handle systems with high harmonic distortion?
Standard cabinets are for systems with relatively low harmonics. For networks with significant harmonic content (e.g., from variable speed drives, rectifiers), we offer detuned or filtered compensation solutions. Please provide your harmonic analysis for a correct recommendation. -
What is included in the technical support?
Our technical support covers assistance with system sizing, installation guidance, controller setup and programming support, and troubleshooting advice during the warranty period and beyond. Documentation and wiring diagrams are provided. -
How do I determine the correct kVAr rating needed for my facility?
The required rating depends on your connected load, existing power factor, and utility requirements. We can assist you with this calculation if you can provide details like monthly electricity bills (showing kVArh or PF), transformer ratings, and major load types. -
Is on-site installation service available?
While we provide detailed installation manuals and remote support, on-site installation and commissioning services can be arranged optionally or through our network of local partners in many regions. -
What happens if a capacitor fails during the warranty period?
In the unlikely event of a component failure within the 2-year warranty, we will supply a replacement part. The warranty covers defects in materials and workmanship under normal operating conditions. -
Can the cabinet be expanded in the future if our load increases?
Yes, the modular design allows for future expansion. We recommend planning for some spare capacity initially, or the cabinet can be designed to allow easy addition of capacitor steps later. -
What maintenance is required?
Maintenance is minimal. It typically involves periodic visual inspection, checking for loose connections, and ensuring ventilation paths are clear. The capacitors are generally maintenance-free.
