As a specialized manufacturer of electrical equipment, Jinhua Dika Electrical Equipment Co., Ltd. is proud to introduce our Low Voltage Reactive Power Correction Cabinet, designed to meet IEC standards for 380V-415V systems. This cabinet is engineered to provide automatic reactive power compensation, directly addressing inefficiencies in power distribution networks. By optimizing the power factor, our solution helps industrial and commercial facilities reduce energy waste, lower electricity costs, and enhance the stability and capacity of their electrical infrastructure. Our commitment to rigorous manufacturing processes ensures a reliable and effective product tailored for global markets.
This cabinet represents a sophisticated approach to managing reactive power in low-voltage AC systems. It continuously monitors the power factor and automatically switches capacitor banks to maintain an optimal balance, minimizing losses and improving overall system efficiency.
- Core Technology: The system utilizes advanced microprocessor-based controllers that sample voltage and current signals to calculate the instantaneous power factor. Based on predefined setpoints and logic, it commands the connection or disconnection of compensation steps.
-

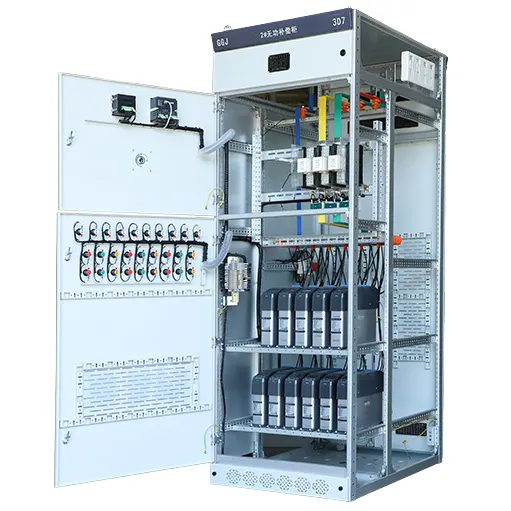

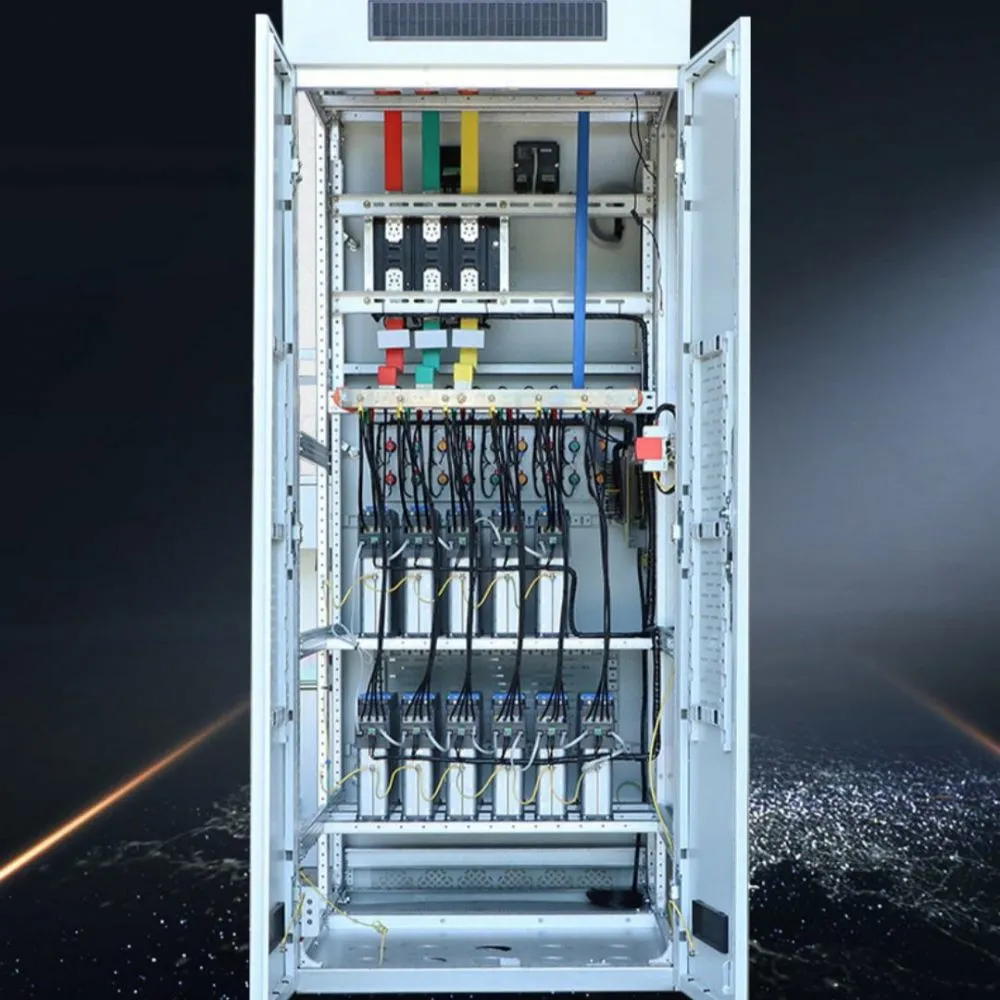

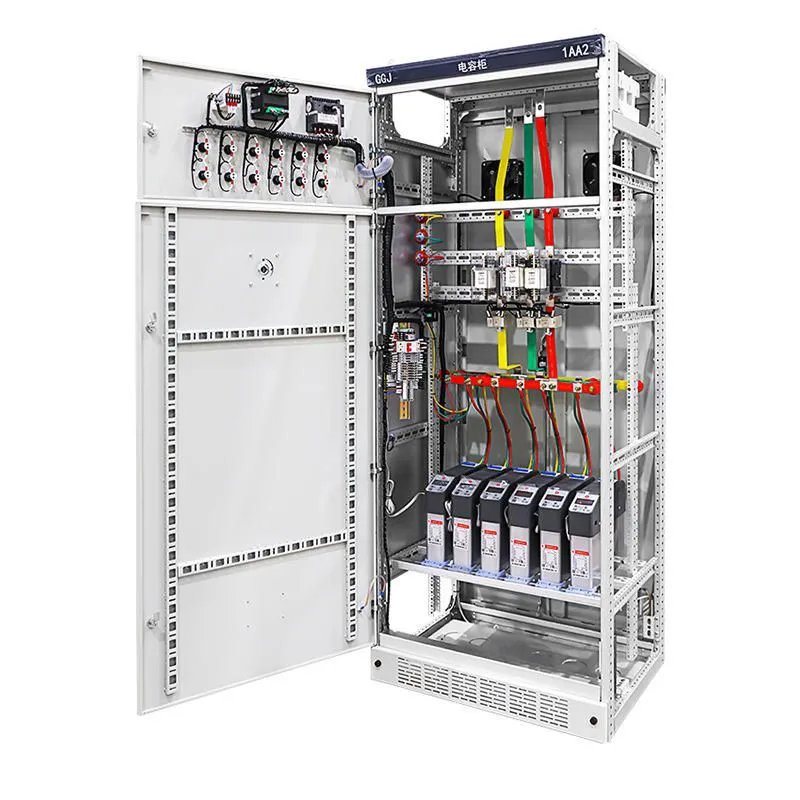

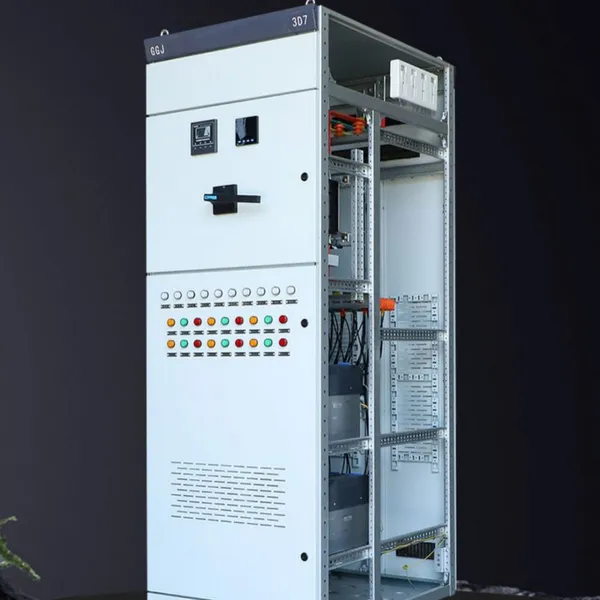

Key Components: The cabinet typically houses:
- Microprocessor Control Unit
- Contactor Switches for capacitor banks
- Power Factor Correction Capacitors
- Protection devices (fuses, circuit breakers)
- Measurement and display panel
-
Operational Advantages:
- Automatic Operation: Eliminates need for manual adjustment, adapting to load changes in real-time.
- Energy Savings: Reduces reactive power consumption, leading to lower utility bills and potential avoidance of penalty charges for poor power factor.
- System Protection: Enhances voltage stability, reduces line losses, and can increase the effective capacity of transformers and cables.
- Extended Equipment Life: By improving power quality, it can reduce stress on motors, transformers, and other inductive loads.
Here is a summary of typical technical specifications:
| Parameter | Specification / Range |
|---|---|
| Nominal System Voltage | 380V, 400V, 415V AC (3-phase) |
| Frequency | 50Hz / 60Hz (configurable) |
| Compensation Steps | 6, 8, 10, 12 (customizable) |
| Step Capacity per Bank | Typically 5kVar to 25kVar (depending on model) |
| Total Compensation Capacity | From 30kVar up to several hundred kVar |
| Control Strategy | Automatic, with programmable target PF (e.g., 0.95 to 1.0) |
| Response Time | Fast, typically within seconds of load change |
| Enclosure Protection Rating | IP20, IP31, or higher (optional) |
| Communication Options | RS485, Modbus RTU/TCP (optional) |
| Installation Type | Wall-mounted cabinet or floor-standing cubicle |
Beyond the base specifications, the cabinet can be tailored to specific project needs. Options include different capacitor technologies (dry-type, oil-filled), harmonic filter integration to prevent resonance, and enhanced monitoring with data logging. The design prioritizes safety with features like discharge circuits for capacitors, overload protection, and clear visual indicators for system status.
The benefits for your operation are tangible. Implementing this auto-correction system can lead to a direct reduction in peak current demand, freeing up capacity for additional loads without infrastructure upgrade. It mitigates the risk of voltage drops and improves the reliability of sensitive equipment. For facilities with variable or inductive loads (e.g., manufacturing plants, welding shops, large HVAC systems), the cabinet provides a dynamic solution that maintains efficiency across operating cycles.
Jinhua Dika Electrical Equipment Co., Ltd. brings substantial manufacturing expertise to this product. With an annual export value ranging between US$1 Million and US$1.5 Million and a workforce of 11-50 dedicated professionals, we have the capacity and experience to deliver quality electrical solutions. Our products reach diverse markets across North America, South America, Europe, Asia, Africa, and Oceania, shipped from major ports like Shanghai, Tianjin, Guangzhou, and Ningbo. This global footprint underscores our ability to meet international standards and client requirements. While we maintain a commitment to quality management systems, we design our Low Voltage Reactive Power Correction Cabinet to be a robust, reliable, and effective component for your power system. We encourage you to contact us for a detailed consultation to assess your specific needs and configure a solution that maximizes your energy efficiency and operational stability.
Frequently Asked Questions (FAQ)
-
Q: What is the primary purpose of this Reactive Power Correction Cabinet?
A: Its main purpose is to automatically improve the power factor of a 380V-415V electrical system by compensating for reactive power. This reduces energy losses, lowers electricity costs, and enhances system capacity and stability. -
Q: How does the "automatic" correction feature work?
A: A controller inside the cabinet continuously measures the system's power factor. When it deviates from the desired target (e.g., below 0.95), the controller automatically switches in appropriate capacitor banks to provide compensation, and switches them out when unnecessary. -
Q: Can this cabinet be used in systems with harmonics?
A: Standard units are designed for fundamental frequency compensation. For systems with significant harmonics, a specialized version with harmonic filtering or detuned capacitors is recommended to avoid resonance issues. This is an available customization. -
Q: What is the typical installation process?
A: Installation involves mounting the cabinet near the main distribution panel, connecting the power supply inputs, and linking the control signals to the system's current transformers (CTs). Professional electrical installation is required. -
Q: How is the total compensation capacity determined for a specific application?
A: The required capacity depends on the existing reactive power demand of your loads. It is calculated based on load data, desired target power factor, and system voltage. We can assist with this calculation during the consultation phase. -
Q: Are there maintenance requirements?
A: Maintenance is generally minimal. It may include periodic visual inspection, checking connections, and ensuring capacitors are in good condition. The automatic controller typically requires no routine maintenance. -
Q: Can the cabinet communicate with other monitoring systems?
A: Yes, communication options such as RS485 with Modbus protocol are often available. This allows integration with SCADA, energy management systems, or building automation for remote monitoring and data collection. -
Q: What safety features are included?
A: Standard safety features include overload and short-circuit protection for capacitor banks, discharge circuits to safely de-energize capacitors when switched off, and proper enclosure grounding. Specific protection levels can be customized.
