Equipment Overview

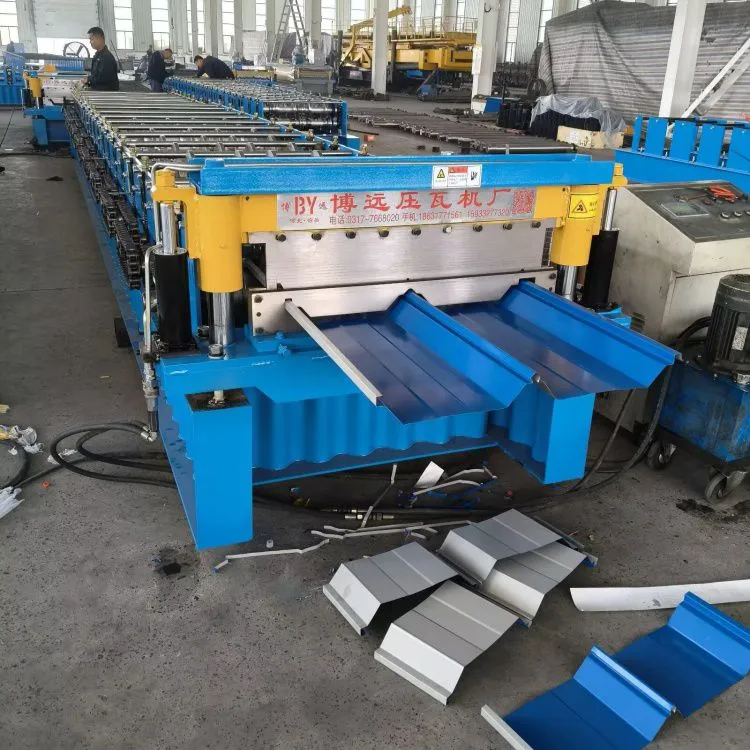

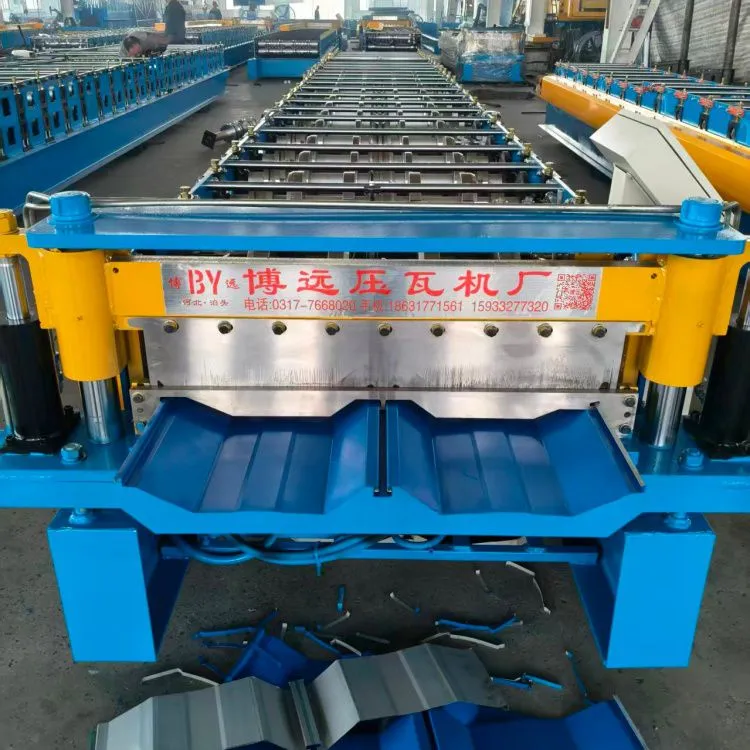

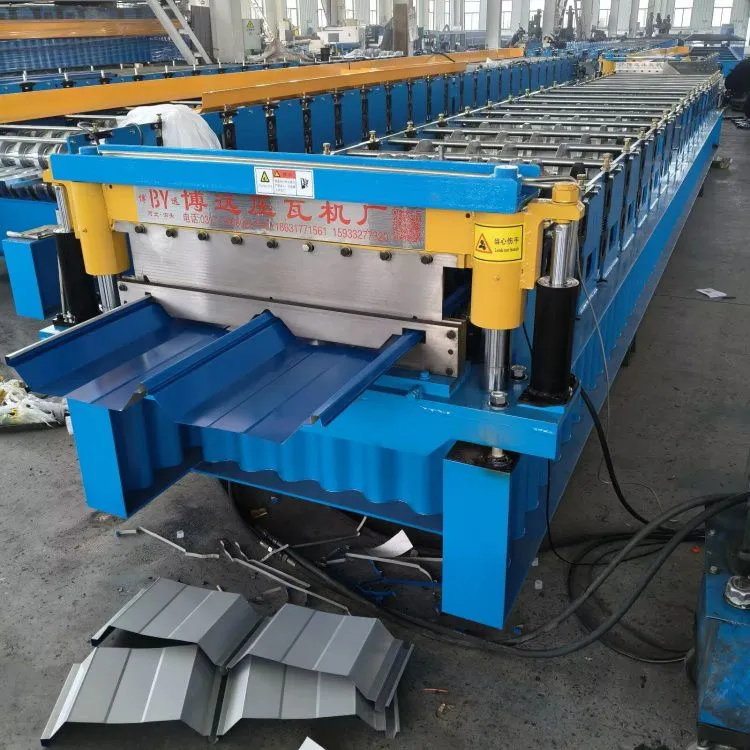

The Standing Seam Roof Panel Roll Forming Machine is a premium cold-bending forming equipment specifically designed for standing seam roofing systems. It continuously roll-forms metal coils into panels with vertical ribs. During installation, adjacent ribs are mechanically seamed together, achieving a fastener-free, fully watertight architectural finish. It is widely used in metal roofing projects for airports, high-speed rail stations, sports venues, and large-scale public buildings.
Core Technical Features
Precision Seaming Design: Rollers are machined with high-precision CNC to ensure vertical rib height, interlock clearance, and panel width tolerances are controlled within ±0.5mm, guaranteeing tight and secure field seaming.
Non-Destructive Forming: Utilizes a multi-stage progressive roll-forming process to prevent scratching or micro-cracking of the surface coating, significantly extending the roof's service life.
Inline Composite Functions: Supports online embossing (stiffening ribs), online punching (for acoustic/drainage holes), and insulation lamination to meet composite requirements for acoustics, drainage, and thermal insulation.
Intelligent Length Control: Equipped with rotary encoders and servo-driven cut-off systems with a length tolerance of ≤ ±1mm. It supports continuous production of multiple panels with varying lengths to minimize scrap.
High-Rigidity Frame: The welded frame undergoes stress-relief annealing, combined with high-rigidity roller shafts, ensuring the machine maintains forming precision without deformation during high-speed operation.
