Product Information
Product Category: Submersible Pump
Brand: Submersible Pump
Material: Cast Iron, Stainless Steel, Plastic
Customization: Submersible Length
Origin: Shanghai
Wastewater Discharge of Enterprises and Institutions
Discharge System of Urban Sewage Treatment Plants
Drainage Stations of Subways, Basements and Civil Air Defense Systems
Sewage Discharge of Hospitals, Hotels and High-rise Buildings
Sewage Drainage Stations in Residential Areas
Discharge of Thin Slurry in Municipal Engineering and Construction Sites
Water supply devices for water treatment plants.
Sewage discharge in farms and irrigation of rural farmland.
Supporting for mine exploration and water treatment equipment.
Replace manual carrying and suck river mud
The sewage pump series products are applicable when the rated voltage is 380V and the power frequency is 50Hz.
The temperature of the medium does not exceed 40 degrees Celsius, the density of the medium is ≤1150kg/m3, and the pH value is in the range of 5 - 9;
The altitude does not exceed 1000 meters;
The annual viscosity of the transported medium does not exceed 1000CP;
The product must be completely submerged in water during operation, but the diving depth shall not exceed 10m;
Flow rate: 2～850 m3/h
Head range: 3～45m
Rated speed n: 1450～2900r/min
Medium temperature: －15℃～+60℃
Medium density: ≤1.3×103kg/m3
Medium pH value: 5～9
System working pressure: ≤0.6Mpa

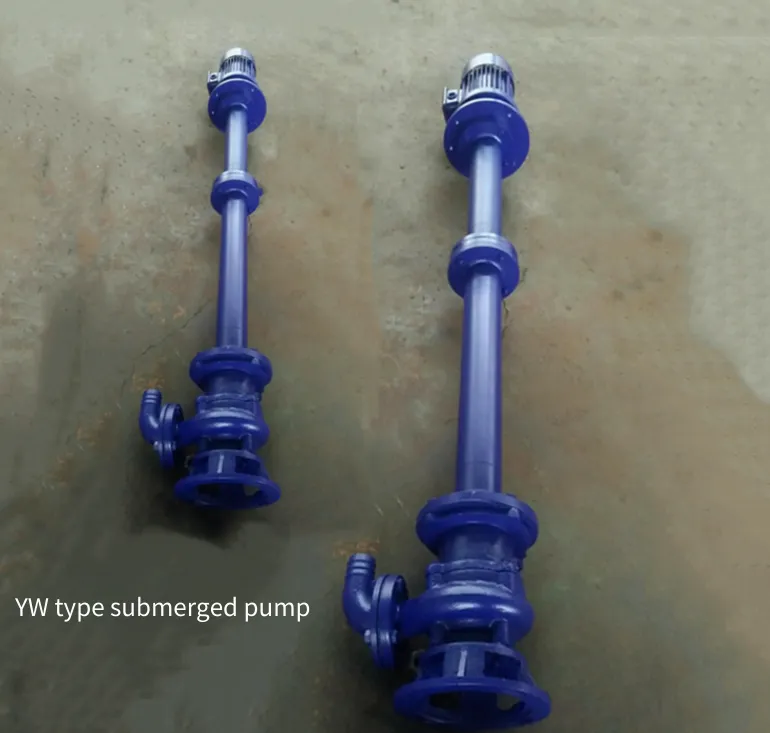

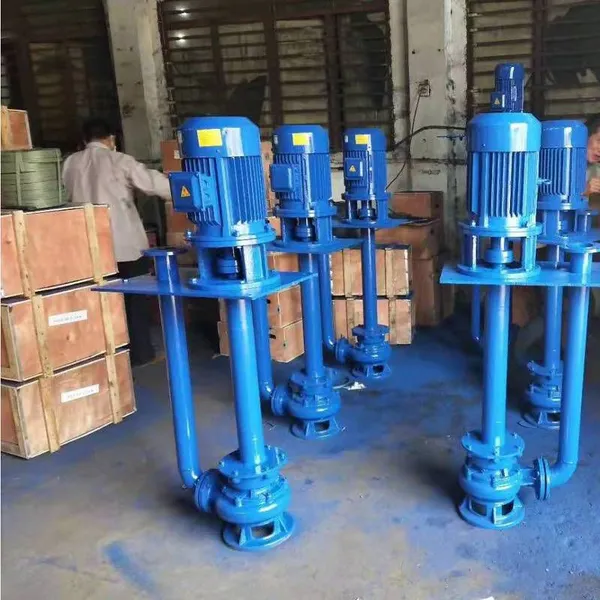

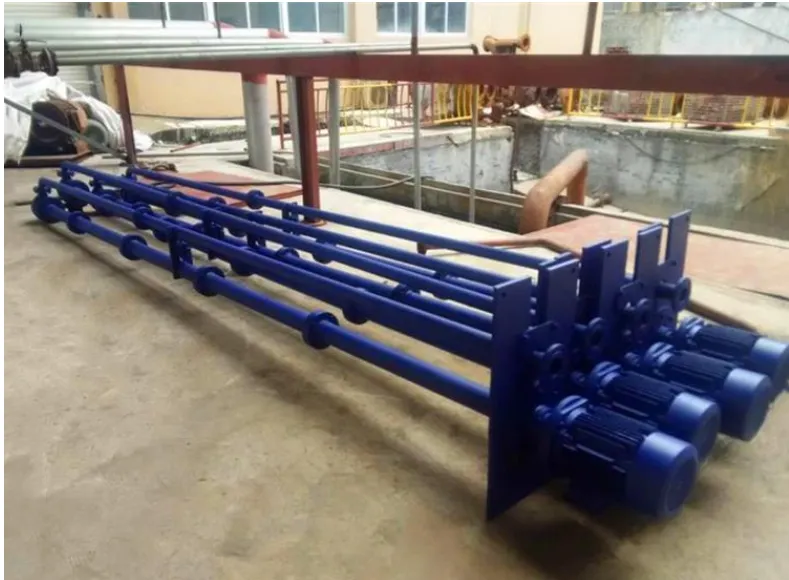

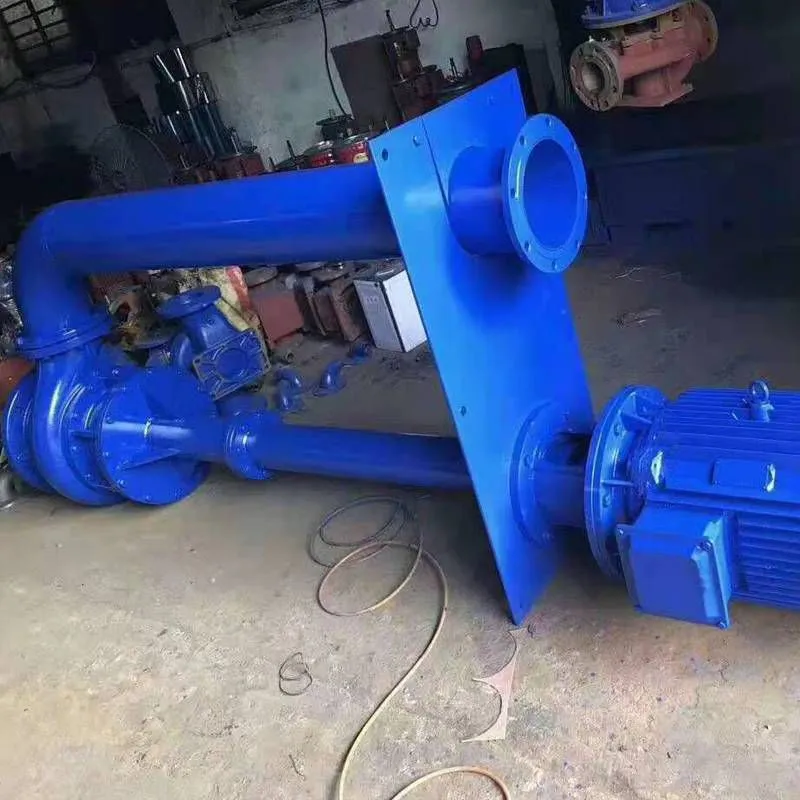

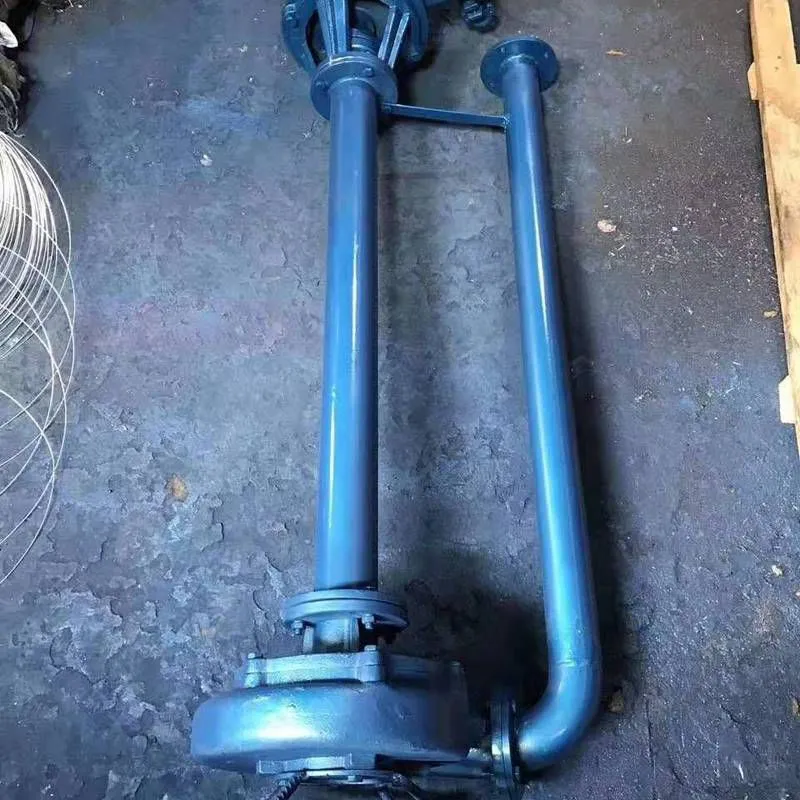

A submersible pump is a vertical pump that immerses the impeller, pump body and other flow - through components in the material to be transported and is connected to the motor shaft. Submersible pumps are made according to different requirements for the length of extension into the container. The parts of the submersible pump that come into contact with the material are generally selected according to the requirements of the material, with both metal and non - metal materials.
The pump is a vertical submersible pump with an aesthetic appearance. It can be directly installed on the storage of the material to be transported without additional floor space, thus reducing infrastructure investment.
The length of the shaft should not exceed 3 meters
After receiving the order notice, Shanghai Luoji Pump Industry Co., Ltd. will strictly deliver the goods in accordance with the relevant provisions of the contract, ensuring that the products are intact and delivered to the required time and place.
