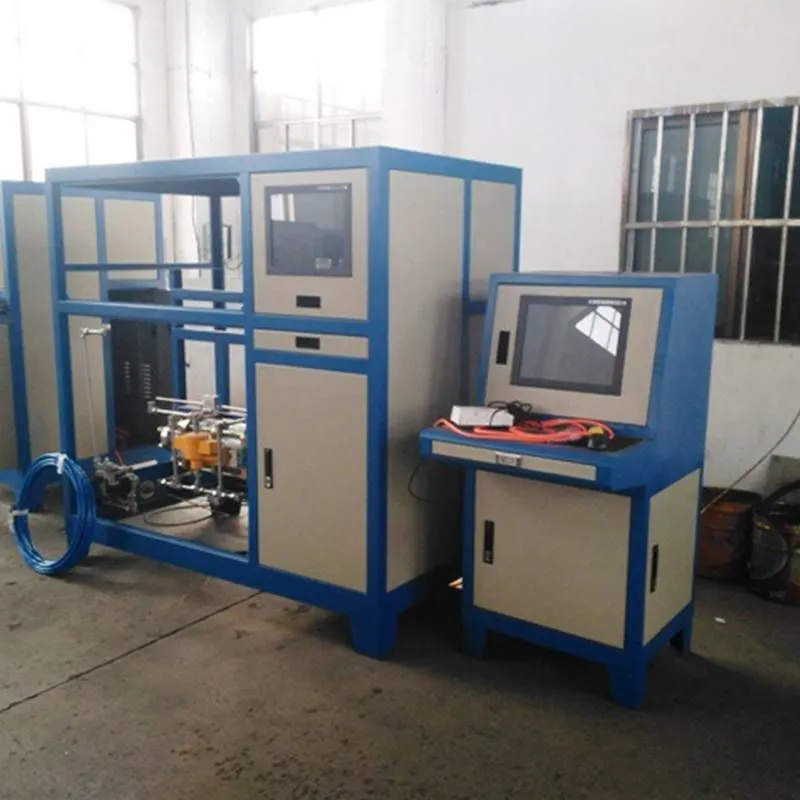

Help CenterSupply Qy140 Electric and Pneumatic Pressure Test Pump Control System, Valve Platform Test Pump With Print Report
Related Products
-
Self - Controlled and Self - Regulating Electric Pressure Test Pump 4dsy - 40, a Pressure Testing Device for Boiler PipesUS$ 692.31 - 738.46MOQ: 2 Units -
Large-flow, High-lift Stainless Steel Horizontal Explosion-proof Strong Self-priming Pump Zwpb50-25 Sewage PumpUS$ 615.38 - 769.23MOQ: 2 Units
-
Adjustable Liquid Dosing Pump, Gm/jwm Mechanical Diaphragm Metering Pump Accessories, Engineering Plastic and Stainless Steel PumpUS$ 200 - 230.77MOQ: 2 Units
-
Vertical and Horizontal Valve Testing Platform for Strength Performance of Straight-through Flange-connected Valve BodyUS$ 2923.08 - 3076.92MOQ: 2 Units
-
ab Machine Tool Cooling Pump, Oil Pump for Grinding Machine, Single-phase 220v, Three-phase Electric Pump 380v, Water Pump, 40w, 120wUS$ 27.69 - 35.38MOQ: 2 Units
Test pump model |
Pneumatic pump configuration |
Air source set pressure (MPa) |
Rated working pressure (MPa) |
Automatic recording printer |
Weight (Kg) |
QY140 |
1:60 1 unit 1:200 1 unit |
0.7 |
140 |
None |
80 |
Scope of use
It is suitable for high-pressure pressure test and inspection of pressure equipment such as blowout preventers, valves, pipelines, connectors, and pressure vessels in oilfield drilling and production engineering by test pump manufacturers. It is also suitable as a testing tool for scientific research and inspection departments.
It realizes full electromechanical automation and intelligence, and can complete the work processes such as setting the pressure value for high-pressure and pressure increase, and controlling the pressure accuracy. It can monitor the pressure increase value and the change of the pressure increase curve in real-time on the computer, and has the functions of recording and storage.
According to the different requirements of different pressure vessel pressure test processes, freely set the configuration, exhaust time, and pressure increase value.
It ensures that the digital value of pressure increase does not drift, the pressure increase curve does not overshoot, and the pressure is maintained stably.
It can automatically record the pressure increase value and the pressure increase curve, and store and print historical reports.
It realizes that the full-scale control accuracy is within five thousandths (0.5%FS).
Pressure test; (Test pressure: 140MPa);
Pressure increase speed: Adjustable by adjusting the intake air pressure.
