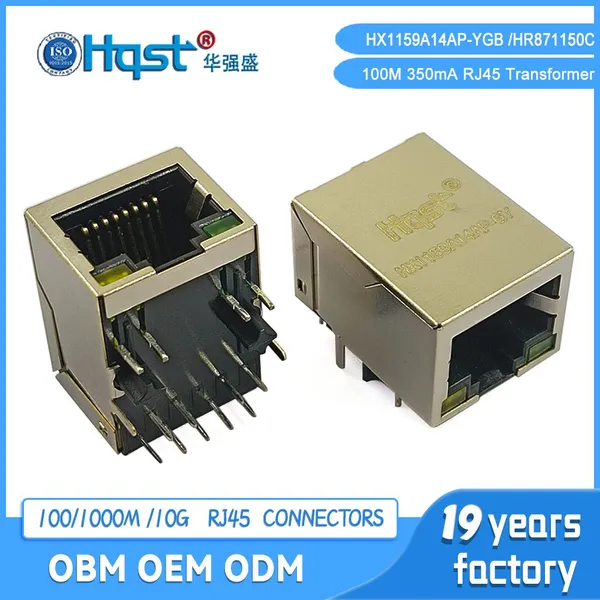

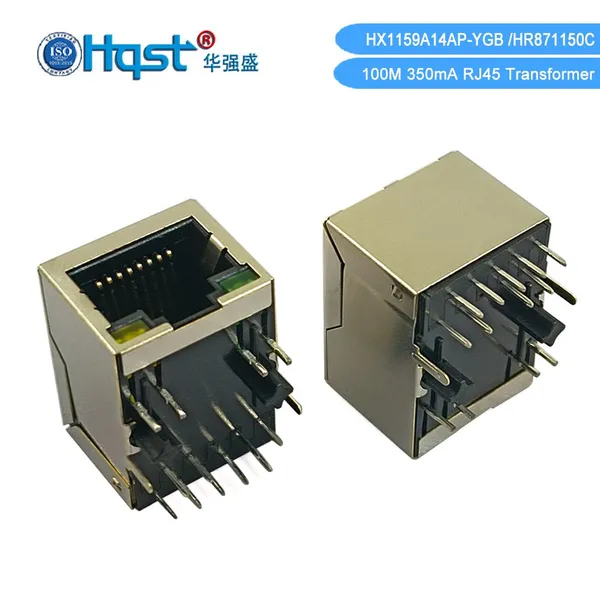

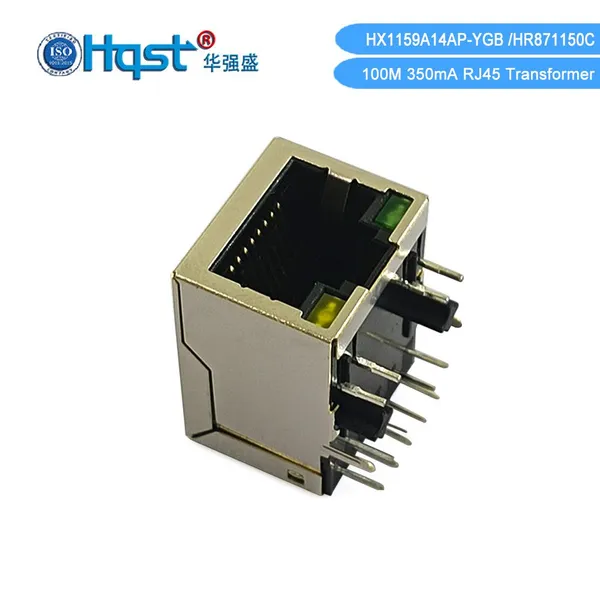

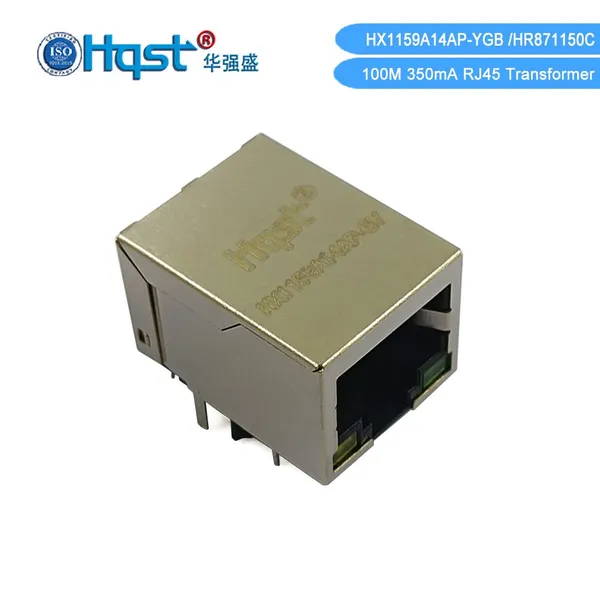

Help CenterHQST HX1159A14AP-YGB 100M POE RJ45 Modular Jack With Integrated Magnetics Transformer, 350mA End-span POE,
Product Spotlights
Related Products
-
Gigabit PoE+ RJ45 Jack With Transformer 2250V Isolation Gold Plated for Industrial Switch Network EquipmentUS$ 12.9 - 14.7MOQ: 100 Pieces -
Industrial 1000M POE+ RJ45 Connector GX1159F18BP-GO/Y0B 2250V Isolation Gold Plated Ethernet Socket TransformerUS$ 12.9 - 14.7MOQ: 100 Pieces
-
Industrial 1000M POE+ RJ45 Connector GX1159F18BP-GO/Y0B 2250V Isolation Gold Plated Ethernet Socket TransformerUS$ 12.9 - 14.7MOQ: 100 Pieces
-
HX1159A14AP‑YGB: Compact PoE RJ45 Jack for Reliable 100M EthernetUS$ 17.79MOQ: 1 Piece
-
G1259A01AP-GYB 1000M RJ45 Transformer Module PoE 54V 600mA IEEE802.3atUS$ 17.79MOQ: 1 Piece
1. Industry Standard Compliance
Fully conforms to IEEE802.3 & ANSI X3.263 industrial standards, certified RoHS compliant, meets global environmental & electrical certification requirements for export shipments. Operating temperature: -40℃~+85℃, storage range -40℃~+125℃, stable performance under harsh industrial & outdoor working conditions.
2. Excellent Electrical Parameter & Isolation Performance
OCL inductance ≥350uH @100KHz/0.1Vrms, Turns Ratio 1±3%, Max DCR 1.2Ω, Cww typ 35pF
1500V AC 1S high isolation voltage, effectively block surge & common-mode interference, protect PHY chip from lightning damage
Low Insertion Loss ≤-1.2dB(1~100MHz), high Return Loss≥-18dB, CMRR≥-30dB, Crosstalk≤-30dB, outstanding signal integrity, stable 100Mbps data transmission across full frequency band.
3. End-span POE Core Advantage(350mA Key Selling Point)
Designed specially for End-span POE application, supports max 350mA continuous DC@54V PSE pins, fully match IEEE802.3af POE standard, realize single-cable power+data transmission for IP Camera, Wireless AP, POE Switch terminal devices. Built-in integrated magnetics eliminate separate discrete LAN transformer on PCB, reduce BOM quantity & procurement cost sharply.
4. Optimized PCB Layout, Save Design & Production Cost
Standard fixed dimension & official recommended PCB hole layout in datasheet; no extra PCB redesign needed for existing 100M project, direct drop-in replacement to cut PCB development & mould opening cost. Less magnetic components soldered on PCB, improve SMT yield rate & reduce after-sales failure rate greatly. Minimize PCB occupied space, simplify circuit layout for compact-size equipment design.
5. Premium Raw Material & Mechanical Durability
Housing: UL94 V-0 fire-retardant thermoplastic; Contact/Shield: copper alloy, shield nickel plating, contact selective gold plating 6u", anti-oxidation & stable plug-in conduction
Mechanical durability ≥800 mating cycles, long service life for industrial continuous plug/unplug scenarios
Dual LED indicator(Left Green/Right Yellow): Green 568nm, Yellow585nm, forward voltage 1.8~2.8V@20mA, real-time working status visual monitoring.
6. Wide Application Scenarios
Perfect for 10/100M POE Switch, IP Security Camera, Wireless AP, Industrial Control Gateway, VoIP Phone & other End-span POE powered network equipment. HQST factory direct supply, stable lead time, available for OEM/ODM customization.
