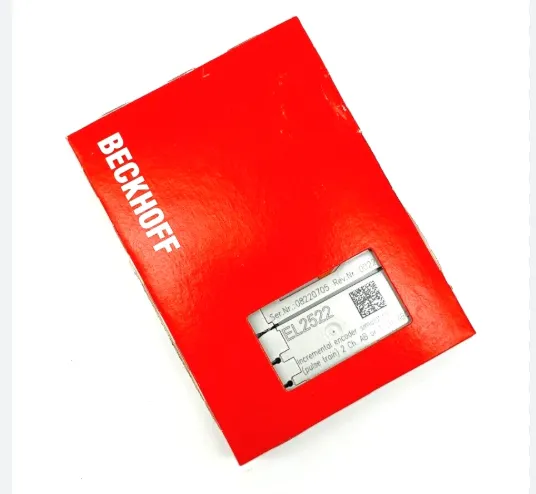

Beckhoff EL2522 EtherCAT Terminal 2-Channel Pulse Train Output RS422 Encoder Simulation Module
Product Spotlights
The Beckhoff EL2522 is a 2-channel pulse train output EtherCAT terminal designed for high-speed motion control and encoder simulation. It supports RS422 differential outputs with frequency modulation, pulse/direction control, and incremental encoder simulation modes. It is widely used for stepper motor control, servo drive pulse input, and motion simulation systems in industrial automation.
US$ 310
≥1 Piece
Key Specifications
Get Latest Price
Material:
Plastic
Type:
Other, EtherCAT Digital Input Terminal
Certification:
CE, ISO
Payment & Shipping
Payment Methods:
Port of Shipment:
XIAMEN
Delivery Detail:
7 days
Related Products
-
BECKHOFF EL4031 EtherCAT Terminal 1-Channel Analog Output Module ±10V 12-Bit Industrial Automation I/O TerminalUS$ 290MOQ: 1 Piece -
BECKHOFF EL4014 EtherCAT Terminal 4-Channel Analog Output Module 0-10V 12-Bit Industrial Automation I/O TerminalUS$ 280MOQ: 1 Piece
-
BECKHOFF EL7201-0010 EtherCAT Servo Drive Terminal 48V DC 2.8A OCT Motion Control Module for Servo MotorsUS$ 280MOQ: 1 Piece
-
BECKHOFF EL5001 EtherCAT Terminal SSI Encoder Interface Module 1-Channel Absolute Encoder Input Industrial AutomationUS$ 290MOQ: 1 Piece
-
BECKHOFF EL4124 EtherCAT Terminal 4-Channel Analog Output Module ±10V 16-Bit High Precision Industrial AutomationUS$ 280MOQ: 1 Piece
Material
Plastic
Type
Other, EtherCAT Digital Input Terminal
Certification
CE, ISO
Color
Fixed
Standard
International
Customized
Non-Customized
Transport Package
Original Factory Package, Carton Box
Specification
EL2522, 2CH Pulse Output, RS422, EtherCAT
Trademark
Beckhoff
Origin
Germany
The Beckhoff EL2522 EtherCAT Terminal provides high-speed pulse train outputs for motion control applications. It supports multiple operating modes including frequency modulation, pulse/direction control, and incremental encoder simulation (AB or ABC signals).
With RS422 differential signaling and EtherCAT communication, the EL2522 ensures precise and stable signal transmission for stepper motors, servo drives, and motion systems. It is widely used in industrial automation systems requiring high-speed positioning and synchronization control.

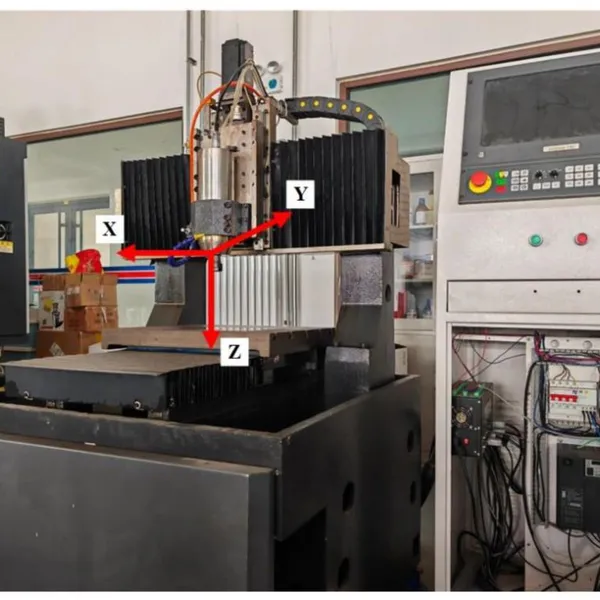

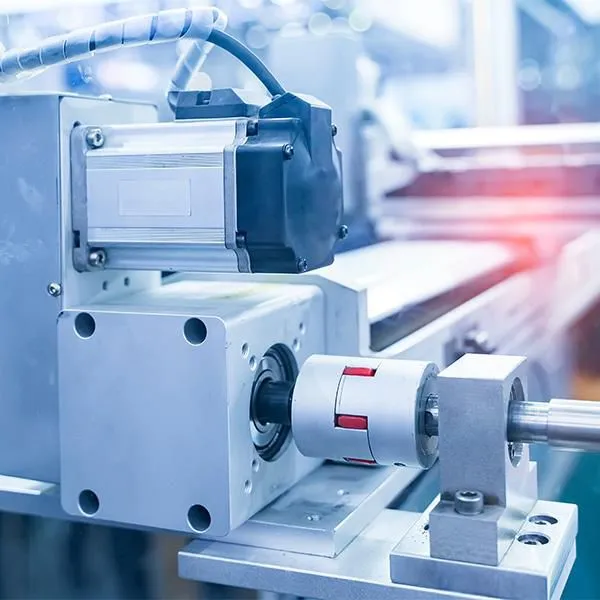

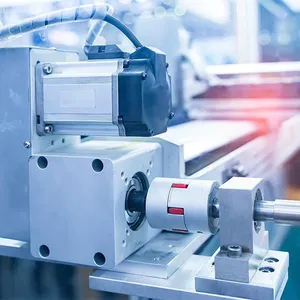

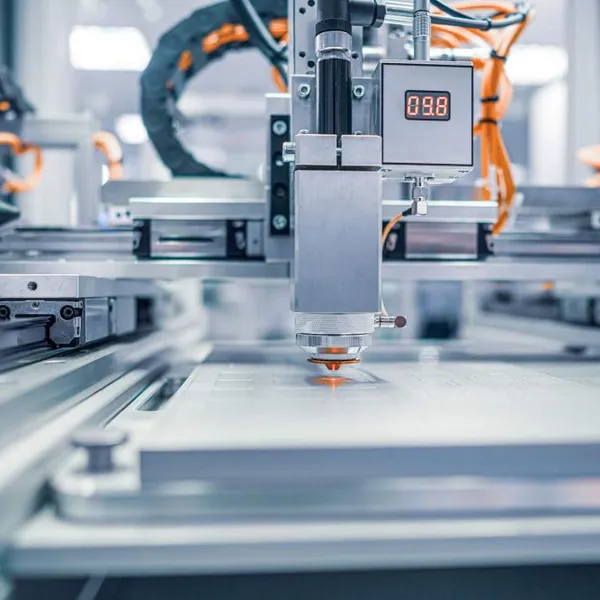

Typical applications include stepper motor control, servo drive pulse interface, CNC auxiliary motion systems, and encoder signal simulation.
