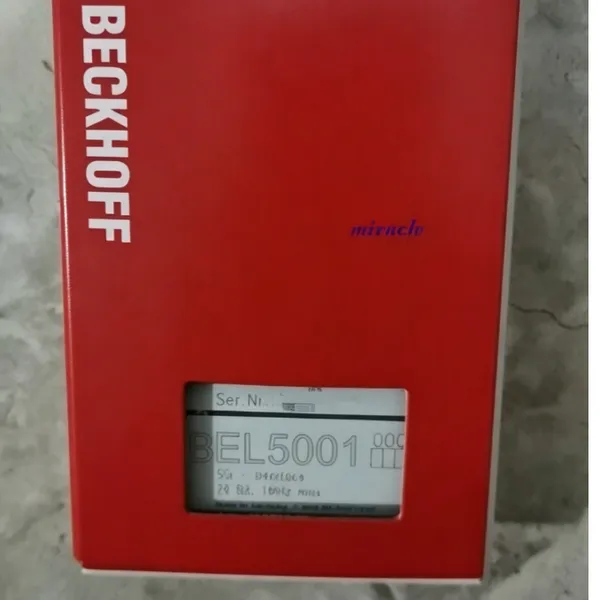

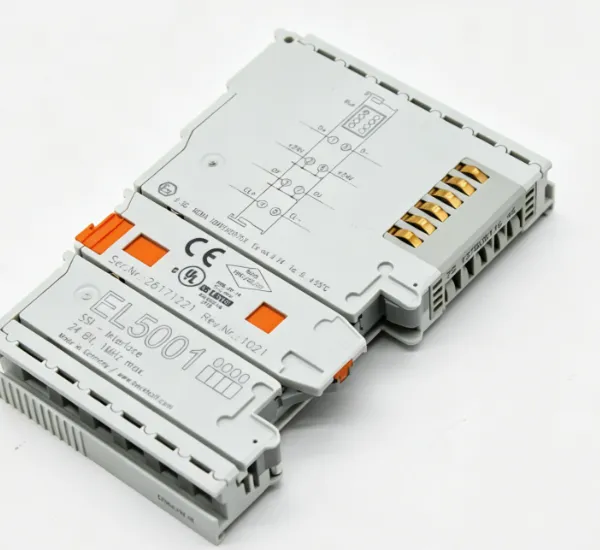

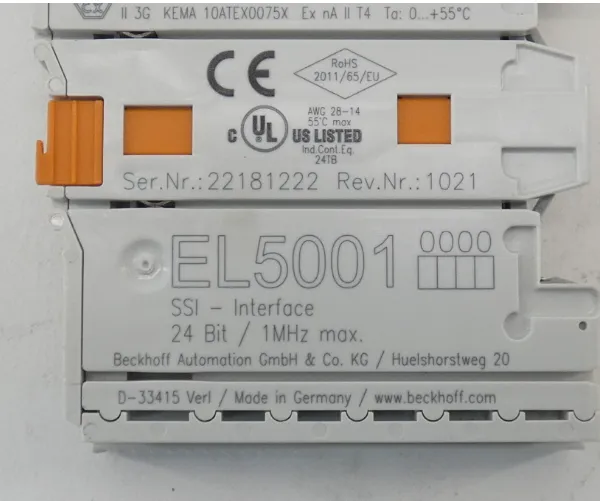

BECKHOFF EL5001 EtherCAT SSI Encoder Interface Terminal
The EL5001 EtherCAT Terminal enables the direct connection of one SSI absolute encoder to EtherCAT control systems. It provides reliable position acquisition, high-speed communication, and precise feedback for motion control applications. The terminal is ideal for industrial automation systems requiring accurate position monitoring and synchronization.
Key Features
1-channel SSI encoder interface
Supports absolute SSI encoders
Up to 32-bit data transmission
SSI clock frequency up to 1 MHz
High-precision position feedback
Fast EtherCAT communication
Compact DIN rail installation
Electrical isolation for enhanced reliability
LED status indication
Applications
Motion control systems
Servo positioning systems
CNC machinery
Packaging equipment
Robotics
Material handling systems
Automated production lines
Industrial measurement systems
Technical Specifications
Model: EL5001
Communication Protocol: EtherCAT
Encoder Type: SSI Absolute Encoder
Number of Channels: 1
Data Width: Up to 32 Bit
Clock Frequency: Up to 1 MHz
Electrical Isolation: 500 V
Protection Class: IP20
Operating Temperature: -25°C to +60°C
Mounting Type: DIN Rail
Housing Material: Polycarbonate
Package Includes
1 × BECKHOFF EL5001 SSI Encoder Interface Terminal
Original Factory Packaging
