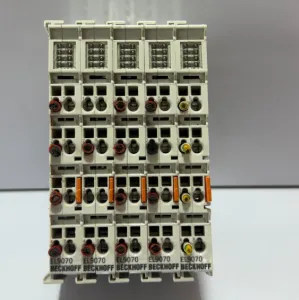

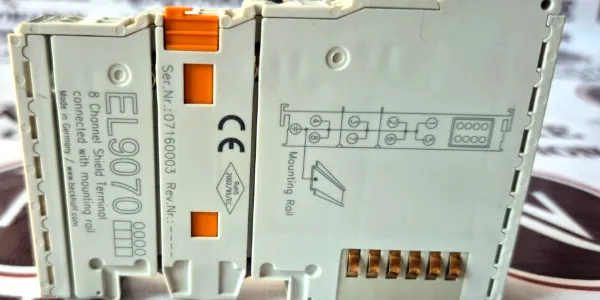

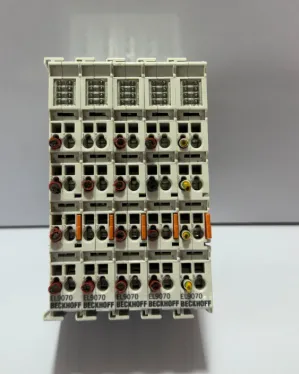

BECKHOFF EL9070 EtherCAT Shield Terminal

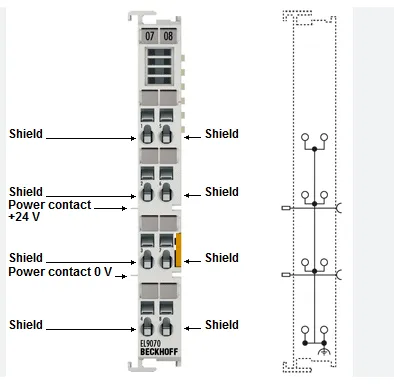

The EL9070 shield terminal provides eight shield connection points with direct connection to the DIN rail potential. Its integrated copper shielding surface enables effective EMC suppression and improves shielding performance between adjacent EtherCAT terminals. The module requires no additional wiring terminals, helping simplify cabinet design while improving signal quality and system stability.
Key Features
• 8 shield connection points
• Direct grounding through DIN rail
• Internal full-surface copper shielding
• Effective EMC interference suppression
• Improves signal integrity
• Compact 12 mm housing width
• No additional wiring required
• Maintenance-free operation
• Suitable for EtherCAT systems
• Industrial-grade reliability
Applications
• Industrial Automation Systems
• PLC Control Cabinets
• EtherCAT I/O Stations
• Motion Control Systems
• Robotics Equipment
• Packaging Machinery
• Factory Automation
• Process Control Systems
Package Includes
1 × BECKHOFF EL9070 Shield Terminal
Original Factory Packaging
100% Tested Before Shipment
Technical Support Available
Warranty Support Available
