BECKHOFF EL4124 EtherCAT Analog Output Terminal
The EL4124 EtherCAT Terminal features four high-precision analog voltage output channels with a signal range of ±10 V and 16-bit resolution. It converts digital values from the EtherCAT network into highly accurate analog signals for demanding control and measurement applications.
Key Features
4-channel analog voltage output
Output range ±10 V
High-resolution 16-bit conversion
Excellent signal accuracy and stability
Fast EtherCAT communication
Compact 12 mm terminal width
Electrical isolation for enhanced reliability
LED diagnostic indicators
Maintenance-free operation
Applications
Motion control systems
Servo drive control
Process automation
Industrial measurement equipment
Test benches
Packaging machinery
Semiconductor equipment
OEM automation systems
Technical Specifications
Model: EL4124
Communication Protocol: EtherCAT
Number of Outputs: 4
Output Signal: Voltage
Output Range: ±10 V
Resolution: 16 Bit
Conversion Time: 100 μs
Isolation Voltage: 500 V
Protection Class: IP20
Operating Temperature: -25°C to +60°C
Mounting Type: DIN Rail
Housing Material: Polycarbonate

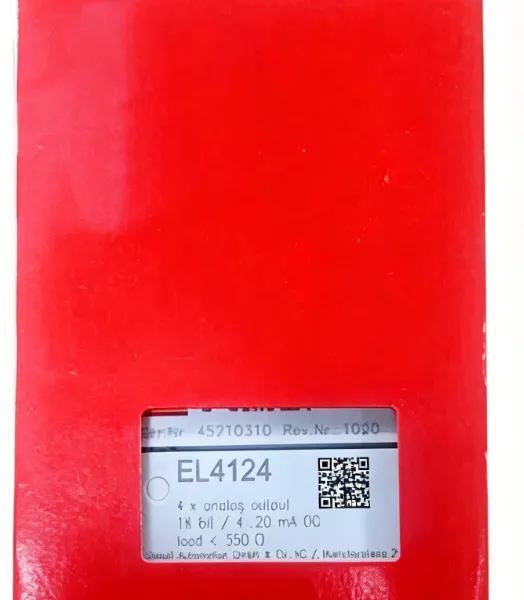

Package Includes
1 × BECKHOFF EL4124 EtherCAT Terminal
Original Factory Packaging
