As a specialized manufacturer with over a decade of experience, Qingdao Yongke Machinery Co., Ltd. is proud to introduce our advanced Krah HDPE Hollow Wall Pipe Production Line. Designed specifically for demanding offshore and marine pipeline projects, this line represents our commitment to providing robust, reliable, and efficient manufacturing solutions. Our facility, spanning over 10,000 square meters and backed by ISO9001 certified processes, ensures every production line meets stringent quality standards for global infrastructure development. This equipment enables the creation of high-strength, corrosion-resistant pipes essential for underwater applications, offering project engineers a dependable source for critical pipeline components.
The core of this production line is the innovative Krah winding technology, which produces a unique hollow-wall (double-wall) pipe structure. This method involves spirally winding a profiled HDPE strip onto a mandrel, creating a pipe with exceptional ring stiffness and longitudinal flexibility – a combination vital for marine environments. The hollow wall design provides superior impact resistance and buoyancy control, making it ideal for offshore oil & gas, seawater intake/discharge, coastal protection, and subsea cable protection projects.

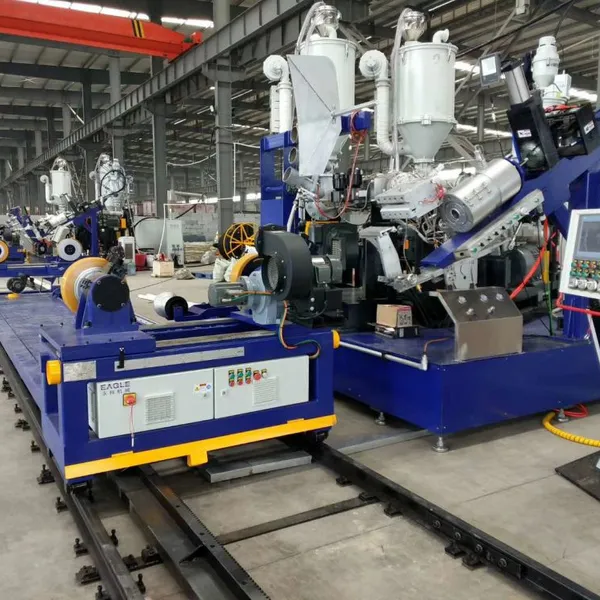

- Advanced Extrusion & Winding System: The line integrates precise extrusion units for producing the HDPE profile strip, followed by a computer-controlled winding station. This ensures consistent wall thickness and perfect seam fusion, resulting in a monolithic pipe structure without weak points.
- Tailored for Marine Specifications: The equipment is configurable to produce pipes meeting the specific diameter, wall thickness, and length requirements of offshore projects. Parameters such as winding angle and fusion pressure can be adjusted to optimize pipe performance for different seabed conditions.
- Enhanced Corrosion & Chemical Resistance: By utilizing high-grade HDPE raw materials, the produced pipes inherently resist saltwater corrosion, chemical attack from hydrocarbons, and biological fouling, significantly extending service life compared to metallic alternatives.
- Integrated Automation & Quality Control: A central PLC system monitors and controls key parameters like temperature, speed, and tension throughout the process. Optional vision systems and laser measurement devices can be integrated for real-time dimensional verification, ensuring every meter of pipe meets project specs.
- Efficient Cooling & Handling: A multi-stage water cooling system rapidly stabilizes the pipe after winding, preventing deformation. The downstream handling section includes cutting, marking, and stacking mechanisms, preparing pipes for direct shipment to project sites.
The technical specifications of the production line can be customized, but a standard configuration typically includes the following core modules:
| Module | Key Function | Typical Feature |
|---|---|---|
| Raw Material Feeding & Drying | Prepares HDPE granules for extrusion | Hopper with moisture control, optional color blending |
| Profile Extrusion Unit | Forms the precise HDPE strip for winding | Single or twin-screw extruder, temperature zones control |

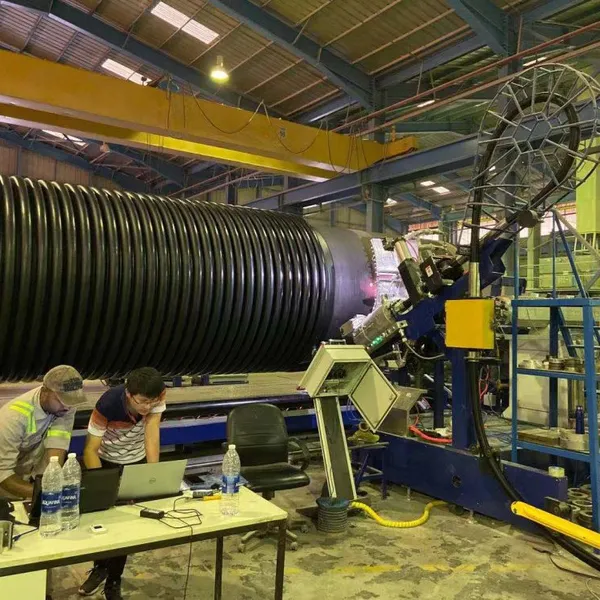

| Krah Winding Station | Spirally winds and fuses the strip into pipe | CNC-controlled mandrel, adjustable winding angle & speed |
| Cooling Tunnel | Solidifies the pipe structure | Water spray or immersion cooling, length customizable |
| Cutting & Marking System | Cuts pipe to length and adds identification | Saw or shear cutter, laser or ink marking optional |
| Control Cabinet | Centralized operation and monitoring | PLC with touchscreen HMI, data logging capability |
For clients, the benefits are substantial. This production line allows for on-site or localized pipe manufacturing, reducing logistics costs and lead times for large-scale marine projects. The hollow-wall pipes produced offer lower material weight per strength unit, facilitating easier installation in offshore settings. Furthermore, the flexibility of the Krah process means pipes for different applications – from slurry transport to cable conduits – can be made on the same line with minor adjustments, providing excellent investment versatility.
Trust in our solution is built on solid foundations. Qingdao Yongke Machinery operates from a 10,000-30,000 square meter factory with a team of 51-100 skilled professionals, ensuring robust production capacity and technical support. Our annual export value of US$1-1.5 Million reflects successful delivery to diverse markets including North America, South America, Eastern Europe, Southeast Asia, Africa, and Oceania – regions where offshore projects are prevalent. Shipment from the Port of Qingdao ensures efficient global logistics. Our management systems are certified under ISO9001, ISO14000, and OHSAS18001, guaranteeing a disciplined approach to quality, environmental responsibility, and workplace safety in manufacturing your production line. This Krah HDPE Hollow Wall Pipe Production Line is engineered to be a reliable, long-term asset for your marine pipeline ventures. Contact us to discuss how we can configure a line tailored to your specific offshore project requirements.
Frequently Asked Questions (FAQ)
Q1: What is the "Krah" method, and why is it suitable for marine pipes?
The Krah method is a spiral winding and fusion process. It creates a hollow-wall pipe with high ring stiffness from a continuous HDPE profile. This structure provides excellent resistance to external pressure (e.g., deep water pressure) and internal loads, while remaining flexible enough to handle seabed movements, making it highly suitable for dynamic marine environments.
Q2: What range of pipe diameters can this production line manufacture?
The diameter range is customizable based on your project needs. The line's core components, like the winding mandrel and extrusion die, are designed to be adapted. We typically discuss requirements from several hundred millimeters up to large diameters suitable for major offshore conduits.
Q3: Can the line use different types of polyethylene or other plastics?
The line is optimized for High-Density Polyethylene (HDPE), which is the preferred material for marine durability. The extrusion system can potentially process other polyethylene grades (like MDPE) with adjustments, but material compatibility should be confirmed during the design phase based on your specific pipe specifications.
Q4: How automated is the operation? What skill level is required for operators?
The line features a PLC-based control system with a user-friendly interface. Key processes are automated, but supervision is required. We provide comprehensive training and operational manuals. Operators with basic experience in extrusion or machinery operation can be trained to run the line effectively.
Q5: What is the typical output or production speed of such a line?
Production speed depends heavily on the target pipe diameter, wall thickness, and material. It is not a fixed value. The line's design focuses on stable, consistent production rather than maximum speed, ensuring quality. We calculate expected output during project configuration based on your parameters.
Q6: Does the production line come with quality testing equipment?
Basic monitoring systems for dimensions and process parameters are integrated. For full-scale quality testing (like pressure testing), separate testing stations are usually recommended. We can advise on and supply ancillary testing equipment as part of a complete package.
Q7: How does the hollow wall structure benefit offshore installation?
The hollow wall reduces the overall weight of the pipe while maintaining strength, which can lower buoyancy requirements and simplify handling during offshore laying operations. It also provides a degree of insulation and can dampen vibration, which is beneficial for certain applications.
Q8: What support services do you provide after purchase?
We offer installation guidance, on-site training for your team, a detailed maintenance manual, and remote technical support. As an ISO9001-certified manufacturer, we have structured procedures for after-sales service to ensure your line remains productive.
