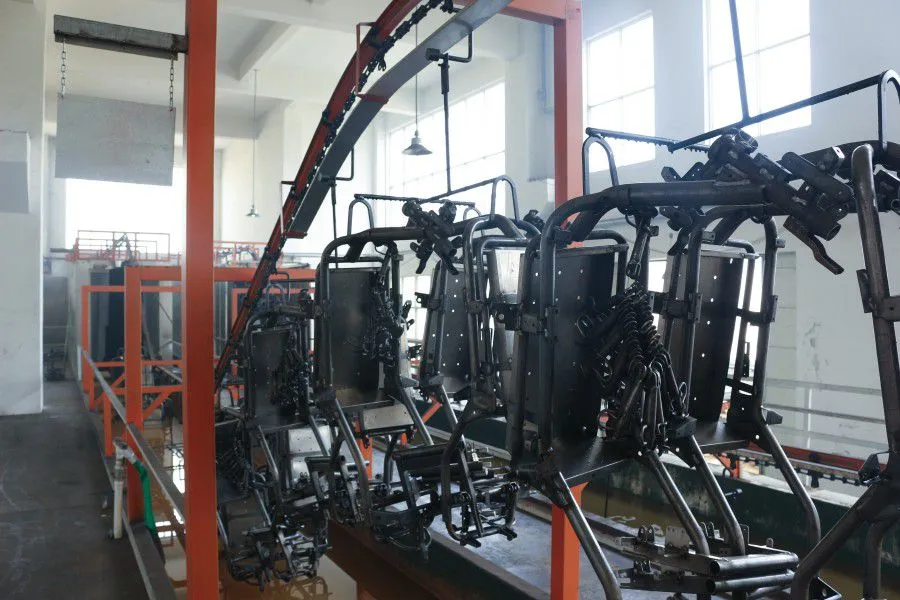

As a professional manufacturer with over a decade of experience, Deqing Leixin Coating Equipment Co., Ltd. specializes in designing and building high-performance, integrated coating solutions. Our Integrated Electrophoretic Coating Line for Spraying Machines and Powder Coating Systems represents a culmination of our expertise, engineered to streamline your metal finishing operations. This turnkey system combines the superior corrosion resistance of electrophoretic coating (E-coat) with the versatility and aesthetic options of spray and powder coating processes into one seamless, efficient production line. It is designed for manufacturers seeking to enhance product durability, improve finish quality, and optimize floor space and labor costs.
This integrated line is not just equipment; it's a complete surface treatment solution tailored to your specific production needs. We understand that in industries like automotive parts, metal hardware, and household appliances, consistent, high-quality finishes are non-negotiable. Our system ensures uniform coating thickness, excellent edge coverage, and robust adhesion, directly translating into longer-lasting products and higher customer satisfaction. By integrating multiple processes, we eliminate the need for separate, disjointed systems, reducing material handling, energy consumption, and overall operational complexity.
Core Features and Technical Advantages:
Seamless Process Integration: The line sequentially handles pretreatment (cleaning, phosphating), electrophoretic coating, intermediate curing, and then proceeds to either liquid spray or powder coating stations as required, followed by final curing. This continuous flow minimizes downtime and handling errors.
Superior E-coat Primer Foundation: The electrophoretic coating stage provides an exceptionally uniform, thin-film primer that offers outstanding corrosion resistance and excellent adhesion for subsequent topcoats. It penetrates recessed areas and covers edges thoroughly, which is difficult to achieve with spray methods alone.
Flexible Topcoat Application: Following the E-coat primer, the integrated spray and powder coating stations allow for a wide range of final finishes. You can apply high-gloss or matte liquid paints, or durable, environmentally friendly powder coatings, all within the same line.
Precision Control and Automation: The entire system is managed by an advanced PLC control system with a user-friendly touchscreen HMI. Key parameters like immersion time, voltage, temperature, and conveyor speed are precisely controlled for repeatable, high-quality results.
Energy-Efficient Curing: The curing ovens are designed for optimal heat distribution and insulation, available in electric, gas, or oil-fired configurations to suit your local utility preferences and improve energy efficiency.
Robust Construction: Built with high-grade stainless steel and corrosion-resistant materials for critical components like tanks and spray booths, ensuring long service life even in harsh chemical environments.
Technical Specifications Overview:
The following table outlines some of the customizable core parameters of our integrated coating line. Specific configurations are tailored based on your workpiece dimensions, desired output, and finish requirements.
| Parameter | Description / Options |
|---|---|
| Line Process Flow | Pretreatment → E-coat → Intermediate Cure → Spray/Powder Coating → Final Cure |
| Conveyor System | Overhead Monorail or Ground Conveyor; Speed adjustable (e.g., 0.5-3.0 m/min) |
| Max Workpiece Dimensions (LxWxH) | Customizable (e.g., up to 2000mm x 800mm x 1500mm typical) |
| E-coat Tank Capacity | Designed based on production volume and workpiece size |
| Curing Oven Temperature Range | Typically 160°C - 220°C (adjustable for different coatings) |
| Control System | Programmable Logic Controller (PLC) with Touch Screen Human-Machine Interface (HMI) |
| Power Supply | Customizable (e.g., 380V/50Hz 3-phase or as per local standards) |
Benefits for Your Business:
Enhanced Product Quality: Achieve a flawless, durable finish with excellent corrosion protection, increasing the market value and lifespan of your products.
Increased Production Efficiency: A continuous, automated line significantly boosts throughput, reduces labor dependency, and minimizes bottlenecks between coating stages.
Reduced Operational Costs: Integration saves floor space, lowers energy consumption through optimized oven design, and improves paint/powder transfer efficiency, reducing material waste.
Process Consistency and Control: Automated controls ensure every workpiece receives identical treatment, eliminating human error and guaranteeing batch-to-batch consistency.
Scalability and Flexibility: The modular design allows for future expansion or process modifications as your product mix or volume changes.
Backed by our ISO9001-certified quality management system and over 12 years of manufacturing experience since 2011, Deqing Leixin delivers reliable and robust coating equipment. Our factory, spanning 1,000-3,000 square meters and staffed by a dedicated team of 51-100 professionals, has successfully supplied integrated lines to diverse markets across Southeast Asia, Africa, the Middle East, and beyond, with an annual export value reaching up to US$1.5 Million. This track record underscores our capability to understand and meet the specific demands of international B2B clients. Choosing our integrated electrophoretic coating line means investing in a solution built for longevity, performance, and a strong return on investment. We invite you to contact us with your project specifications to discuss a customized proposal that will elevate your manufacturing capabilities.
Frequently Asked Questions (FAQ)
Q: What is the primary advantage of integrating E-coat with spray/powder coating?
A: The key advantage is combining processes. E-coat provides an unbeatable, uniform primer layer for corrosion resistance, while the spray/powder stations offer a wide selection of final colors, textures, and enhanced durability for the topcoat, all in one efficient line.Q: Can this line handle both small components and large assemblies?
A: Yes. The system is fully customizable. We design the conveyor system, tank sizes, and booth dimensions based on your specific workpiece size range and production volume requirements.Q: How automated is the system? What level of manual intervention is needed?
A: The line can be designed from semi-automated to fully automated. Typically, loading/unloading might be manual or automated, while the coating, curing, and transfer processes are fully controlled by the PLC, requiring minimal operator oversight.Q: What kind of pretreatment is included, and why is it necessary?
A: The integrated line includes stages for degreasing, rinsing, and often phosphating or other chemical conversion coatings. This pretreatment is critical to remove oils and contaminants and create a surface that ensures optimal adhesion and performance of the subsequent E-coat layer.Q: Is the powder coating recovery system included?
A: Yes, a powder coating booth with an efficient recovery system (cyclone and filter) is typically included in the integrated line design. This system recycles overspray powder, significantly improving material utilization and reducing waste.Q: What are the energy source options for the curing ovens?
A: We offer ovens powered by electricity, natural gas, or oil, allowing you to choose the most cost-effective and available energy source for your facility.Q: Do you provide installation supervision and operator training?
A: Yes, we offer comprehensive support services. This can include on-site installation guidance by our engineers, commissioning of the line, and detailed operational and maintenance training for your staff.Q: What is the typical lead time for a custom-integrated line like this?
A: Lead time varies based on the complexity and scale of the system. After finalizing the design, production typically takes several months. We provide a detailed project timeline during the quotation process.
