Help CenterGantry Type Automatic E-Coating Production Line for Metal Workpieces
Product Spotlights
Related Products
-
High-Speed Gantry Electrophoretic Coating Line for Metal Fabrication PartsNegotiableMOQ: 1 Set -
Custom Gantry Electrophoretic Coating Line for Automotive Component FinishingNegotiableMOQ: 1 Set
-
Gantry Transport Type Electrophoretic Coating Line for Industrial WorkpiecesNegotiableMOQ: 1 Set
-
Compact E-Coating System for Small Metal Components in Automotive & Medical Device ProductionNegotiableMOQ: 1 Piece
-
Small-Scale Electrophoretic Coating Equipment for Precision Metal Parts, Stainless Steel TankNegotiableMOQ: 1 Piece
As a dedicated manufacturer of coating equipment since 2011, Deqing Leixin Coating Equipment Co., Ltd. specializes in delivering robust and efficient finishing solutions. Our Gantry Type Automatic E-Coating Production Line represents our commitment to advancing metal surface treatment technology. Designed for high-volume, consistent, and quality-conscious operations, this automated line streamlines the electrophoretic coating process for various metal workpieces, ensuring superior corrosion resistance, uniform film thickness, and enhanced aesthetic appeal with minimal manual intervention.
This production line integrates several critical stages into a cohesive, automated workflow, managed by a sophisticated PLC control system for precision and repeatability.

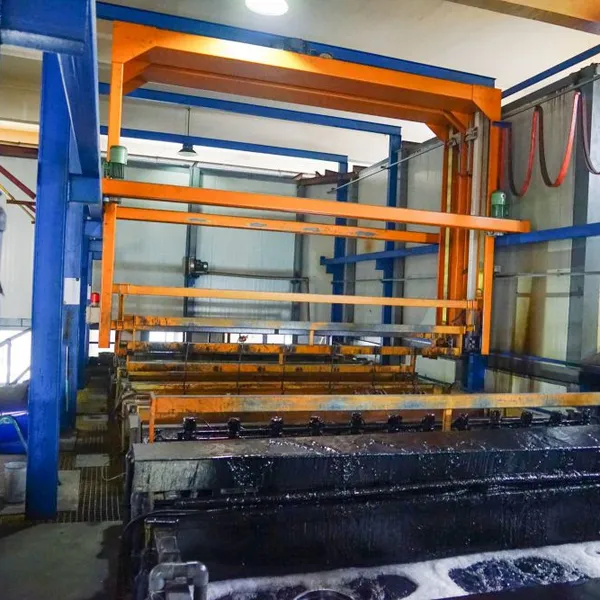

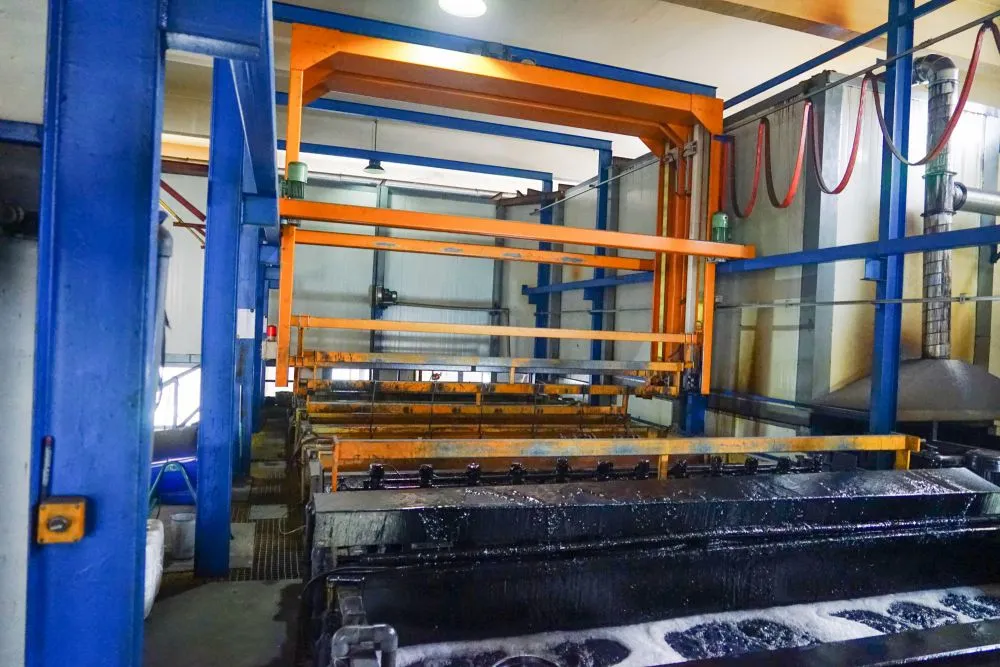

Automated Material Handling: The gantry system automatically transfers workpieces through each stage, reducing labor costs and handling errors.
Comprehensive Process Stages: The line typically includes pre-cleaning, degreasing, rinsing, electrophoretic coating, post-coating rinsing, curing, and final drying.
Precision Coating Control: Parameters like voltage, current, coating time, and bath temperature are automatically controlled for consistent results.
Adaptable Design: The layout and capacity can be customized to fit specific factory spaces and production throughput needs.
Energy and Resource Efficiency: Designed with features to minimize water, chemical, and energy consumption during operation.
Durable Construction: Built with corrosion-resistant materials for components exposed to the coating environment, ensuring long service life.

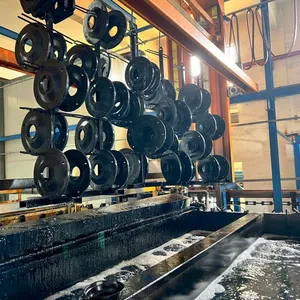

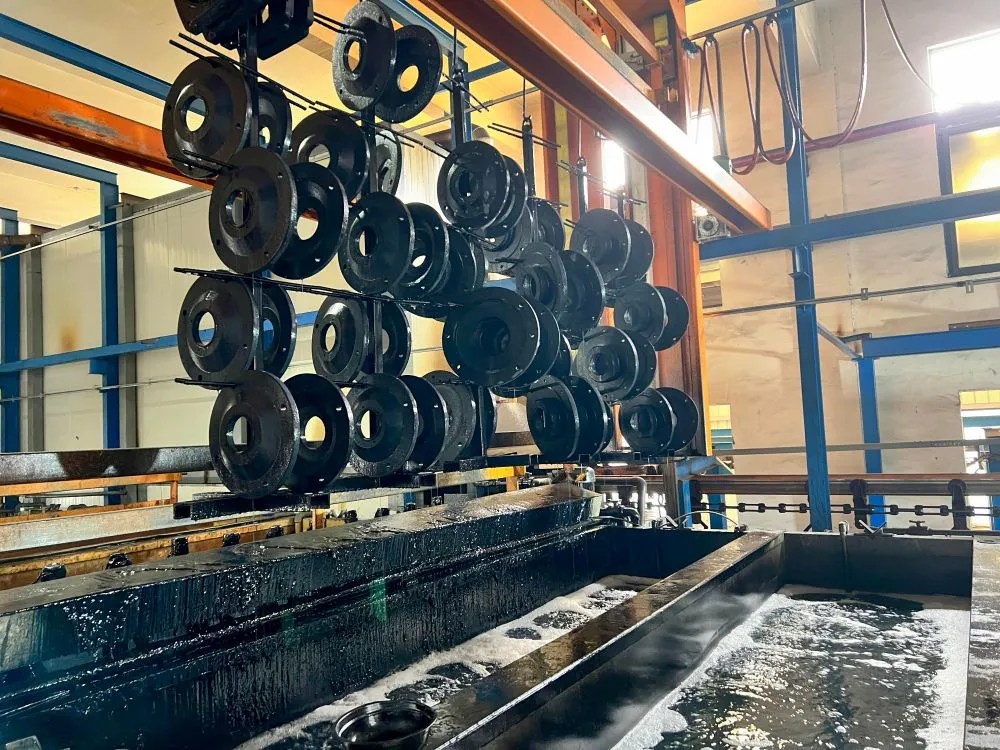

The technical execution of the E-coating process is central to the line's performance. Electrophoretic deposition creates a highly uniform, adhesive, and protective polymer film on the workpiece surface.
| Key Process Parameter | Typical Range / Feature | Impact on Quality |
| Coating Voltage | Adjustable, typically 50-400V | Controls film thickness and deposition rate |
| Coating Time | Programmable, 1-5 minutes | Determines final film build |
| Bath Temperature | Controlled, 20-30°C | Affects coating viscosity and stability |
| Film Thickness | 10-30 microns (customizable) | Provides desired corrosion protection |
| Curing Temperature | 150-200°C | Ensures film cross-linking and durability |
The advantages of implementing our automated E-coating line extend beyond just a quality finish.
Operational Efficiency: High throughput with automated transfer reduces cycle time and increases productivity.
Consistent Quality: Automated control eliminates human variability, ensuring every workpiece meets the same high standard.
Lower Operational Costs: Reduced labor, optimized chemical usage, and efficient resource management contribute to lower per-unit costs.
Improved Workplace Safety: Minimizes operator exposure to chemicals and manual handling risks.
Scalability: The system design allows for future integration or capacity expansion as production grows.
Environmental Compliance: Integrated rinse and recovery systems help manage waste and reduce environmental impact.
For your business, this translates into a reliable production asset that delivers durable, high-quality coated products, enhances your brand reputation for quality, and improves your bottom line through operational efficiencies.

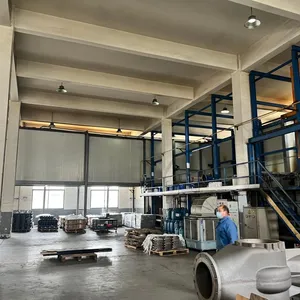

Our manufacturing expertise is backed by a solid track record. Operating from a 1,000-3,000 square meter facility with 51-100 skilled employees, we maintain an ISO9001 certified quality management system to ensure every production line meets stringent standards. We have successfully served markets across Southeast Asia, Africa, the Mid East, Eastern Asia, Central America, South Asia, and the Domestic Market, with an annual export value ranging between US$1 Million and US$1.5 Million. This global experience means we understand diverse operational requirements and can tailor solutions accordingly. Our line is engineered for durability and performance, offering a long-term solution to elevate your metal finishing capabilities. We invite you to contact us to discuss how this Gantry Type Automatic E-Coating Production Line can be configured to meet your specific production goals and drive your success.
Frequently Asked Questions (FAQ)
Q1: What types of metal workpieces can this line coat?
A: The line is suitable for a wide range of metals, including steel, aluminum alloys, galvanized steel, and other conductive metal substrates. The pre-treatment stage can be adjusted to prepare different surfaces effectively.
Q2: How is the "automatic" operation achieved?
A: Automation is driven by a Programmable Logic Controller (PLC). It controls the gantry movement, process timing, parameter settings (voltage, temperature), and sequence of stages, requiring minimal operator input for routine operation.
Q3: Can the production line capacity be customized?
A: Yes. The throughput (number of workpieces per hour) and the physical layout (length, number of tanks) are customizable based on your production volume, workpiece size, and available factory space.
Q4: What is the typical lead time for such a system?
A: Lead time depends on the complexity and level of customization. For standard configurations, it typically ranges from 60 to 90 days after final design confirmation. Detailed timelines are provided upon project quotation.
Q5: Does the line include waste treatment or recovery systems?
A: Basic rinse water circulation and filtration are often integrated. For specific environmental compliance needs, auxiliary waste treatment systems can be added as optional modules or recommended based on local regulations.
Q6: What kind of training or support is provided after installation?
A: We provide on-site installation guidance, operator training on system operation and basic maintenance, and detailed technical manuals. Remote support and a warranty period are also part of our service package.
Q7: How energy-intensive is the curing/drying stage?
A: The curing oven is designed for efficiency. Insulation, efficient burner or heater design, and heat recovery options (available upon request) help minimize energy consumption while achieving the required curing temperatures.
Q8: Are different colors or types of E-coat paint available?
A: The line is compatible with various electrophoretic paints (cathodic or anodic). Color options depend on the paint supplier. We can advise on paint selection and ensure the system parameters are set for your chosen paint type.
