Production Description
Our company designs and manufactures the waste air separator machine is mainly used for screening of urban waste, construction waste, the stale waste, After the air sorting machine system, the heavy material and light material can be separated.It is an important waste separation equipment in the waste sorting line.
Advantages of New type waste air separator plastic sorting machine garbage sorting equipment:
1. Separate materials with various gravity air volumes to effectively separate heavy waste (glass);
2. Improve the working environment through wind dust removal and air circulation;
3. Good cyclone system can effectively screen plastic film, paper and dust.
Working principle of New type waste air separator plastic sorting machine garbage sorting equipment:
The waste air separator plastic sorting machine uses aerodynamic principles, under the combined effect of positive pressure and negative pressure, the separation of light material plastic, paper, etc. The light material is output through the light material discharge conveyor, and the heavy material is output through the heavy material discharge conveyor. Adjustable air volume, wind pressure adjustment.
Whole Waste Sorting Production Line
Urban waste, construction waste, or stale waste enters the feeder — Belt conveyor — Waste trommel screen machine (which mesh sizes of 10-200mm. can sorting waste according to the material size) — Magnetic separator(sorting metal) — Air separation machine(Screening waste by material’s weight). Through this series of sorting process, plastic bottles, rubber, metals, cardboard, hard plastics, etc. are selected, finally, the selected light materials are balled by the baller machine.
Application Material:
Urban or Household waste: organic, inorganic, waste paper, plastic bags, fabrics, plastics, glass, metals, etc
Construction waste: muck, waste concrete, waste masonry and rubble, brick and tile fragments, waste mortar slurry, asphalt blocks, waste plastics, waste metal, waste bamboo and wood, industrial waste.All of these sorted waste can be recycled after reprocessing.
Specifications of Waste Sorting Line
Model |
JTS1500 |
JTS1800 |
JTS2000 |
JTS2200 |
JTS2500 |
Rated output |
50t/day |
100t/day |
200t/day |
300t/day |
500t/day |
Box feeder |
B800×4000 |
B1000×4000 |
B1200×4000 |
B1400×4000 |
B1400×7000 |
Trommel screen |
T1500*6000 |
T1800*6000 |
T2000*6000 |
T2200*8000 |
T2500*8000 |
Magnetic separator |
RCYD-6 |
RCYD-8 |
RCYD-10 |
RCYD-10 |
RCYD-12 |
Air separator |
GX-A60 |
GX-A80 |
GX-A100 |
GX-A120 |
GX-A160 |
Baller |
B30T |
GX-B80 |
GX-B100 |
GX-B120 |
GX-B160 |
Number of conveyors |
B650*6 |
B800*6 |
B1000*6 |
B1200*6 |
B1200*6 |
Floor area |
18m*58m |
19m*60m |
20m*62m |
22m*65m |
24m*77m |
Total Power |
84kw |
102kw |
135kw |
165kw |
222kw |
Main machines of the line

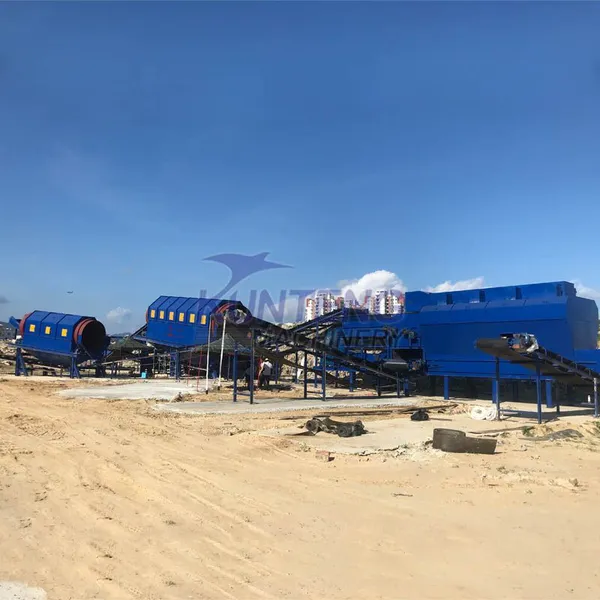

Successful Project
Company Profile
Kunteng Machinery founded in 1999, mainly focuses on design and manufacturing waste sorting production line. Trommel screen machine, air separation machine, magnetic separators, garbage bag breaking machine, New type waste air separator plastic sorting machine garbage sorting equipment,waste shredder machine, manual sorting tables, waste baling machine, chain plate feeder, belt conveyor.etc. Kunteng Machinery is a high-tech modern enterprise integrating scientific research and development, production and sales, engineering design, installation services. Our machine has passed ISO9001:2000 CCC,CE certification.Our machines has already spread over the world.We can provide customers with one-stop service and solutions, complete equipment, on-site installation, and after-sales support.
PACKING & SHIPPING
FAQ
Q1: Are you a factory or a trading company?
A1: We are a professional manufacturer in China
Q2: How long is the warranty period?
A2: Normally 12 months. Except for wearing parts.
Q3: What’s your delivery time??
A3: We will arrange for shipping in factory within 15 working days after receiving the advance payment.
We provide the entire waste sorting line, including factory design, circuit routing, equipment placement, etc. Please feel free to contact us for details. Welcome to factory to discuss business cooperation.
