Production Description
KUNTENG manufacturer focus on the waste sorting machines for many years.We design the most reasonable waste sorting solutions for customer, can disposal municipal waste,household waste,landfill stale waste,construction demolition waste.etc. The main purpose of waste sorting machines are reduction processing and turning waste into treasure.improve the added value of waste.

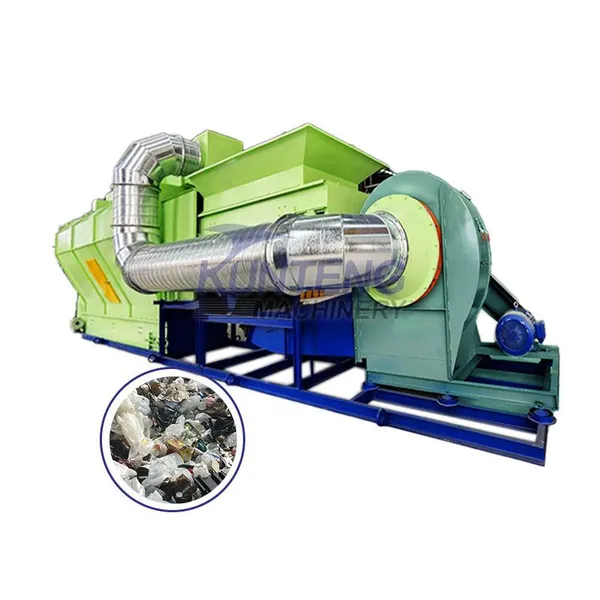

The Waste Winnowing Separator Machine air Separation Equipment for Waste Sorting Plant is used to separate the heavy material and light material from the mixed solid waste, It is an important waste sorting machine in the garbage recycling line.
Working principle of Waste Winnowing Separator Machine air Separation Equipment for Waste Sorting Plant:
The air separator sorting machine uses aerodynamic principles, under the combined effect of positive pressure and negative pressure, the separation of light material plastic, paper, etc. The light material is output through the light material discharge conveyor, and the heavy material is output through the heavy material discharge conveyor. Adjustable air volume, wind pressure adjustment.
KUNTENG waste sorting recycling plant equipments:
Waste Shredder / Bag-breaking Machine / Trommel Screen / Magnetic Separator / Eddy-Current Separator /Air Separator / Optical Sorting Systems / Conveying System / RDF&SRF Making Systems / Composting System / Pyrolysis System.
According to the customer's garbage type, design a special waste sorting plant for you.
Working flow of Waste Sorting Machine Garbage Separation System:
Urban waste, construction waste, or stale waste enters the feeder — Belt conveyor — Waste trommel screen machine (which mesh sizes of 10-200mm. can sorting waste according to the material size) — Magnetic separator(sorting metal) — Air separator machine(Screening waste by material’s weight). Through this series of sorting process, plastic bottles, rubber, metals, cardboard, hard plastics, etc. are selected, finally, the selected light materials are balled by the baller machine.
Specifications of Waste Sorting Line
Model |
JTS1500 |
JTS1800 |
JTS2000 |
JTS2200 |
JTS2500 |
Rated output |
50t/day |
100t/day |
200t/day |
300t/day |
500t/day |
Box feeder |
B800×4000 |
B1000×4000 |
B1200×4000 |
B1400×4000 |
B1400×7000 |
Trommel screen |
T1500*6000 |
T1800*6000 |
T2000*6000 |
T2200*8000 |
T2500*8000 |
Magnetic separator |
RCYD-6 |
RCYD-8 |
RCYD-10 |
RCYD-10 |
RCYD-12 |
Air separator |
GX-A60 |
GX-A80 |
GX-A100 |
GX-A120 |
GX-A160 |
Baller |
B30T |
GX-B80 |
GX-B100 |
GX-B120 |
GX-B160 |
Number of conveyors |
B650*6 |
B800*6 |
B1000*6 |
B1200*6 |
B1200*6 |
Floor area |
18m*58m |
19m*60m |
20m*62m |
22m*65m |
24m*77m |
Total Power |
84kw |
102kw |
135kw |
165kw |
222kw |
Customer Site
Waste sorting plant sorting recycling these waste materials:
Urban or Household waste: organic, inorganic, waste paper, plastic bags, fabrics, plastics, glass, metals, etc
Construction waste: muck, waste concrete, waste masonry and rubble, brick and tile fragments, waste mortar slurry, asphalt blocks, waste plastics, waste metal, waste bamboo and wood, industrial waste.All of these sorted waste can be recycled after reprocessing.
Stale waste:Combustible waste is sent to power plants as RDF, and organic soil can be recycled.
Company Profile
Kunteng Machinery founded in 1999, mainly focuses on design and manufacturing waste sorting machines. Trommel screen machine, air separation machine, magnetic separators, garbage bag breaking machine, waste shredder machine, manual sorting tables, waste baling machine, chain plate feeder, belt conveyor.etc. Kunteng Machinery is a high-tech modern enterprise integrating scientific research and development, production and sales, engineering design, installation services. Our machine has passed ISO9001:2000 CCC,CE certification.Our machines has already spread over the world.We can provide customers with one-stop service and solutions, complete equipment, on-site installation, and after-sales support.
PACKING & SHIPPING
FAQ
Q1: Are you a factory or a trading company?
A1: We are a professional manufacturer in China
Q2: How long is the warranty period?
A2: Normally 12 months. Except for wearing parts.
Q3: What’s your delivery time??
A3: We will arrange for shipping in factory within 15 working days after receiving the advance payment.
We provide the entire waste sorting line, including factory design, circuit routing, equipment placement, etc. Please feel free to contact us for details. Welcome to factory to discuss business cooperation.
