Product Introduction

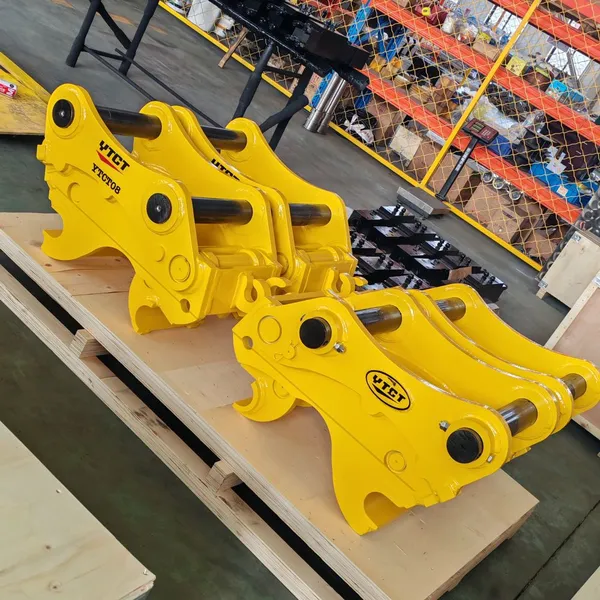

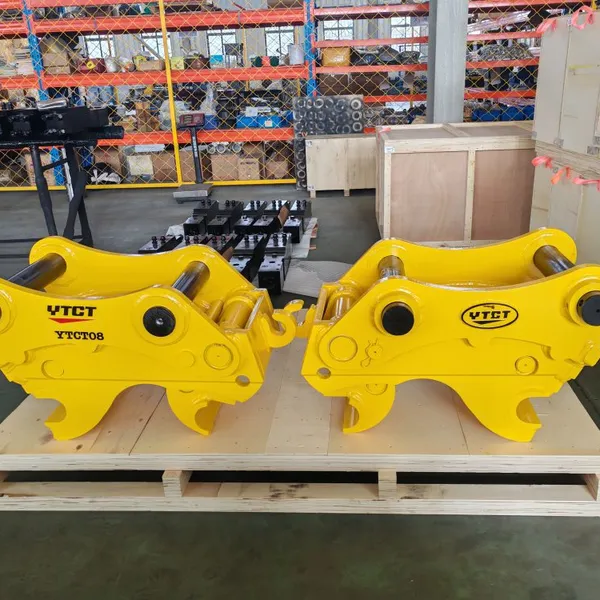

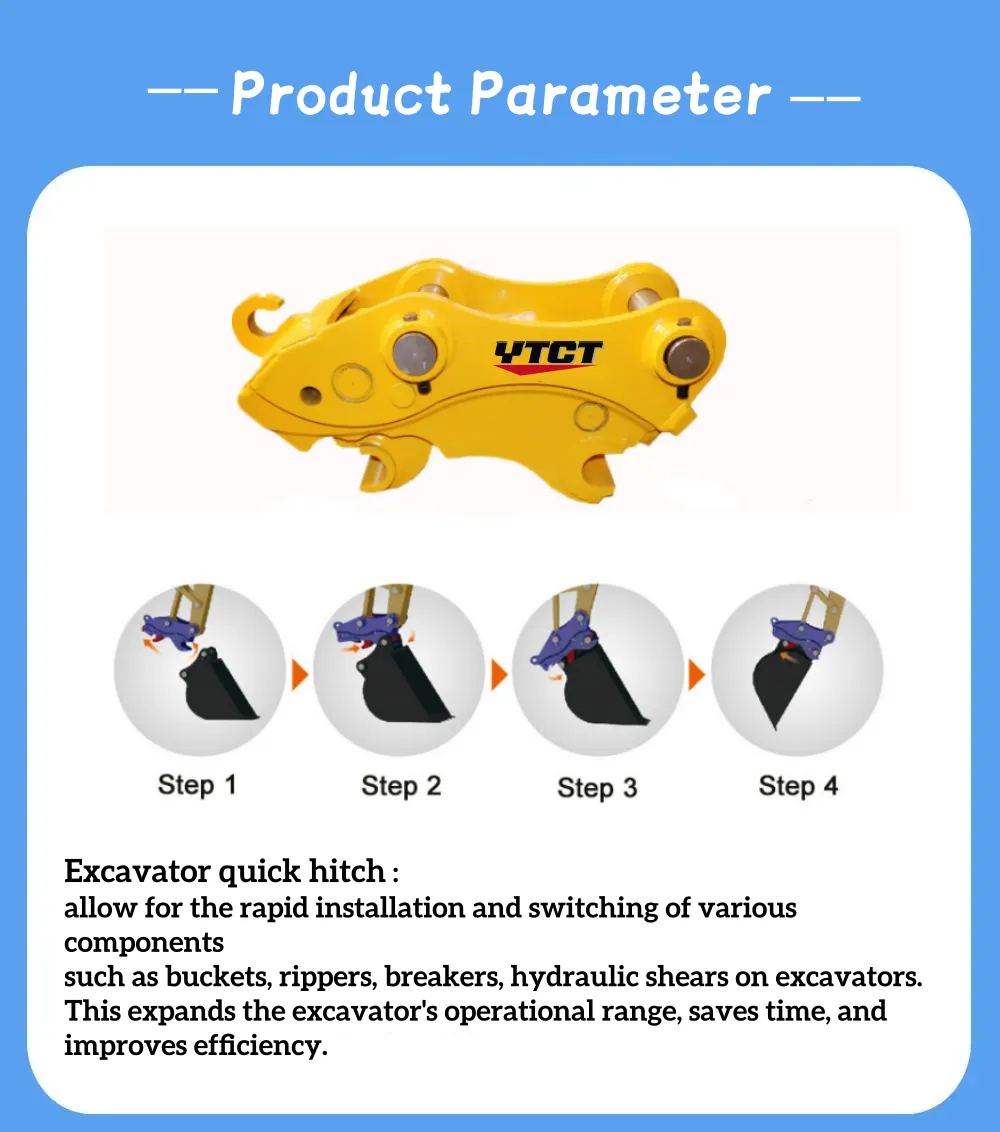

Excavator quick hitch also named quick coupler, is a popular excavator attachment widely used in construction machinery field.
It is designed to quickly connect and replace various excavator accessories including digging bucket,
hydraulic breaker, log grapple, rock grab and other working tools.

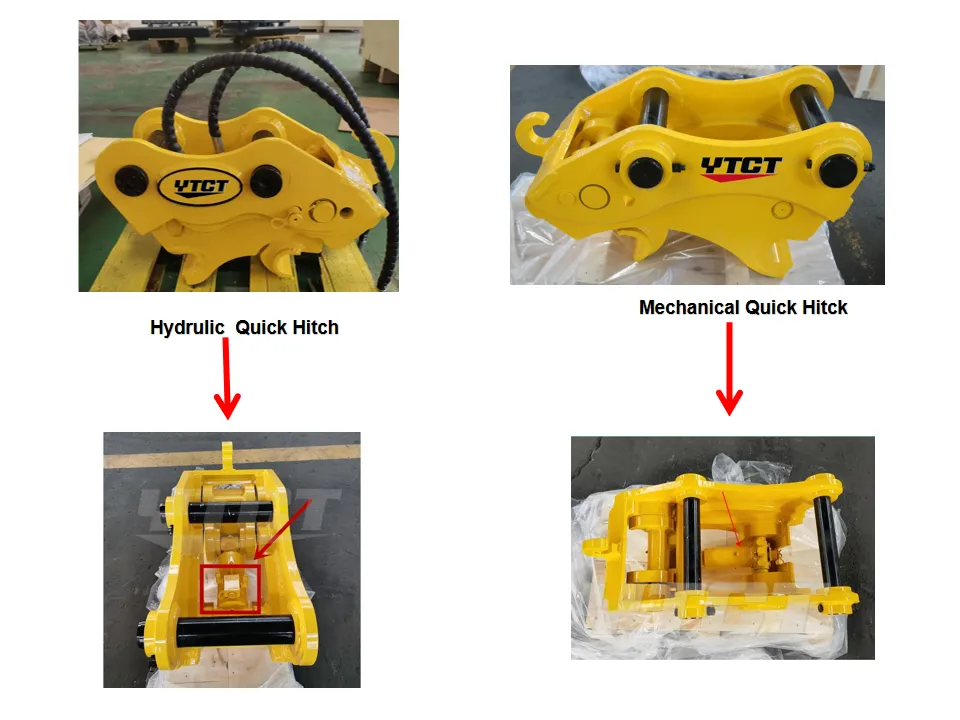

This quick hitch has two main types:
hydraulic type and mechanical type.
Hydraulic quick hitch adopts hydraulic control, easy to operate by driver inside cab.
Mechanical quick hitch needs manual operation, no need to refit oil circuit, more cost-effective.
Core Advantages

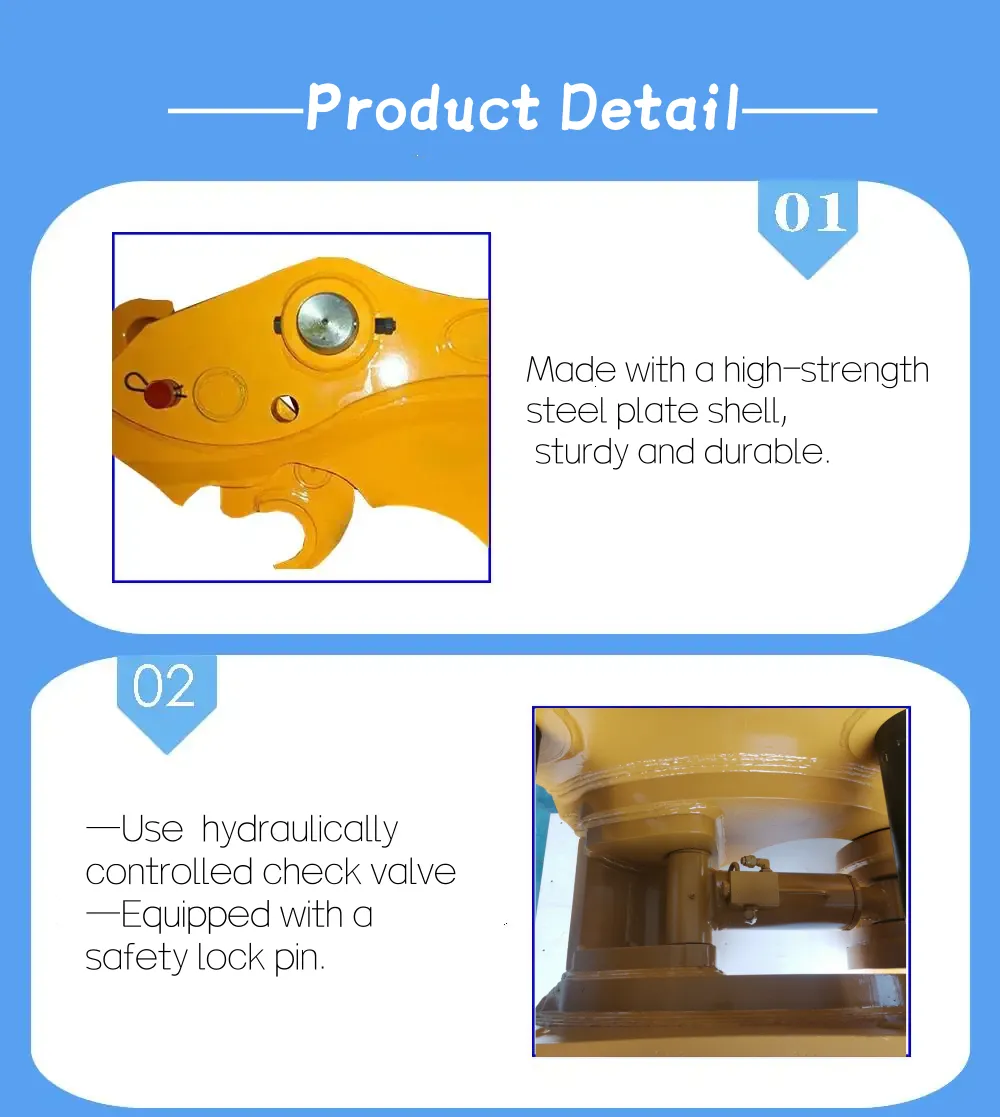

Adopting high strength steel material and integrated welding technology, the whole body is firm and durable,
equipped with double lock safety device to effectively prevent accessories from falling off during working,
greatly improving construction safety.
It features fast installation, simple operation, wide matching range,
suitable for mini excavator, backhoe loader and large excavators from 1 ton to 50 ton of all mainstream brands.
It can greatly save replacement time, reduce labor cost and improve overall working efficiency.
We support OEM & ODM customization, strict quality control, complete specifications,
CE certification, stable quality and factory direct sales.
We also provide professional installation video guidance and perfect after-sales service.
Product Specifications (Customizable)
Model |
Unit |
YTCT-TH900 |
YTCT- TH1600 |
YTCT -TH3200 |
YTCT -TH7000 |
YTCT-TH9000 |
YTCT-TH15000 |
Suitable Excavator Weight |
ton |
0.8-2.8 |
3-5 |
6-9 |
10-15 |
16-23 |
24-30 |
Drive Torque at 21MPa |
Nm |
900 |
1600 |
3200 |
7000 |
9000 |
15000 |
Holding Torque at 21MPa |
Nm |
2400 |
4400 |
7200 |
20000 |
26000 |
43000 |
Tilting Motor Working Pressure |
bar |
210 |
210 |
210 |
210 |
210 |
210 |
Tilting Motor Oil Flow |
Ipm |
5-16 |
5-16 |
5-16 |
19-58 |
22-67 |
35-105 |
Hitch Cylinder Working Pressure |
bar |
25-300 |
25-300 |
25-300 |
25-300 |
25-300 |
25-300 |
Hitch Cylinder Oil Flow |
lpm |
15-25 |
15-25 |
15-25 |
15-25 |
17-29 |
15-25 |
Tilting Angle |
degree |
180 |
180 |
180 |
180 |
180 |
134 |
Tilting Hitch Weight |
kg |
82 |
120 |
155 |
280 |
420 |
500 |
Dimension （L*W*H) |
mm |
477*280*567 |
518*310*585 |
582*350*649 |
720*450*784 |
800*530*864 |
858*500*911 |

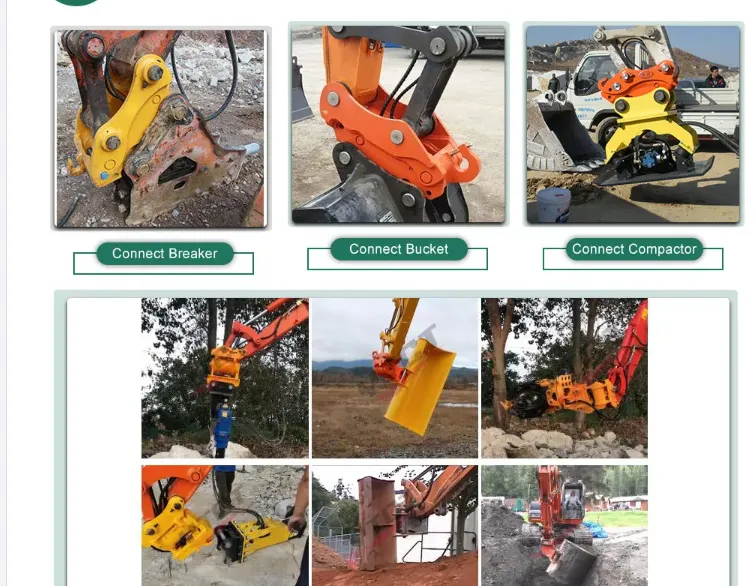

Application Scenarios
Road building & maintenance
House construction & demolition
Farm & garden landscaping
River dredging & water conservancy
Municipal engineering construction
Quarry and mining operation
Site cleaning & waste handling
After-Sales Service
1. Warranty: 6-12 months warranty for core parts (piston, cylinder, main valve), 3 months for wearing parts (seal, bolt).
2. Spare Parts: Timely supply of genuine spare parts (chisel, bushing, accumulator) to avoid project delays.
3. Technical Support: Professional team provides on-site installation guidance and after-sales maintenance service anytime.
More Product

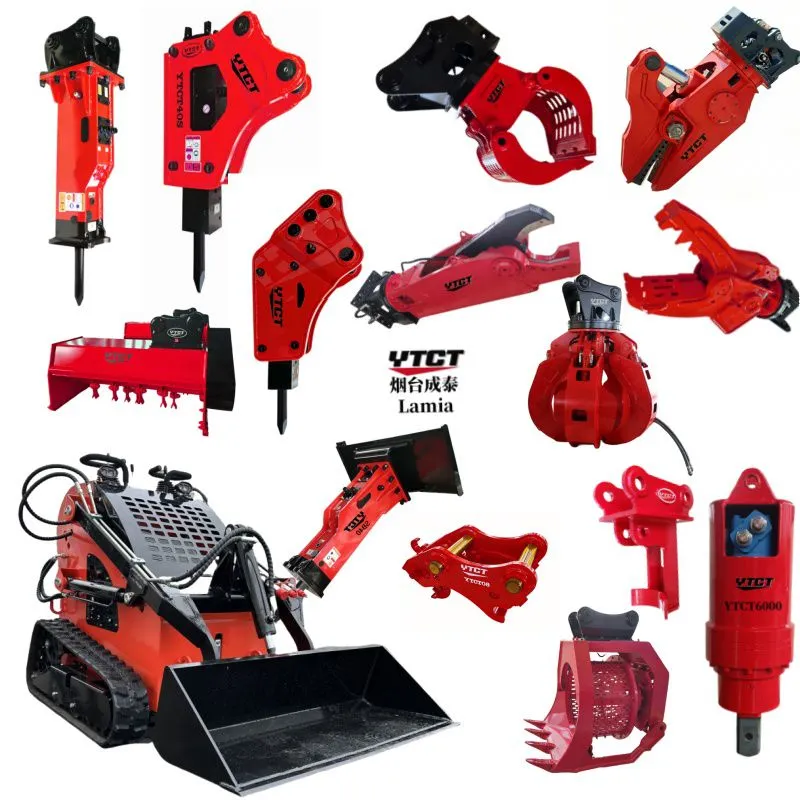

YTCT develop and produce different types of excavator attachments, provide one-stop purchasing service.
Our main products are log / wood grapple, rock / stone grapple, steel grapple, quick coupler, hydraulic plate compactor,
rotary screening bucket, crusher bucket, heavy duty shear, demolition shear, hydraulic pulverizer, orange peel grapple,
car dismantling shear, sleeper changer...
FAQ
Q: Can we customize the hydraulic breaker according to our excavator model?
A: Yes, we support customization of chisel diameter, type and size to match your equipment.
Q: What is the delivery time?
A: 7-15 working days for standard models, 15-25 days for customized models.
Q: Do you provide samples?
A: Yes, samples are available, and the sample fee can be deducted from the formal order.
