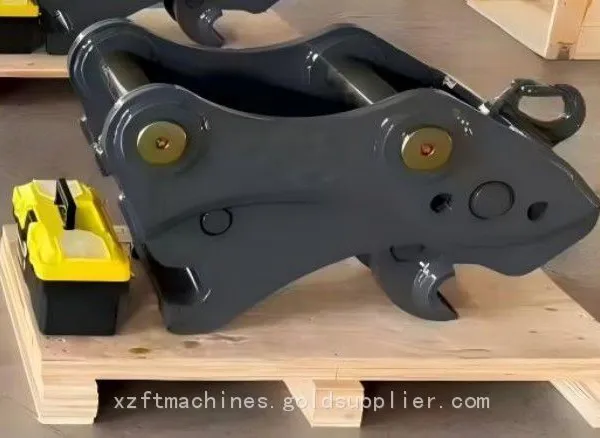

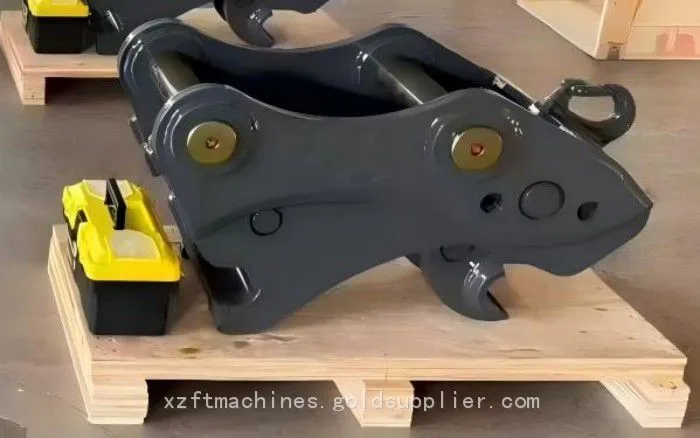

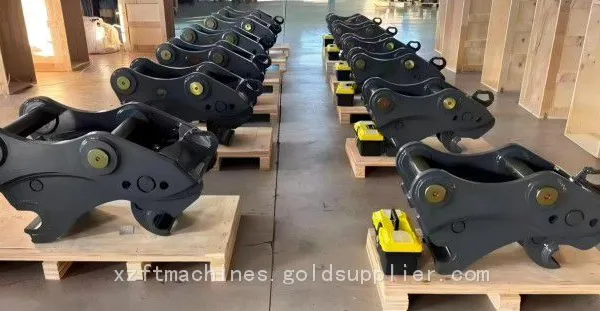

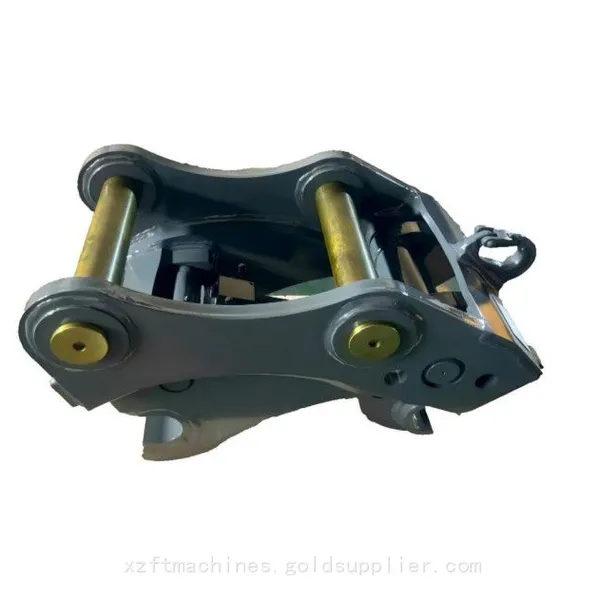

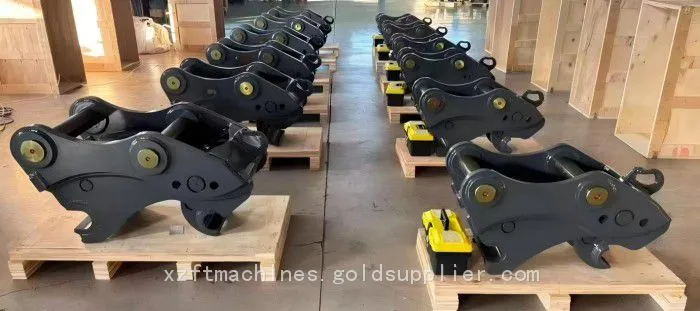

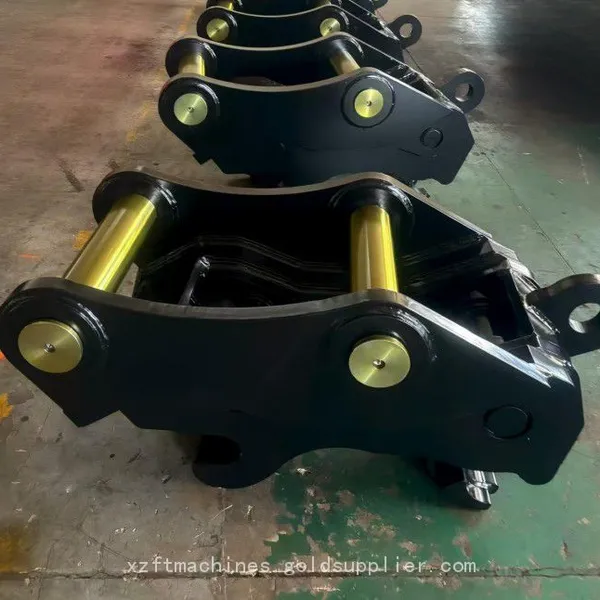

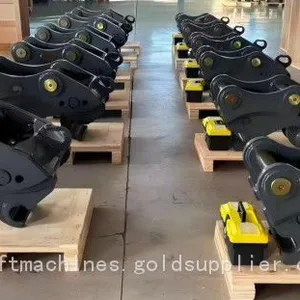

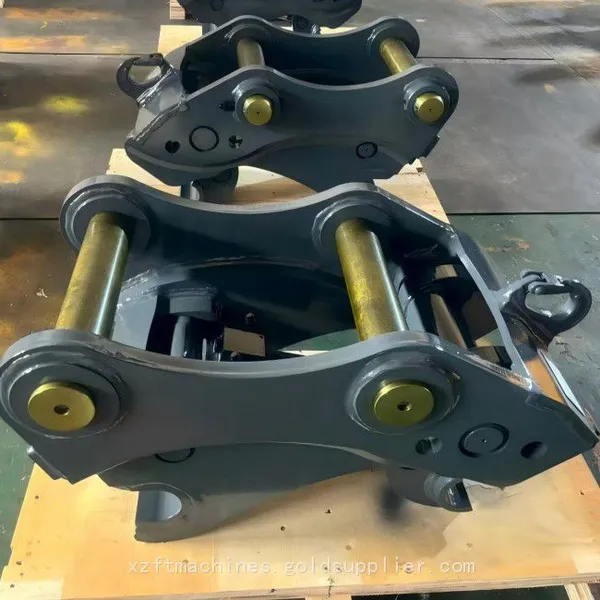

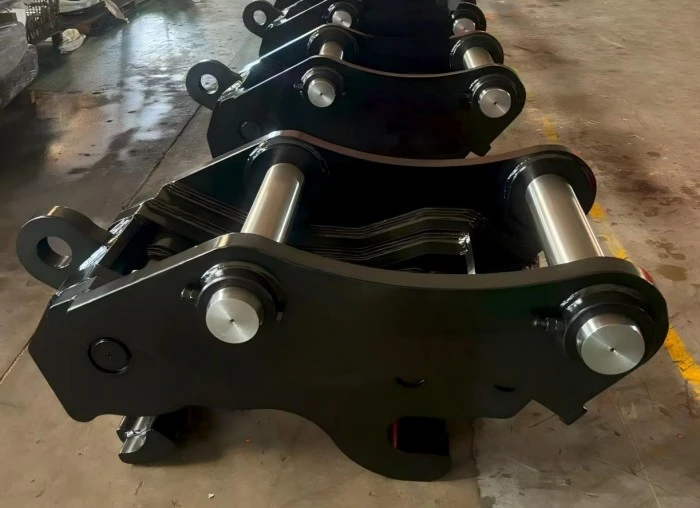

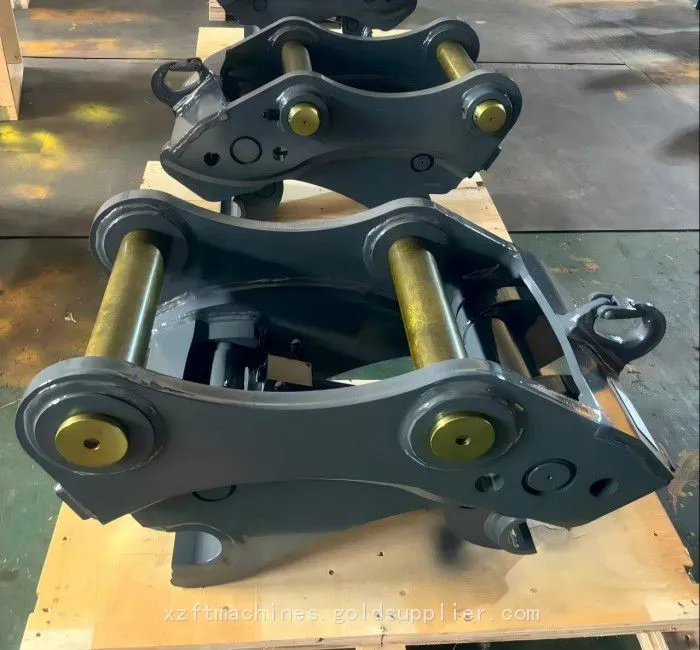

20T excavator quick coupler with safe lock valve hydraulic quick hitch for sale
Pin diameter: 80mm
Type: Single lock design, normal hydraulic type quick coupler
Logo: XZFT Attachments, or customized
Painting color: customized acceptable
OEM/ODM： Aaccetable
Leading time: 10-15 days after payment, according to order quantity
HS code: 84314100
Origin: China
Application：
XZFT excavator hydraulic quick coupler/ hydraulic quick hitch is used with construction machines to allow the rapid change of buckets and attachments on the machine. It removes the need to use hammers to manually drive out and insert the mounting pins for attachments. It can be used on the excavator, mini-excavator, backhoe loader, and so on.
| Specification for Hydraulic Quick Coupler | |||||||||
| Excavator Model | Ton | 0.8-4 | 4-6 | 6-9 | 10-16 | 18-25 | 25-26 | 26-30 | 30-40 |
| Arm open width | mm | 82-180 | 155-172 | 181-205 | 230-317 | 290-345 | 300-350 | 345-425 | 380-450 |
| Pins center distance | mm | 95-220 | 220-275 | 290-350 | 350-400 | 430-480 | 450-505 | 485-530 | 550-600 |
| Pin diameter | mm | 20-45 | 40-45 | 45-55 | 50-70 | 70-90 | 90 | 90-100 | 100-110 |
| Cylinder strok | mm | 95-200 | 200-300 | 300-350 | 340-440 | 420-510 | 450-530 | 460-560 | 510-580 |
| Weight | kg | 30-40 | 50-75 | 80-110 | 170-210 | 350-390 | 370-410 | 410-520 | 550-750 |
Advantages:
1. Fit to 5-90 ton excavator; Q345B +NM400 material with advanced mechanical design
2. Long service life.
3. Driven by a hydraulic system, the operator can easily switch attachments by turning on the switch in the cab.
4. Equipped with a check valve on the cylinder, the attachment will not drop off even when some failures happen like hoses burst.
5. Mechanical safety pin increases its safety.
Main products: Excavator standard bucket, heavy duty bucket, rock bucket, sieve bucket, mud bucket, tilt bucket, rake bucket, ripper ect.
More excavator attachment for choosing: V shape bucket, rotating screen bucket, vibrating compactor, rotating stone grapple, hydraulic grapple, quick coupler, hydraulic shears, concrete pulverizer, asphalt drum cutter, crusher bucket and so on; also supply skid steer loader buckets, sweeper, pallet fork and more.
