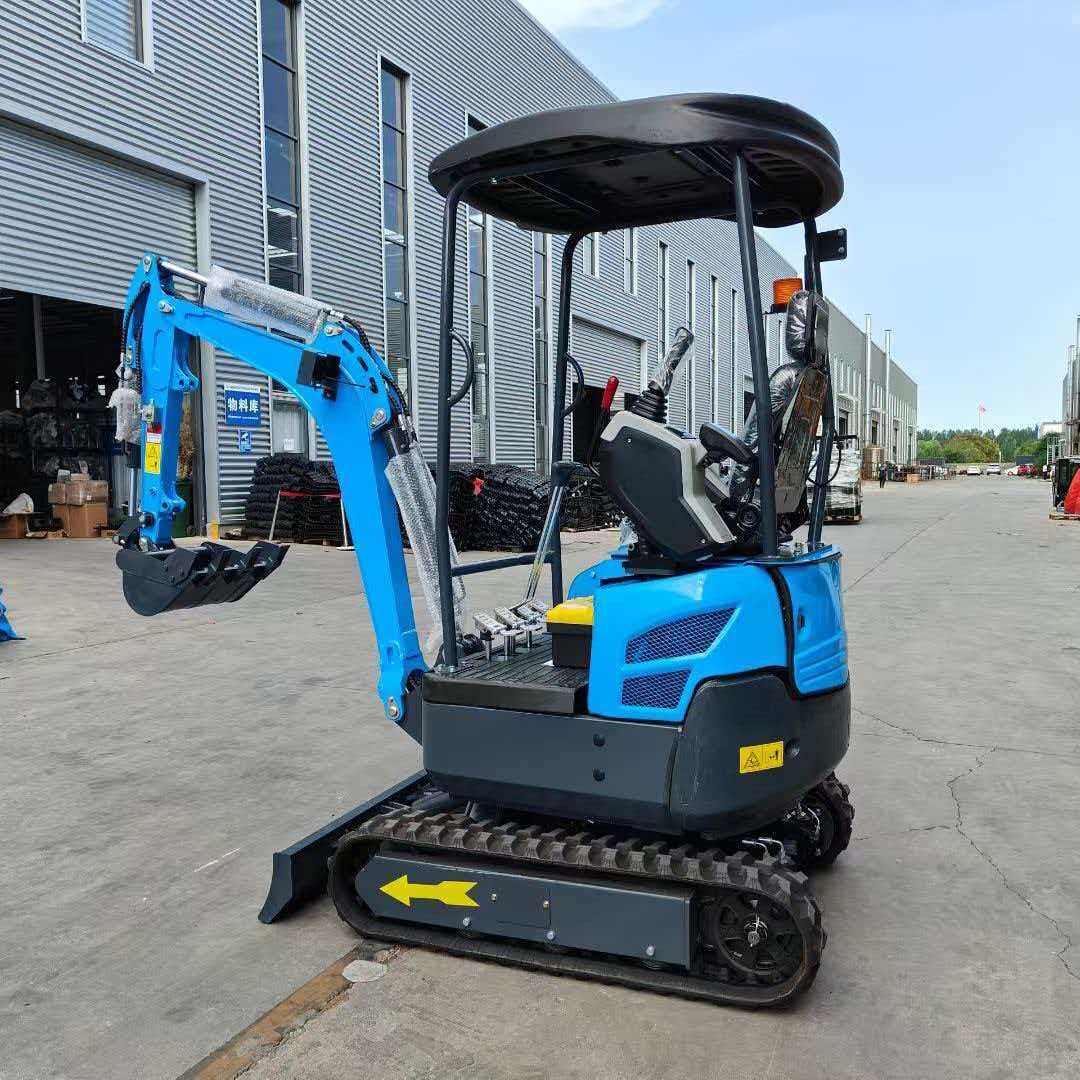

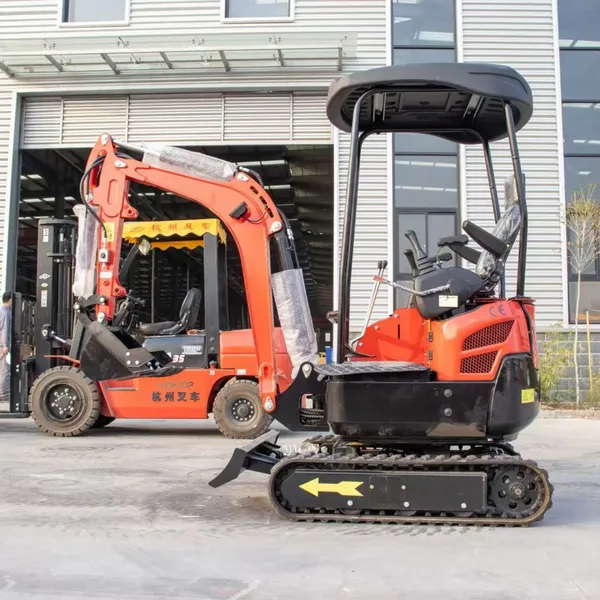

Xuzhou Guozi Intelligent Technology Co., Ltd., located in the industrial hub of Xuzhou, China, proudly presents our Compact 0.8 Ton Mini Excavator – an engineering solution designed for precision work in confined spaces. This versatile machine integrates a hydraulic quick hitch system that enables rapid attachment changes, transforming it from an excavator to a breaker or auger in minutes. With its ultra-compact footprint and zero-tail-swing design, operators can navigate narrow urban alleyways and residential properties without compromising power or stability.
Core Technical Specifications:
Hydraulic System: Advanced dual-pump flow control delivers 24 L/min maximum flow rate with independent circuit management for simultaneous arm, boom, and travel operations
Structural Integrity: Reinforced BOOM and ARM constructed with WGJ785 high-tensile steel plates, stress-tested to withstand 150% of rated load capacity
Undercarriage: 1.4m track length with 200mm rubber pads provides 0.25kg/cm² ground pressure for minimal surface damage
Operator Environment: ROPS/FOPS certified canopy with adjustable mechanical suspension seat and intuitive ISO-pattern controls
| Parameter | Value |
|---|---|
| Engine Model | Lifan 170F (Air-cooled diesel) |
| Rated Power | 6.3 kW @ 2600 rpm |
| Transport Width | 780 mm |
| Max Travel Speed | 2.5 km/h |
| Swing Torque | 1.2 kN·m |
Operational Advantages:
Attachment Versatility: The hydraulic quick coupler accepts standard European-style attachments including buckets (digging/trenching), breakers, augers, and rakes without manual pin removal
Precision Control: Proportional auxiliary hydraulics deliver smooth attachment operation with 360° continuous rotation capability
Maintenance Efficiency: Centralized grease points and side-opening engine cover reduce service time by 40% compared to conventional models
Safety Features: Automatic hydraulic lockout system engages when operator leaves seat, with emergency shutdown override
This mini excavator demonstrates particular effectiveness in urban infrastructure projects where space constraints prohibit larger equipment. Landscape contractors report 30% faster project completion when switching from manual labor to this machine for tasks like:
Trenching for utility lines in developed areas
Precision foundation digging for garden structures
Pool excavation with minimal site disturbance
Snow removal operations with blade attachment
Backed by Xuzhou Guozi Intelligent Technology's decade of engineering expertise in compact construction machinery, this excavator undergoes 72-hour continuous operation testing before shipment. Our Jiangsu manufacturing facility utilizes robotic welding and CNC machining to maintain dimensional tolerances within ±0.5mm. Clients benefit from our modular component design which allows field-replacement of major assemblies within 4 hours, minimizing downtime.
Frequently Asked Questions:
Q: What is the minimum working width this excavator can operate in?
A: With its 780mm body width and zero tail swing, it operates comfortably in 900mm wide passages.Q: Can I use third-party attachments with the quick hitch?
A: Yes, the hitch complies with ISO 13031 coupling interface standards for cross-brand compatibility.Q: What maintenance intervals does the hydraulic system require?
A: Hydraulic oil changes every 500 operating hours, with filter replacement at 250-hour intervals.Q: Is rubber track replacement complicated?
A: Our segmented track design allows individual pad replacement in 15 minutes without disassembling the undercarriage.Q: What warranty coverage is provided?
A: 12-month structural warranty with 6-month coverage for hydraulic components.Q: Can it be transported in a pickup truck?
A: Yes, at 800kg operating weight, it can be loaded onto a 1-ton capacity trailer.
Contact our engineering team at Xuzhou Guozi Intelligent Technology for site-specific configuration advice. We provide comprehensive operator training manuals and 3D assembly diagrams with every unit. Explore our attachment bundles for specialized applications – request our product configurator tool to optimize your investment.
