Hydraulic Eagle Shear | Scrap Demolition Shear for Excavator
Hydraulic Eagle Shear, Scrap Shear, Demolition Shear, Excavator Hydraulic Shear, S, Ship Dismantling Shear
Product Overview

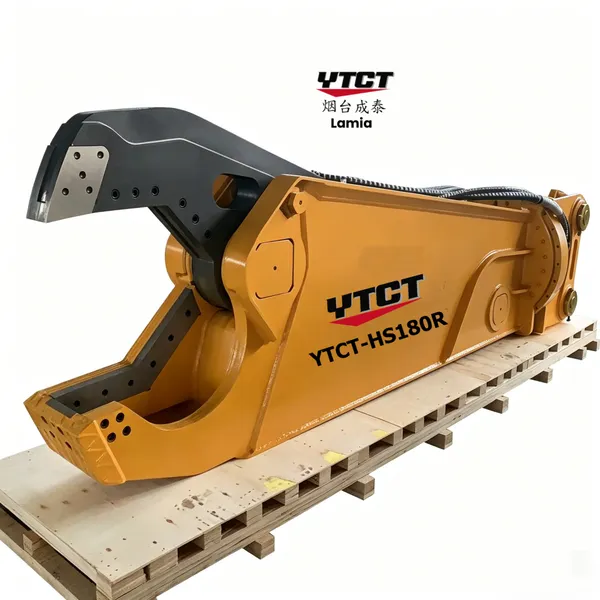

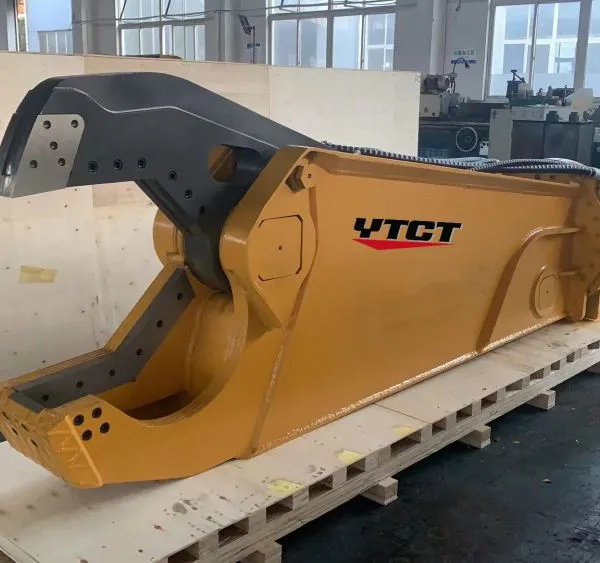

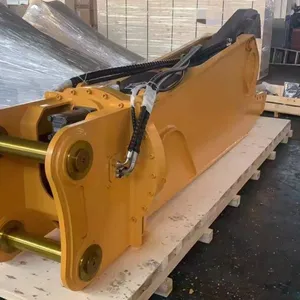

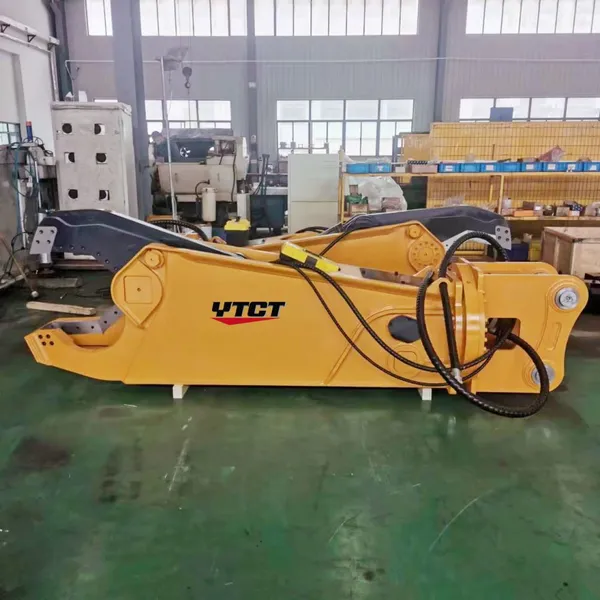

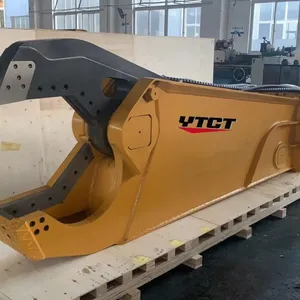

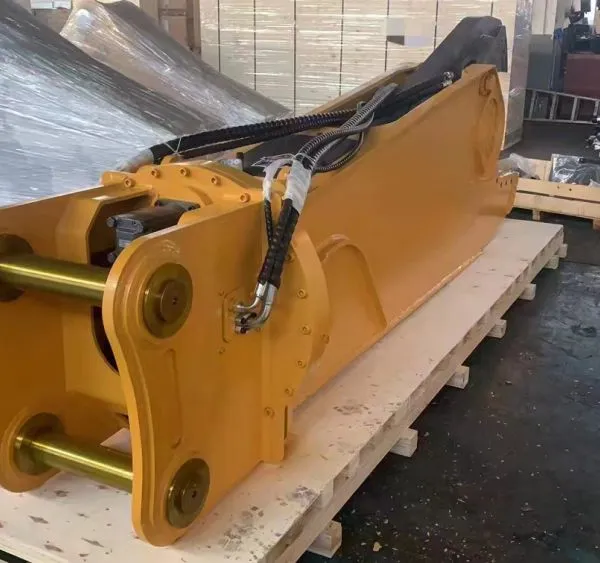

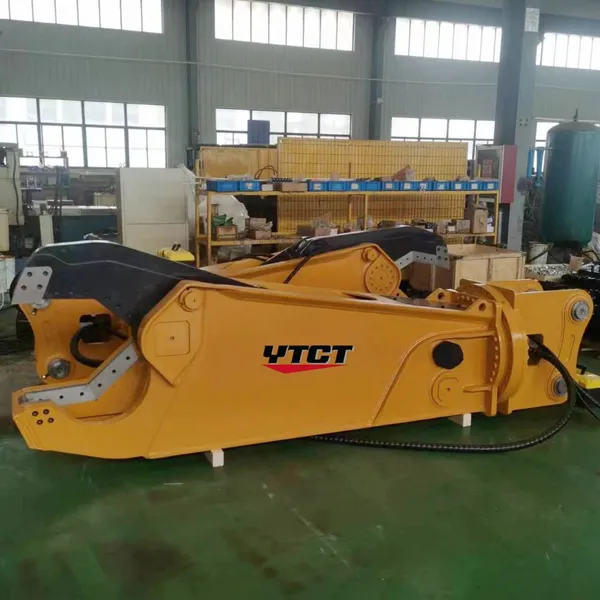

YTCT Hydraulic Eagle Shear is a high-efficiency, heavy-duty hydraulic cutting tool designed for excavators (18–50 tons).
It is widely used in steel scrap recycling, building demolition, ship dismantling, automobile crushing and emergency rescue. With powerful cutting force, durable structure and flexible operation, it effectively improves work efficiency and reduces labor costs.
Core Features & Advantages
Super Strong Cutting Force: Single-cylinder large thrust design, easily cuts H-beams, steel pipes, carriage frames and steel bar bundles, meeting various heavy-duty cutting needs.
Durable & Long Service Life: Blades are made of imported German alloy steel, which is high-temperature resistant and deformation resistant; the diamond/quadrilateral blade can be flipped 3 times for use, tripling the service life. The main body is welded with Hardox 400/500 wear-resistant steel, which is impact-resistant and wear-resistant.
Flexible & Precise Operation: Equipped with 360° rotating motor with brake, which can be positioned accurately; bidirectional guidance design ensures stable operation of the knife arm without deviation. The puncture tip is fixed by bolts, which can be replaced quickly within 15 minutes.
Wide Working Conditions: Suitable for high-altitude demolition, underwater operation, high-temperature and dust environments, with strong adaptability.
Leak-Proof & Reliable: Adopts well-known brand oil cylinder (such as Hengli) and imported NOK oil seal, which is anti-leakage and anti-aging; the central pin shaft is adjustable to maintain precise engagement for a long time.

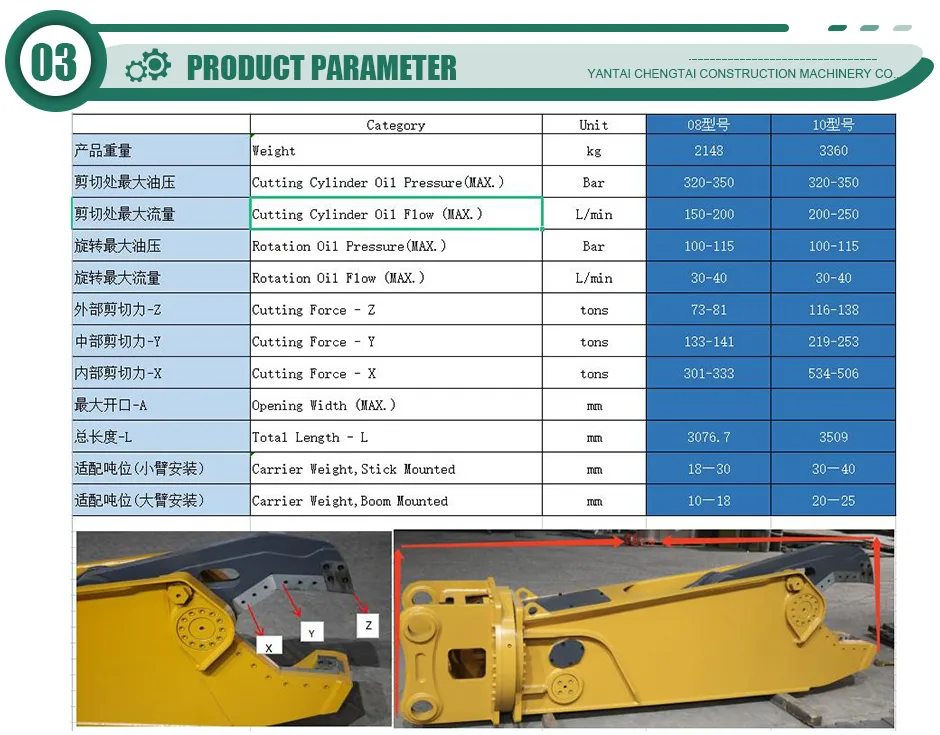

Technical Parameters (Main Models Reference)
Parameter Item |
Unit |
Small Size |
Medium Size |
Large Size |
|---|---|---|---|---|
Matching Excavator Tonnage |
ton |
18–25 |
25–35 |
35–50 |
Overall Weight |
kg |
600–1400 |
1800–2500 |
3000–4500 |
Maximum Opening |
mm |
330–550 |
500–700 |
700–800 |
Cutting Depth |
mm |
450–550 |
550–650 |
650–790 |
Tip Cutting Force |
ton |
80–120 |
120–160 |
160–220 |
Working Pressure |
bar |
320 |
320–350 |
350 |
Flow Requirement |
L/min |
150–220 |
200–300 |
280–380 |
Rotation Angle |
° |
360 |
360 |
360 |

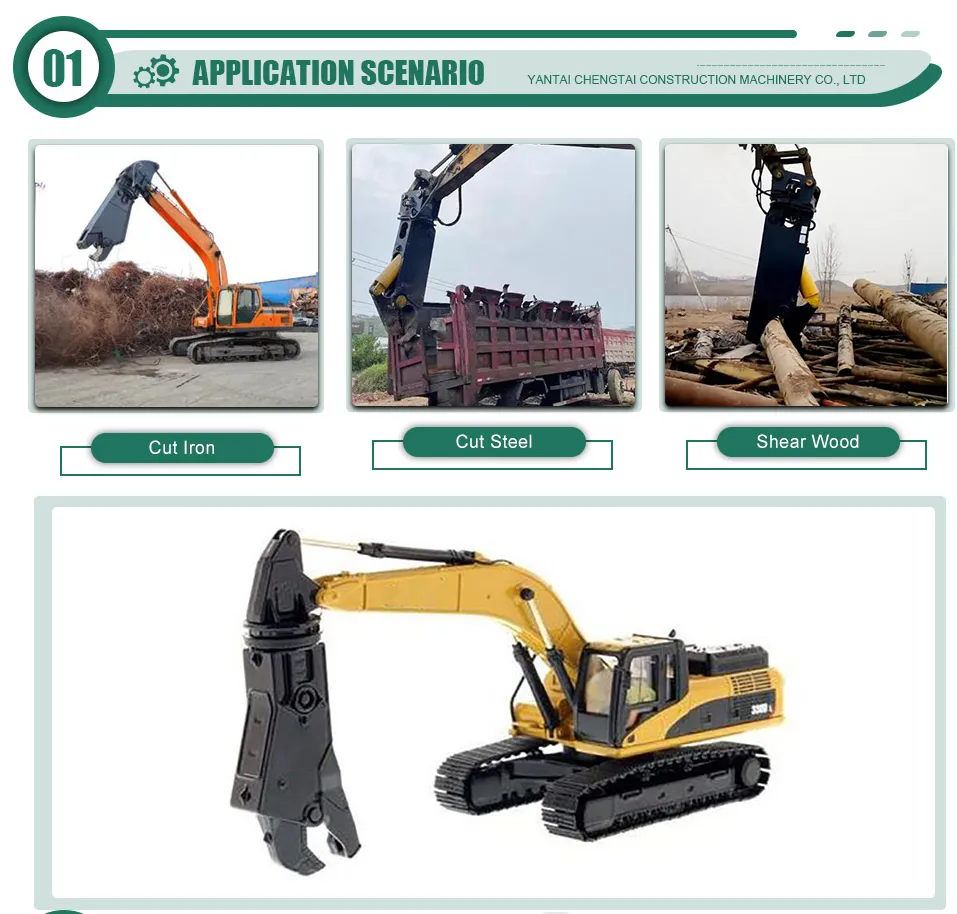

Application Scenarios
Building Demolition: Demolition of steel structure workshops, beams, columns and frames.
Steel Scrap Recycling: Cutting of steel mill waste, scrapped automobiles, carriages and steel bars.
Ship Dismantling: Cutting of hulls, decks and ribs.
Bridge Demolition: Cutting of steel beams and trusses.
Emergency Rescue: Demolition of metal structures in traffic accidents and earthquake ruins.
Standard Configuration & Optional Accessories
Standard Configuration
Hydraulic eagle shear main unit (including cutter body, oil cylinder, rotating motor)
One set of original blades (4 pieces)
High-strength pin shaft + seals
Connecting flange/quick change connector
English manual + CE/ISO certificate
Optional Accessories
Hydraulic/mechanical quick change connector
Spare blade set
High-pressure oil pipe + connector
Remote lubrication system
Warranty & After-Sales Service
Warranty Period: 12 months for the whole machine, 3–6 months for wearing parts (blades, oil seals).
After-Sales Service: Provide installation guidance, operation training and remote fault diagnosis; OEM/ODM customization is supported.
Contact Us
If you have any questions about the product model selection, customization or price, please contact us, and we will provide you with professional solutions within 24 hours.
