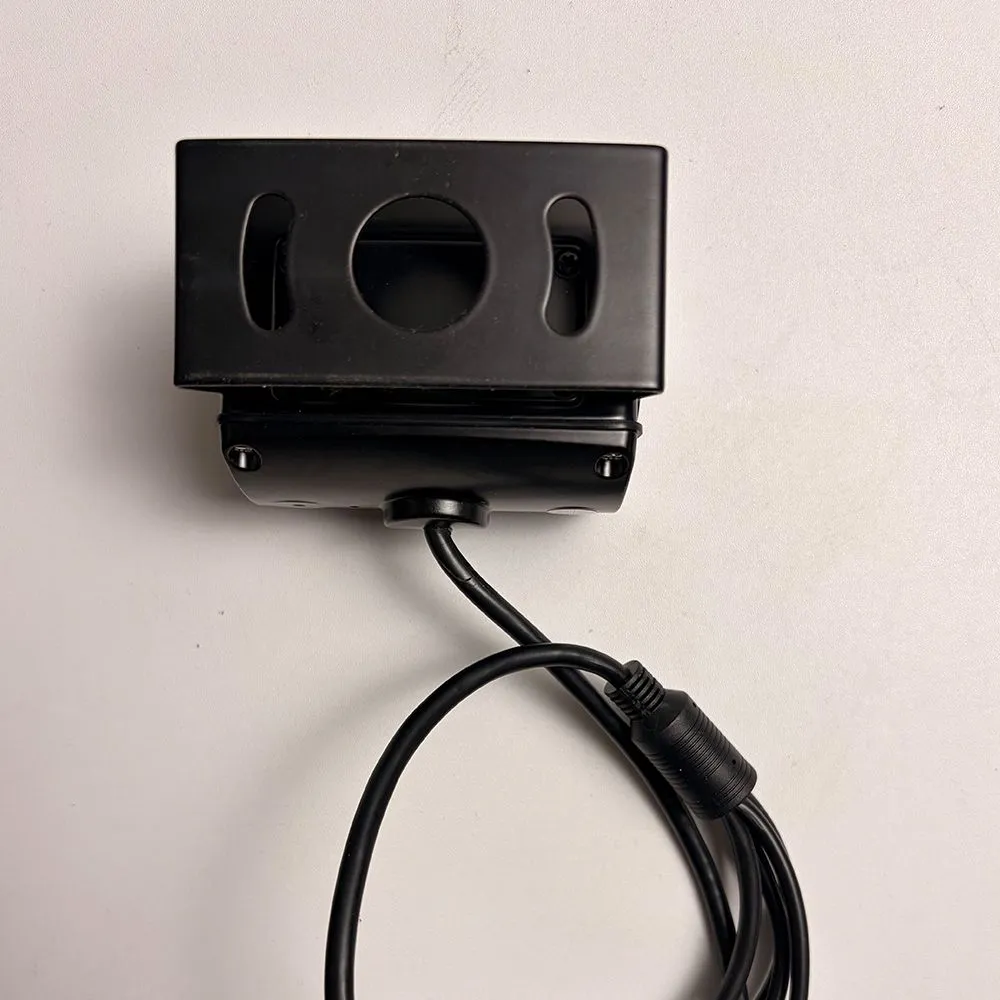

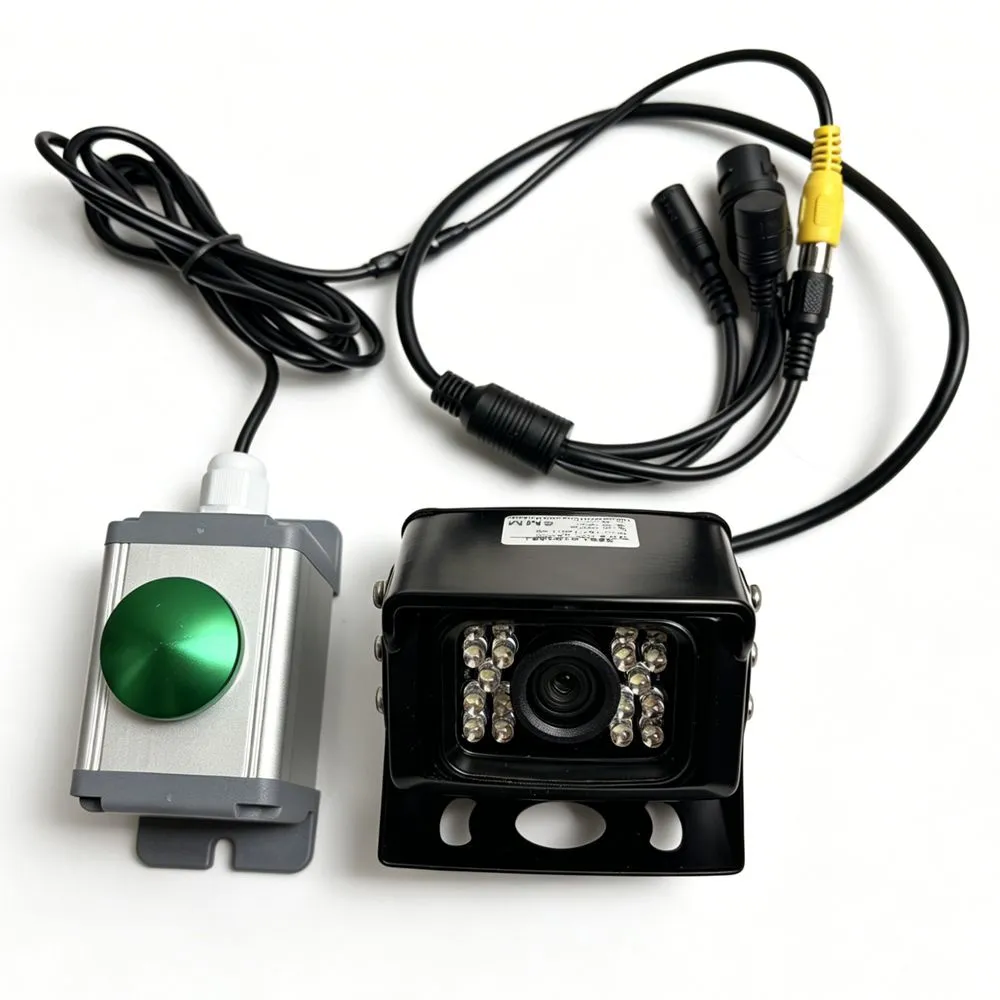

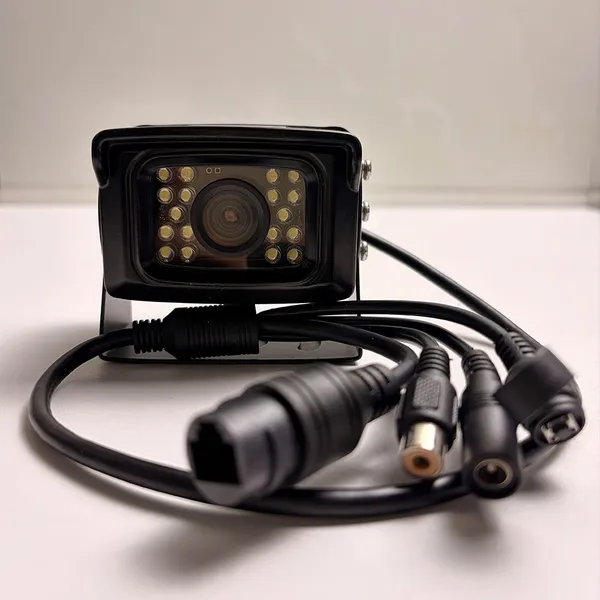

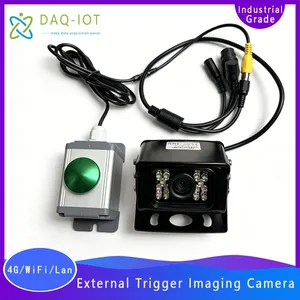

SC-GP-CAMIO External Trigger Camera
Industrial Triggered Image Capture Camera for QR Code & Tube Label Data Collection
1.Product Overview
The SC-GP-CAMIO External Trigger Camera is an industrial-grade smart image capture device designed for automatic QR code, barcode, and serial number collection in laboratory, industrial, and automation environments.
The camera automatically captures high-definition images of test tube labels, QR codes, and identification tags when triggered by external signals such as IO input, PLC commands, or API instructions. Captured images are instantly uploaded to an FTP server for centralized data storage and traceability.
Supporting WiFi, 4G, and Ethernet networking, the system is suitable for both indoor and outdoor deployments, including locations without local WiFi infrastructure.
2.Key Features
External Trigger Image Capture
Supports external IO trigger signals
Compatible with PLC trigger control
API command trigger supported
Real-time “One Trigger, One Capture” response
High-speed automatic image acquisition
Automatic FTP Upload
Images automatically uploaded to designated FTP server
Stable real-time data transmission
Supports unattended operation
Enables centralized image archiving
Multiple Network Communication Methods
WiFi wireless networking
4G cellular network communication
Ethernet wired networking
Suitable for remote and outdoor applications
Local SD Card Backup
Supports SD card local storage backup
Prevents image data loss during network interruption
Automatic synchronization capability
High-Definition Industrial Imaging
Clear capture of QR codes and serial numbers
Optimized for small label recognition
Stable imaging performance in industrial environments
3. Technical Specifications:
| Feature | Description |
|---|---|
| Trigger Mode | IO / PLC / API Trigger |
| Resolution | 5 MP |
| Network | WiFi / 4G / Ethernet |
| Data Upload | Automatic FTP Upload |
| Backup Storage | Local SD Card |
| Application | Laboratory / Industrial Automation |
| Deployment | Indoor & Outdoor |
| Capture Type | QR Code / Barcode / Number Labels |

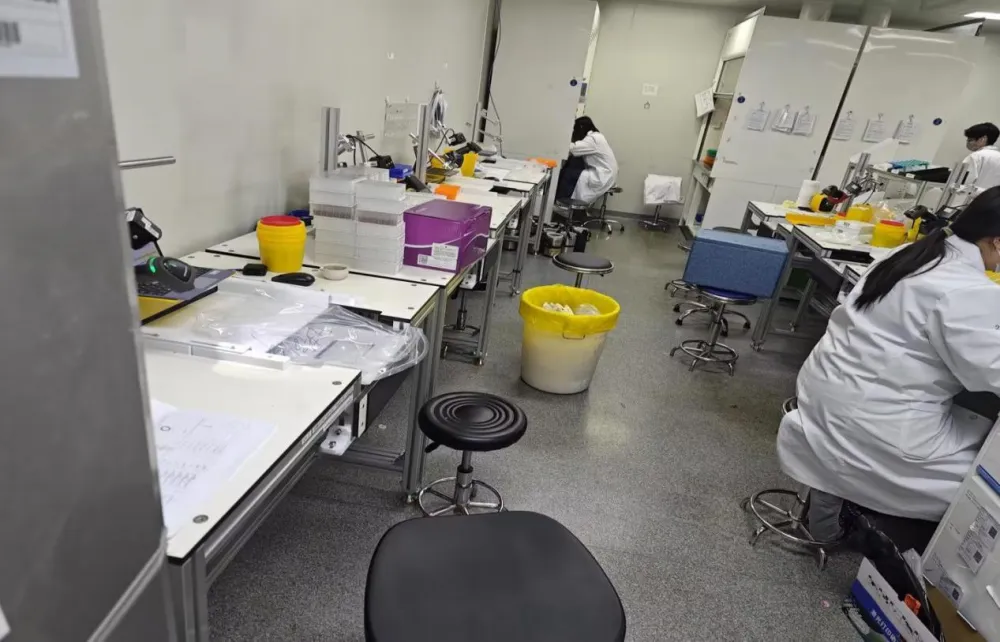

4 .Typical Application Scenarios
5. Working Process

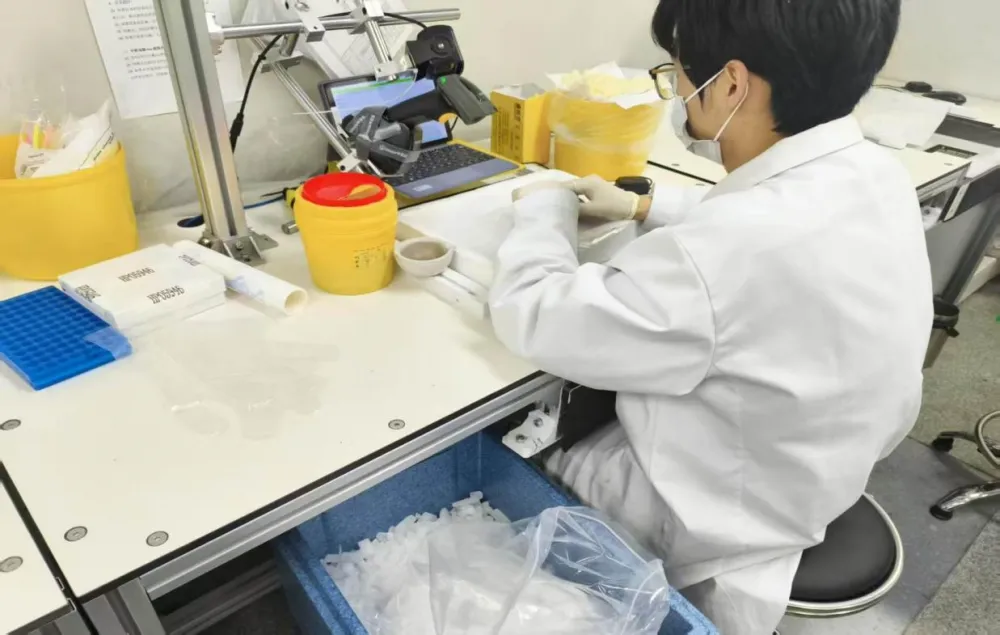

Installation
The camera is mounted approximately 30 cm above the test tube or target object to ensure optimal focus and image accuracy.

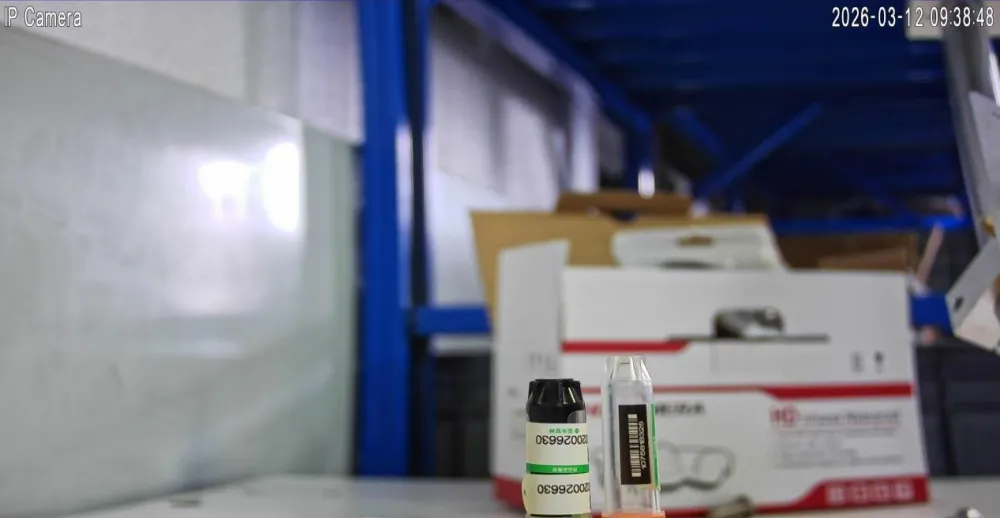

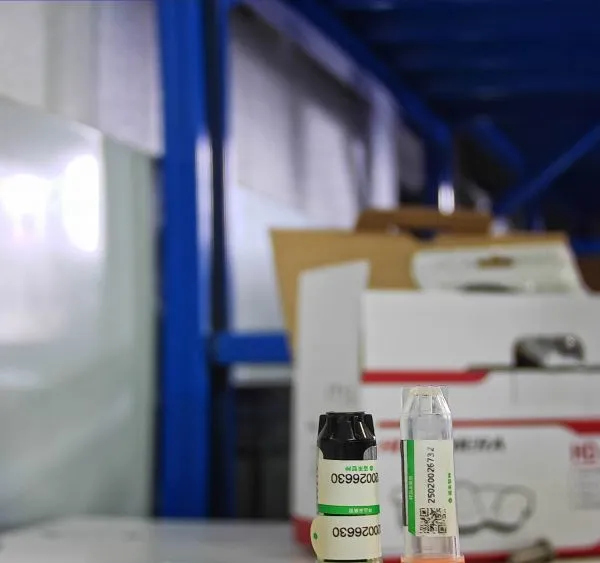

Trigger Capture
After power-on and network configuration:
External trigger signal is activated
Camera instantly captures image
High-definition image is generated automatically
Automatic Data Upload
Captured image files are:
Automatically uploaded to FTP server
Archived in real time
Simultaneously backed up to local SD card
This creates a fully automated:
“Trigger → Capture → Upload” workflow
6.FAQ Content
What is an external trigger camera?
An external trigger camera captures images only after receiving a trigger signal from devices such as PLCs, sensors, buttons, or APIs.
Does the camera support FTP upload?
Yes. The SC-GP-CAMIO automatically uploads captured images to a designated FTP server in real time.
Can the camera work without WiFi?
Yes. The device supports 4G wireless communication for outdoor or remote environments without WiFi coverage.
What trigger methods are supported?
The camera supports:
IO trigger
PLC signal trigger
API command trigger
Is local image backup supported?
Yes. The camera supports SD card local storage backup to prevent data loss.
