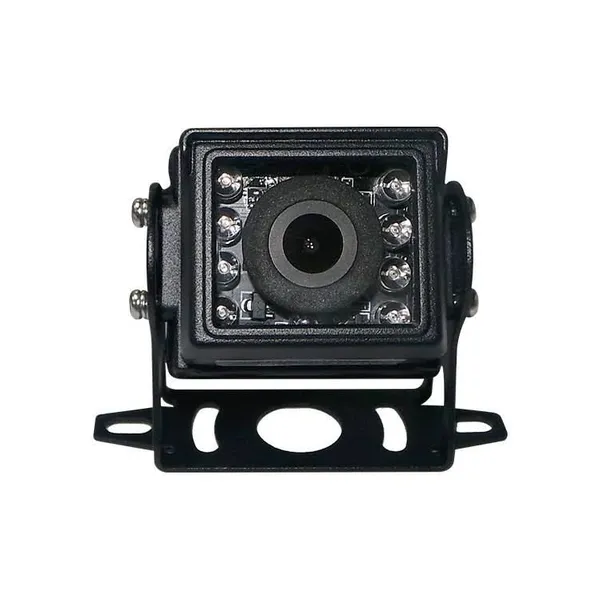

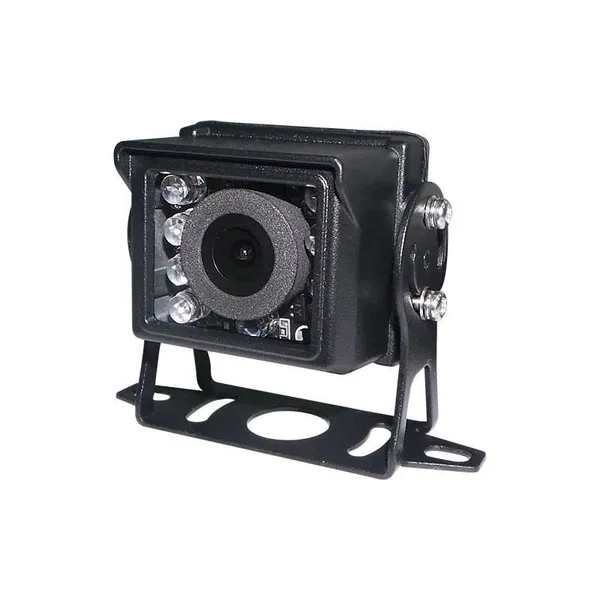

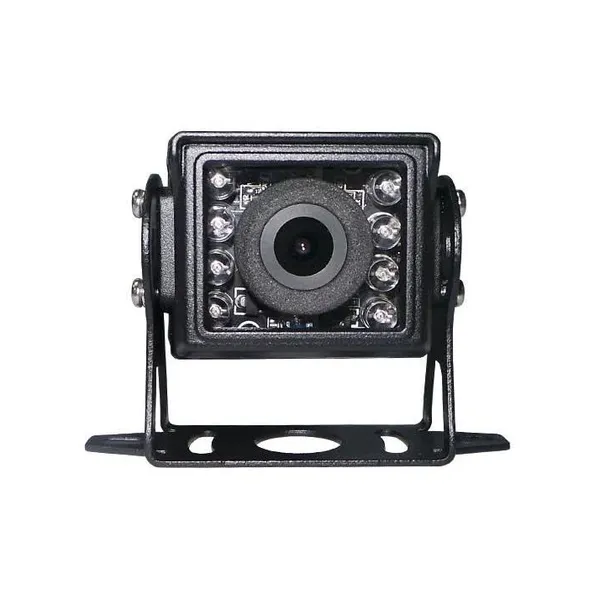

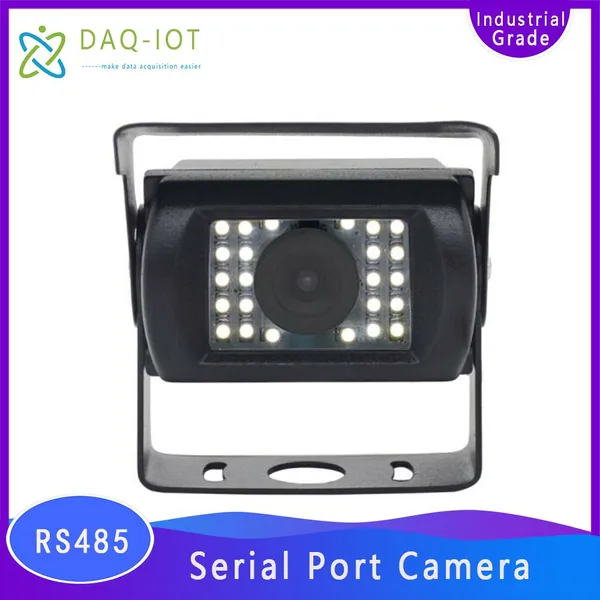

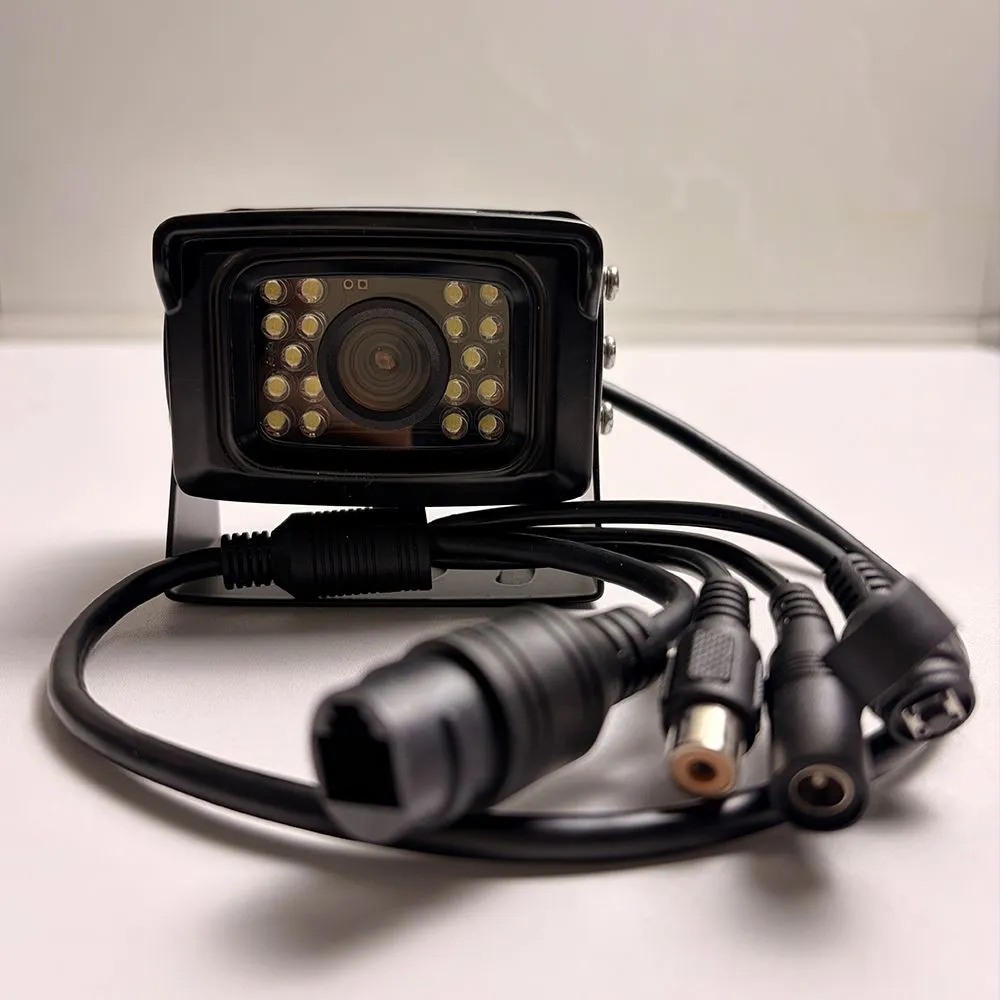

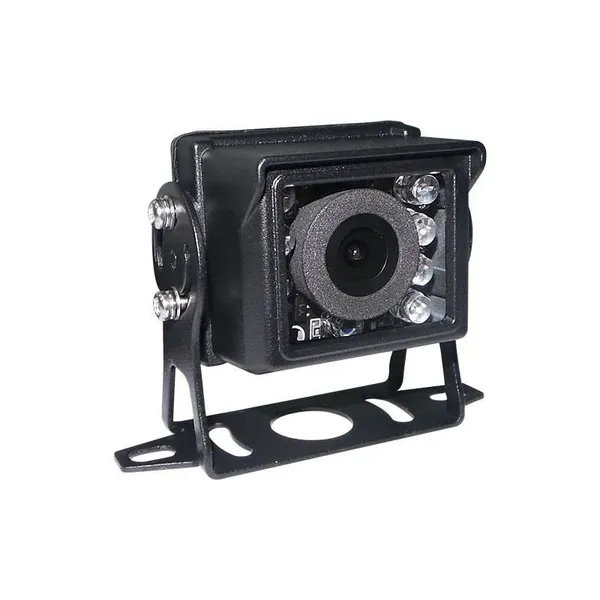

DAQ-GP-SPCAM Industrial RS485 / RS232 UART Serial Camera Module
HD Night Vision Waterproof Camera for Agricultural Machinery & Industrial Monitoring
1.Product Overview
DAQ-GP-SPCAM is our self-developed industrial serial camera module is designed for industrial IoT, agricultural machinery, embedded systems, and remote monitoring applications.
The camera supports RS485 / RS232 / UART serial communication interfaces and provides stable long-distance image transmission for harsh industrial environments.
Featuring HD image output, intelligent IR-CUT night vision, OSD character overlay, and wide voltage input, this camera is widely used in smart agriculture, engineering vehicles, industrial automation, mining equipment, and remote telemetry systems.
2.Key Features
1. High Resolution Image Output
Supports up to UXGA 2560×1440 resolution with compatibility for multiple resolutions including:
2304×1296
1920×1080
1600×1200
1280×1024
1280×960
1280×720
800×600
640×480
Provides clear image capture for industrial monitoring and machine vision applications.
2. High-Speed Serial Communication
Supports baud rates up to: 921600 bps
Ensures stable and efficient image data transmission for industrial control systems and embedded applications.
3. RS485 / RS232 / UART Interface Support
Compatible with:
RS485
RS232
UART Serial Communication
Easy integration with:
PLC systems
Industrial controllers
Embedded devices
Agricultural machinery
IoT terminals
4. Wide Voltage Input
Supports:
DC 12V wide voltage power supply
Suitable for unstable industrial power environments and vehicle-mounted systems.
5. OSD Character Overlay Function
Supports image character overlay (OSD), allowing users to display:
Time
Device ID
GPS data
Sensor information
System status
Directly on captured images or video streams.
6. Intelligent IR-CUT Night Vision
Built-in IR-CUT control interface automatically detects ambient brightness and intelligently switches infrared lighting modes.
Benefits include:
Better daytime color performance
Enhanced night vision effect
Automatic infrared control
Energy saving operation
Ideal for 24/7 outdoor monitoring applications.
3. Technical Specifications:
| Parameter | Specification |
|---|---|
| Communication Interface | RS485 / RS232 / UART |
| Max Resolution | 2560×1440 (UXGA) |
| Supported Resolutions | 2304×1296 / 1920×1080 / 1280×720 etc. |
| Baud Rate | Up to 921600 bps |
| Power Supply | DC 12V |
| Night Vision | IR-CUT Automatic Switching |
| OSD Function | Supported |
| Image Transmission | Serial Communication |
| Installation | Embedded / Vehicle Mounted |
| Application Environment | Industrial & Outdoor |
4 .Typical Application Scenarios
5. Application Scenarios
Smart Agriculture
Combine harvester monitoring
Tractor camera systems
Precision farming equipment
Agricultural IoT terminals
Industrial Equipment
PLC visual monitoring
Remote industrial inspection
Embedded control systems
Factory automation
Vehicle Monitoring
Engineering vehicles
Mining trucks
Heavy equipment monitoring
Fleet management systems
Remote Monitoring & IoT
Telemetry systems
Remote image acquisition
Edge computing terminals
Smart city monitoring
