Wireless IR Pyrometer Non-Contact Infrared Temperature Sensor for Industrial Applications

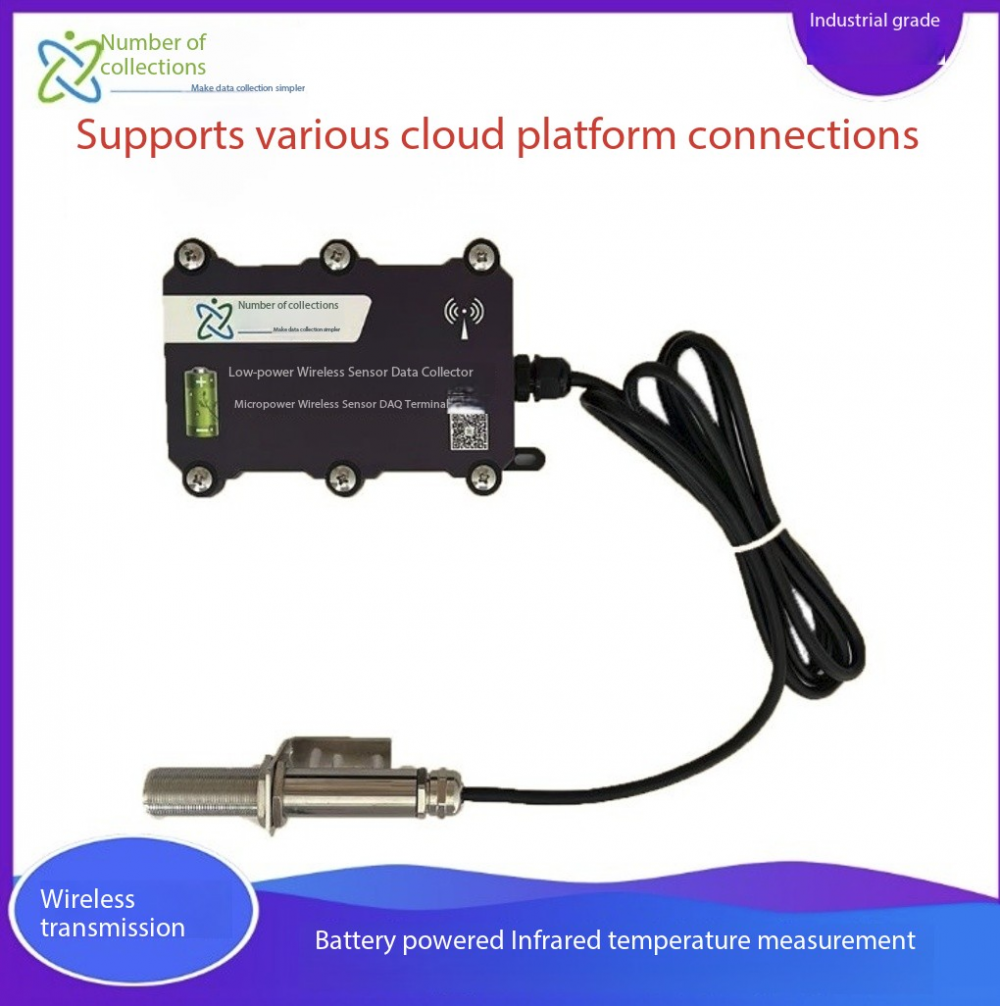

DAQ-LP-IRT 4 G low-power wireless infrared temperature measurement sensor is a wireless infrared temperature measurement product for the industrial field launched by Shanghai Digital Mining Internet of Things Technology Co., LTD. The product can calculate the surface temperature of the object by receiving the infrared radiation intensity emitted by the target without contacting the target, and report the data regularly in 4G and other ways. Non-contact acquisition is the biggest advantage of infrared temperature measurement, enabling users to easily measure the inaccessible or mobile targets. As a new generation of temperature measurement data, cloud products can widely adapt to the needs of various industrial scenarios.

The sensor terminal supports 4G / NB-IOT / LORa / WiFi communication mode to overcome the wireless communication occlusion caused by the special site environment, greatly simplify the site deployment time and reduce the construction cost. This terminal can support support 12V voltage input, support reverse contact protection, high measurement accuracy, easy to install.

We solemnly promise that:

You buy not only the product, but also the meticulous and thoughtful technical support services!!!( =^_^= )

This product, the site only ordinary workers electric installation! No debugging!

We provide free remote guidance, remote configuration and debugging service, and send the data to the user-specified cloud platform.

Free Internet of Things solution consulting services!

Collection type: non-contact temperature measurement

Measurement range: Default 0-500°C (higher temperature range customizable)

Distance coefficient: 20:1

Measurement error: ± 1.5% of measurement or ± 2.5°C maximum value

Acquisition frequency: default 12 hours once, support remote configuration

Power supply mode: long-life lithium battery power supply (optional DC power supply)

Standby current: 4.17ua

Standby power: 15.029uw

Wireless transmission mode: 4G / NB-IOT / LoRa / WiFi

Communication protocol: MQTT / TCP / UDP / HTTP / SSL / ModBus RTU, and other protocols can be customized

Data forwarding: any public network server

Number of server centers: up to simultaneous data reporting to 7 cloud servers.

Heartbeat packet: support custom heartbeat packet, can be set to signal intensity.

Registration package: support custom registration package, can be set to IMEI code.

Positioning: Support LBS base station positioning to facilitate the query of device location.

Antenna type: built-in antenna (optional external antenna)

Material: PC / ABS / PMMA (enclosure)

Main body protection level: IP65

Dimensions: 122mmx92mmx42mm (length * width * height)

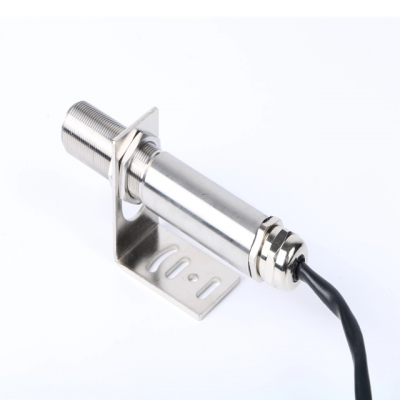

Range-measuring probe structure: non-contact type

Main body installation method: wall hanging or screw fastening

Probe installation method: paste or screw tightening, binding belt installation

v Simple installation, fast deployment, help the Internet of things project quickly landing

v Support custom registration package and heartbeat package, facilitate the platform to distinguish devices

v Support any private Internet of Things cloud platform and configuration software, and provide data protocol docking

v Support Ali cloud, Baidu Tiangong, OneNet, Tencent Cloud and other mainstream cloud platforms

v Support for the external multiplex sensor

v Non-invasive measurement, which does not affect the normal operation of the equipment

v Support remote configuration parameters and FOTA remote upgrade to minimize the personnel cost of site construction and maintenance
