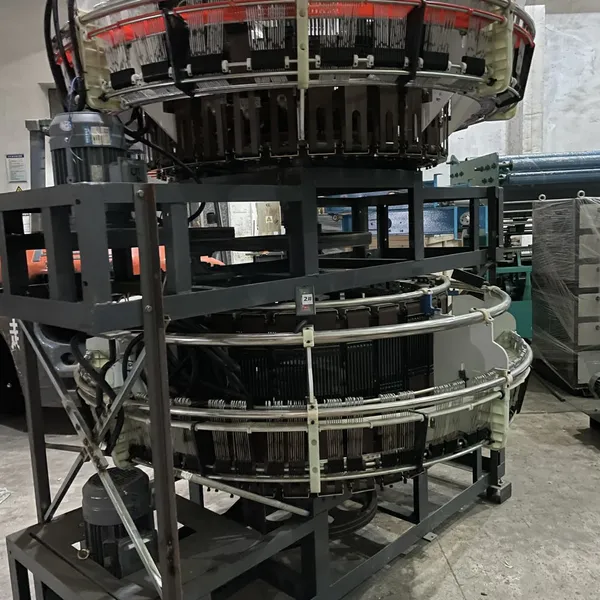

Help CenterLeno Mesh Bag Circular Loom
Related Products

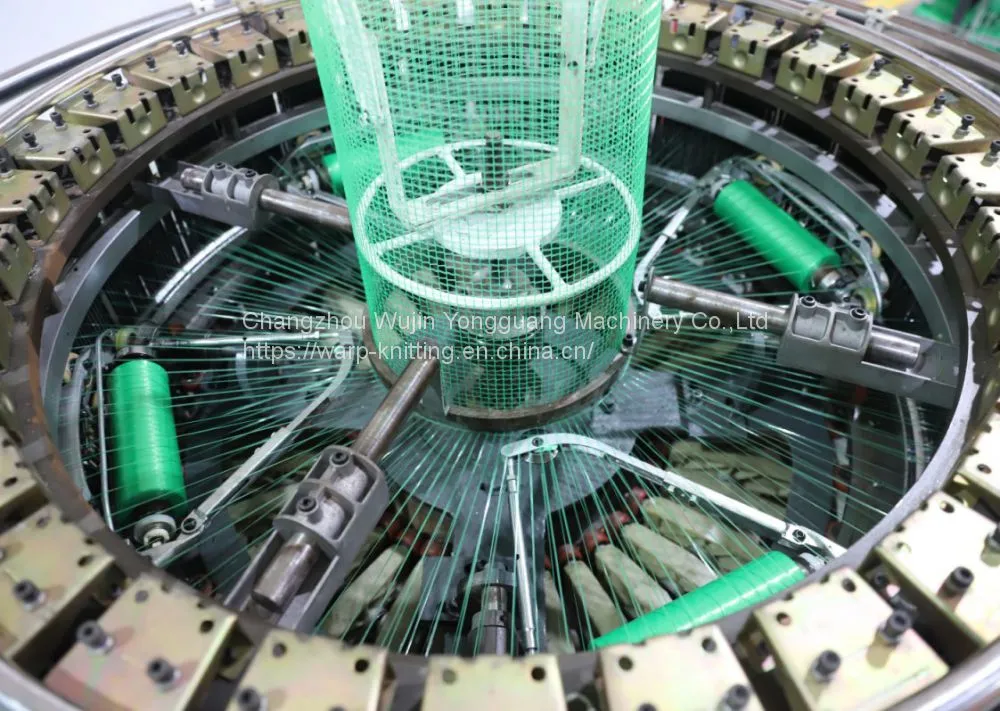

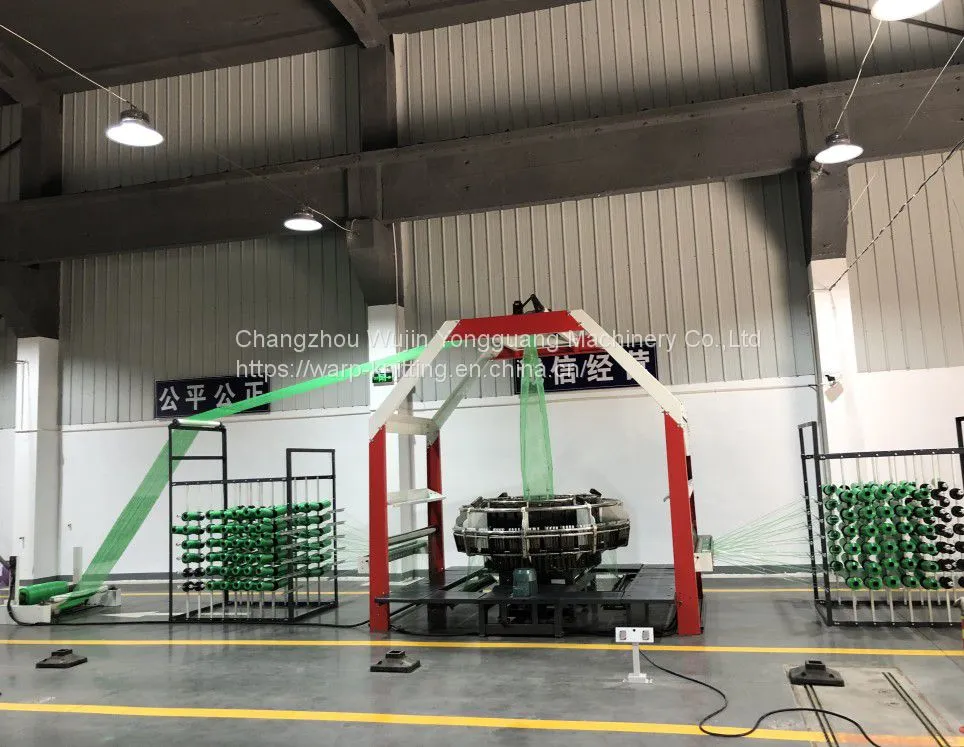

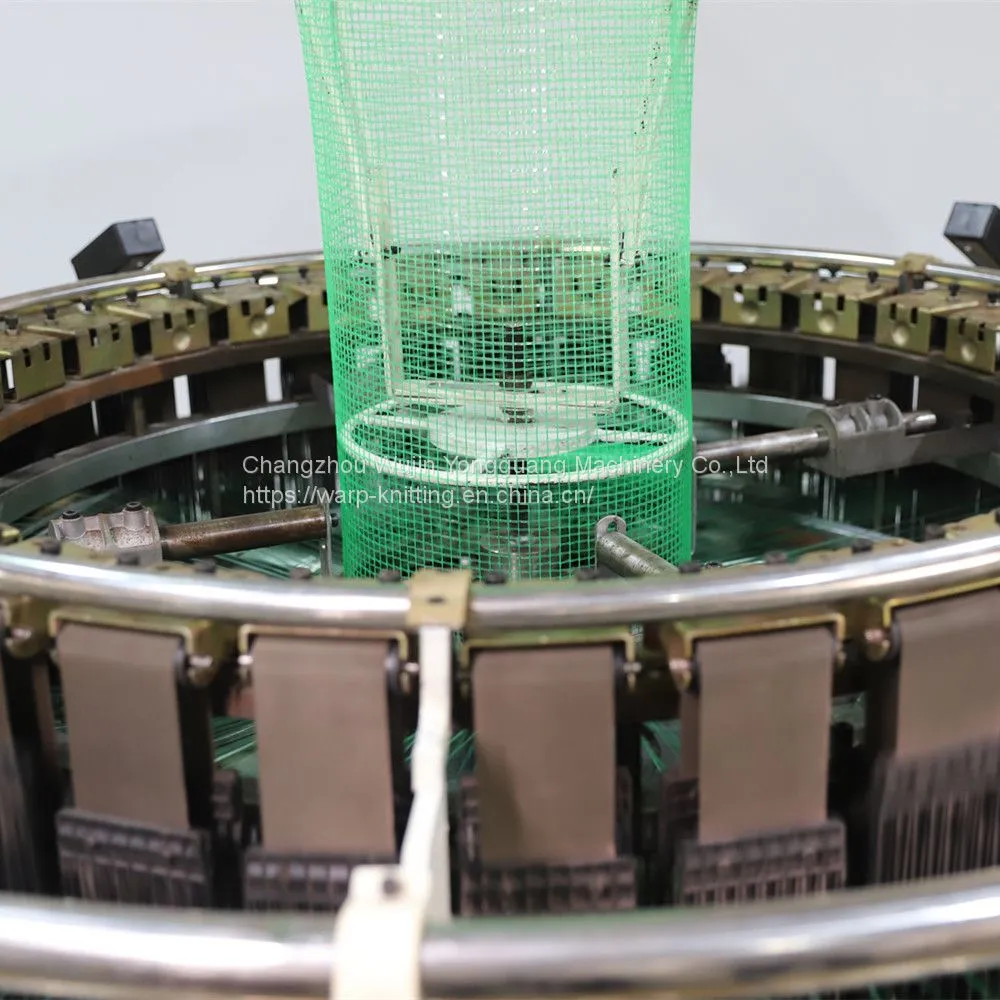

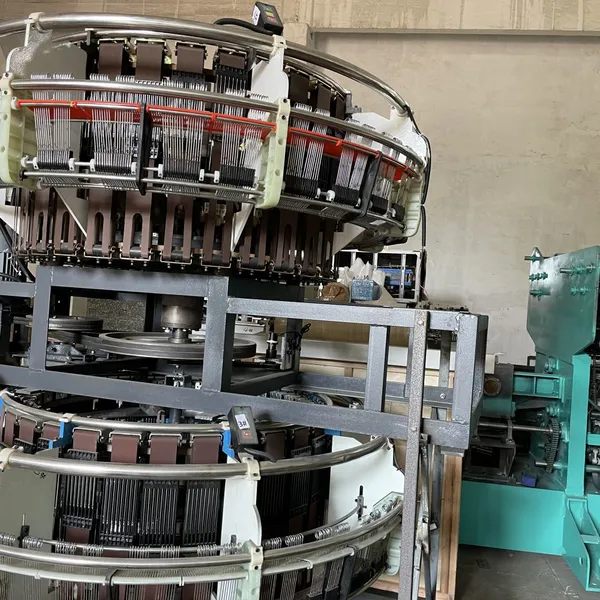

Leno Mesh bag circular loom is mainly used to produce cylindrical mesh bags for packaging vegetables, fruits and other agricultural products. The suitable raw material is PE or PP. 100% recycled materials can be used also. Usually weft yarn is flat yarn(tape) and warp yarn can be monofilament or flat yarn.
Technical data:
1 |
Working width，double flat |
300-850mm |
2 |
Number of shuttles per machine |
4 |
3 |
weft density |
10-24pcs/10cm |
4 |
Speed |
0-120RPM |
5 |
Warp feeding |
Motor |
6 |
Inner diameter of Bobbin |
38mm |
7 |
Bobbin length |
230mm |
8 |
Max. bobbin diameter |
100mm |
9 |
Number of Warp yarns |
512pcs |
10 |
Normal rating of main motor |
2.2kw |
11 |
lift motor power : |
22N |
12 |
winding motor power: |
motor |
13 |
Total power |
3Kw |
14 |
Installed size (mm) |
10500* 2400* 3200 |
15 |
weight |
1700KGS |
