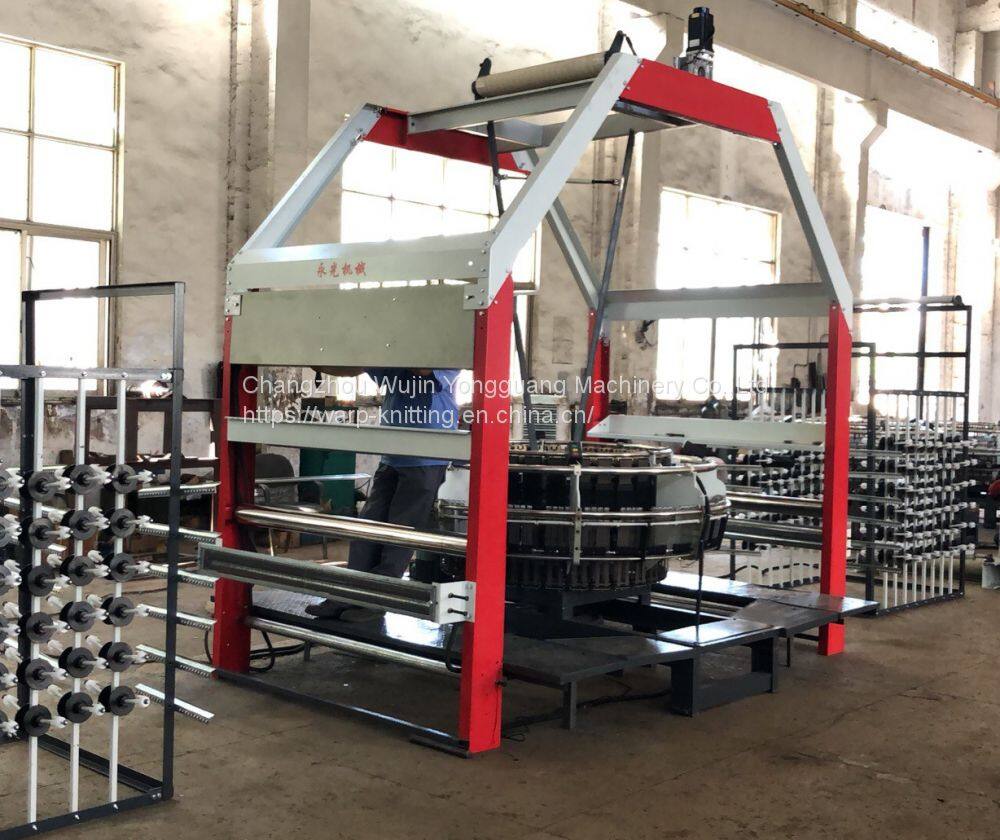

Plastic Leno Bag Circular Loom

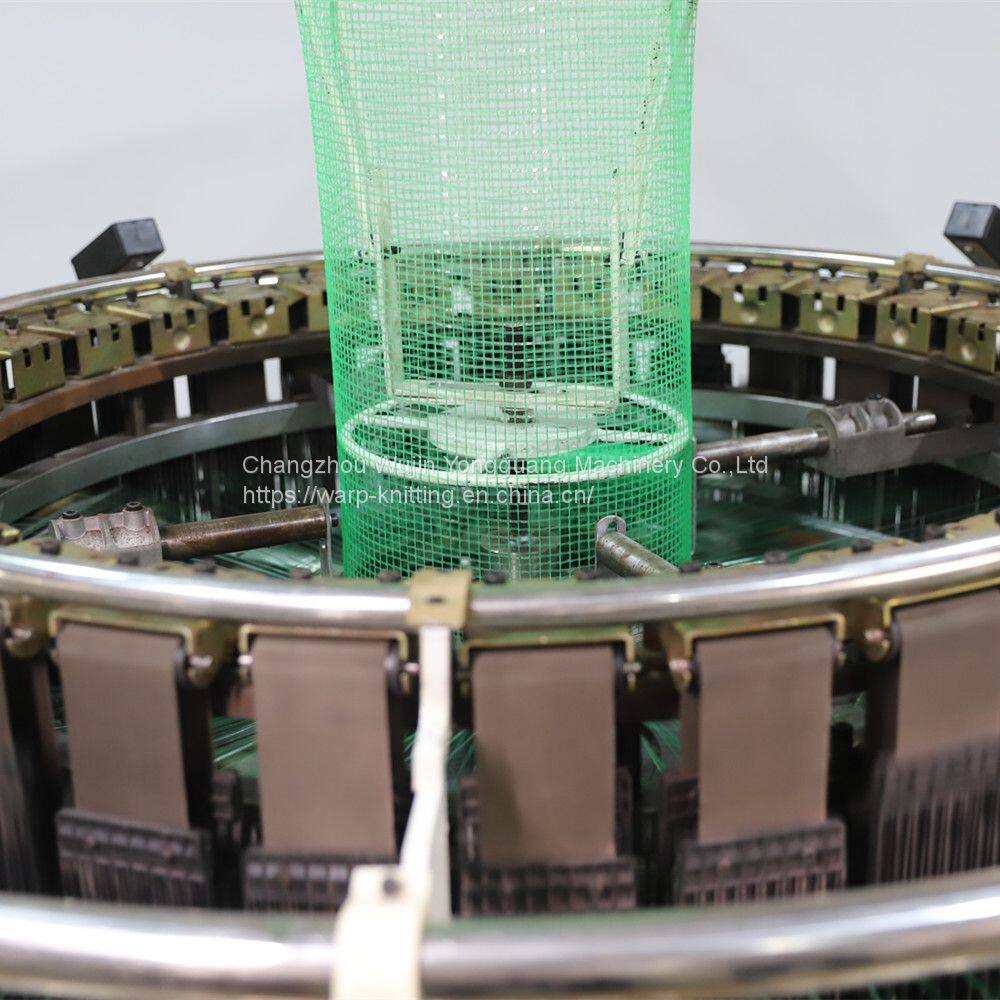

SYZW-4S-850 HIGH SPEED LENO BAG CIRCULAR LOOM is mainly used to produce cylindrical mesh bags for packaging vegetables, fruits and other agricultural products. The suitable raw material is PE or PP. 100% recycled materials can be used also. Usually weft yarn is flat yarn(tape) and warp yarn can be monofilament or flat yarn.

Advantages:

1. The structure design of the whole machine is novel and reasonable, the maintenance is convenient.

2. High speed, low noise , low friction, energy saving , high efficiency.

3. Adopting the interweaving technology, the weft is not easy to loosen, and it is not easy to stretch after filling with fruits and vegetables.

4. The loom is controlled by Inverter, and it will automatically stop if the weft are finished or the warp, weft yarn is cut off, machine also equip with a meter counter.

Technical data:

working width，double flat ：           300-850mm

Number of shuttles per machine :       4

weft density：                                        10-24pcs/10cm

Speed:                                                      0-100RPM

inner diameter of bobbin:                    38mm

core length：                                         230mm

number of warp yarn ：                      512pcs

 installed size :                                       10500mm*  2400mm*  3200mm

 main motor power:                             2.2kw

lift motor power :                                 22N

winding motor power:                           Brushless motor
