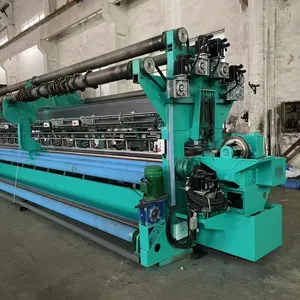

Model:SRM264 single needle bed warp knitting machine
Applications:

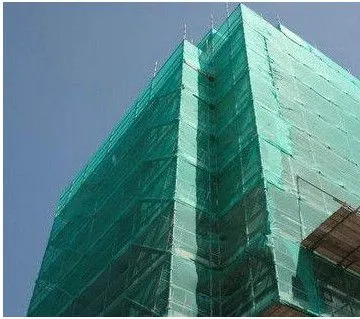

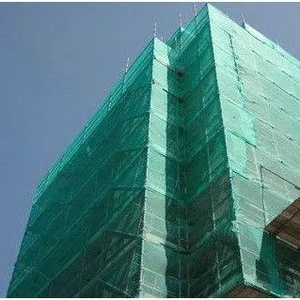

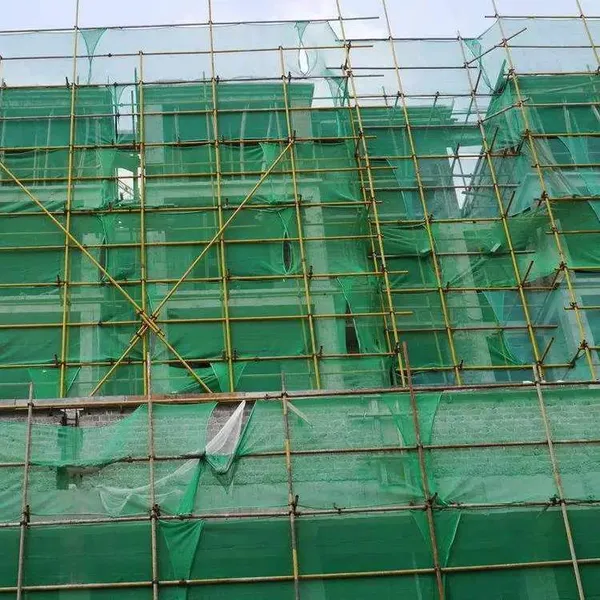

This machine is suitable to manufacturing knotless plastic net, such as shade net, building-safety net ,farming net, olive net, wind and dust net, anti-insect net, anti-bird net ,anti-hail net ,bale wrap net by using PP,PE,HDPE as raw material.
Features:
1. Open cam drive ,simple structure ,easy operation and stable performance
2. Heavier machine and lower gravity center to ensure the safety and stability of operation.
3. Lower noise and vibration.
4. Adopt helical tooth gear box to assist motor working, so the motor power is smaller and save power consumption.
5. Using Variable speed motor to replace variable gear ,it’s convenient and clean .
Specifications：
1. Gauge：E2,E3,E4,E6,E7,E9,E12(needles/inch)
2. Needle：Latch needle（latch needle piece/embedded needle ）
3.Working width：170”(4500MM),212”(5500MM),258”(6500MM)
264”(6700MM),330”(8500MM),430”(11000MM),510”(13000MM)
4.Bars：2-4bars
5.RPM：350-500
6.Yarn let-off system：variable speed motor
7.Batching device：combination/Free standing batching device
8.Pattern drive：Pattern cam
Model |
Main motor（kw） |
Machine size（mm） |
Installed size (mm) and required area |
Gross weight（kgs） |
SRM170 |
4 |
6000×1500×2000 |
7000×7000；49M2 |
8000 |
SRM212 |
4 |
7200×1600×2000 |
8000×7000；56M2 |
10000 |
SRM264 |
4 |
8300×1600×2000 |
9000×7000；63M2 |
11500 |
SRM330 |
5.5 |
10100×1700×2200 |
11200×7000；78.4M2 |
19000 |
SRM430 |
7.5 |
12500×1700×2200 |
13500×7000；94.5M2 |
22000 |
SRM510 |
7.5 |
14500×1700×2200 |
15500×7000；108.5M2 |
26000 |
