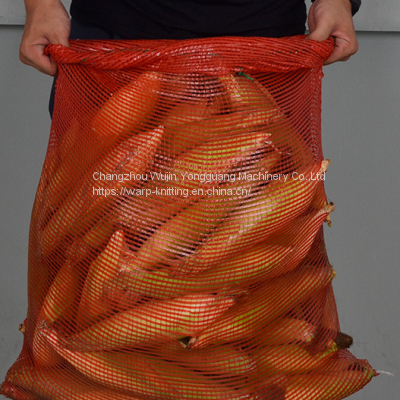

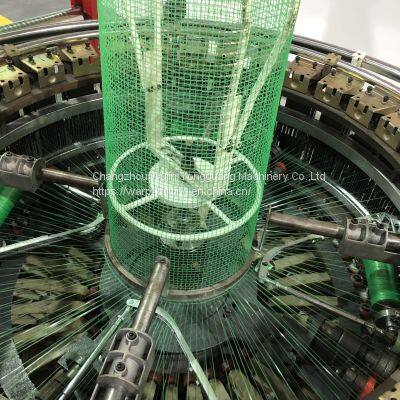

Leno Mesh bag circular loom is mainly used to produce cylindrical mesh bags for packaging vegetables, fruits and other agricultural products. The suitable raw material is PE or PP. 100% recycled materials can be used also. Usually weft yarn is flat yarn(tape) and warp yarn can be monofilament or flat yarn.
Technical data:
1 | Working width，double flat | 300-850mm |
2 | Number of shuttles per machine | 4 |
3 | weft density | 10-24pcs/10cm |
4 | Speed | 0-120RPM |
5 | Warp feeding | Motor |
6 | Inner diameter of Bobbin | 38mm |
7 | Bobbin length | 230mm |
8 | Max. bobbin diameter | 100mm |
9 | Number of Warp yarns | 512pcs |
10 | Normal rating of main motor | 2.2kw |
11 | lift motor power : | 22N |
12 | winding motor power: | motor |
13 | Total power | 3Kw |
14 | Installed size (mm) | 10500* 2400* 3200 |
15 | weight | 1700KGS |
