Overview

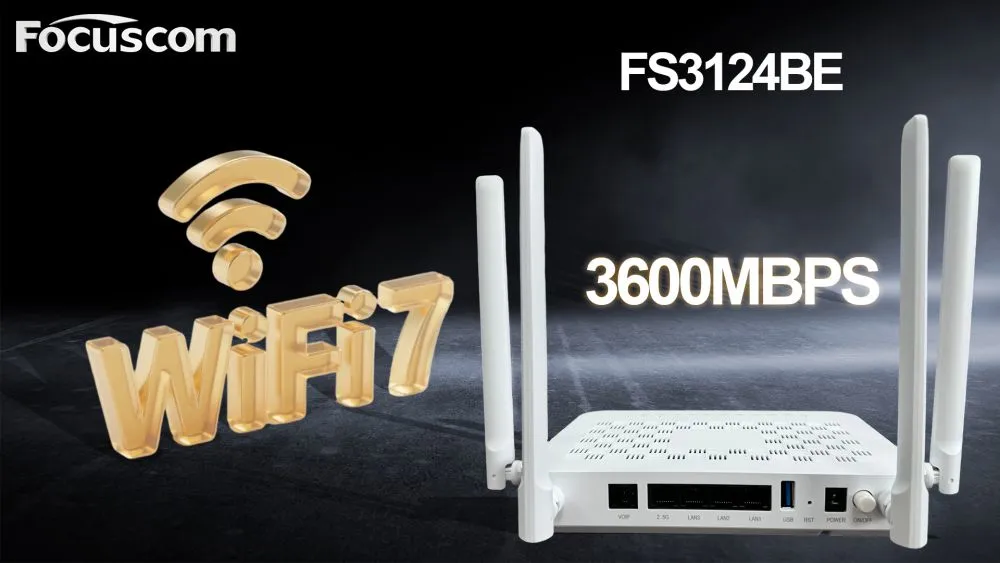

The Focuscom FS3124BE is a next-generation XGSPON optical terminal access device designed for high-end home and enterprise FTTX deployments. Integrating the latest WiFi 7 (BE3600) technology, it provides symmetrical 10Gbps upstream and downstream fiber access, delivering a robust solution for ultra-bandwidth applications.
Key Features & High-Speed Connectivity
-
Next-Gen XGSPON Speed: Supports symmetrical transmission rates of 10Gbps (Upstream/Downstream) using XGSPON technology.
-
WiFi 7 Performance: Delivers up to 3600Mbps total air speed (688Mbps on 2.4GHz and 2882Mbps on 5GHz).
-
Versatile Wired Ports: Equipped with one 2.5GE port for high-speed wired devices and three Gigabit Ethernet (GE) ports for standard networking.
-
Advanced Wireless Tech: Features $2times2$ MIMO and Multi-Link Operation (MLO) across 2.4G and 5G bands to ensure lower latency and higher reliability.
-
Powerful Signal: High-gain 5dBi antennas provide excellent penetration, capable of passing through reinforced concrete or brick walls.
Comprehensive Functionality
-
Voice over IP (VoIP): Includes one RJ11 port supporting G.711, G.729, and G.722 standards for crystal-clear voice services and fax modes.
-
USB 3.0 Integration: A built-in USB 3.0 port allows for fast local file sharing and storage expansion.
-
Enterprise-Grade Security: Supports WPA3-SAE, WPA2-PSK, and robust firewall features to keep your network secure.
-
Smart Management: Easy configuration and maintenance via Web UI, OMCI, TR069, and CLI (Telnet/SSH).
Technical Specifications
| Feature | Specification |
| Fiber Interface | SC/UPC (or SC/APC) XGSPON |
| WLAN | Dual-band WiFi 7 (802.11be) |
| Ethernet |
$1 times 2.5text{Gbps} + 3 times 1text{Gbps}$ RJ45 ports |
| Power Supply | DC 12V / 2A (Consumption $leq 24text{W}$) |
| Operating Temp |
$-5text{°C}$ to $45text{°C}$ |
| Dimensions |
$190text{mm} times 135text{mm} times 33text{mm}$ |
Package Includes: FS3124BE ONU, Power Adapter, RJ45 Ethernet Cable, and RJ11 Phone Cable
