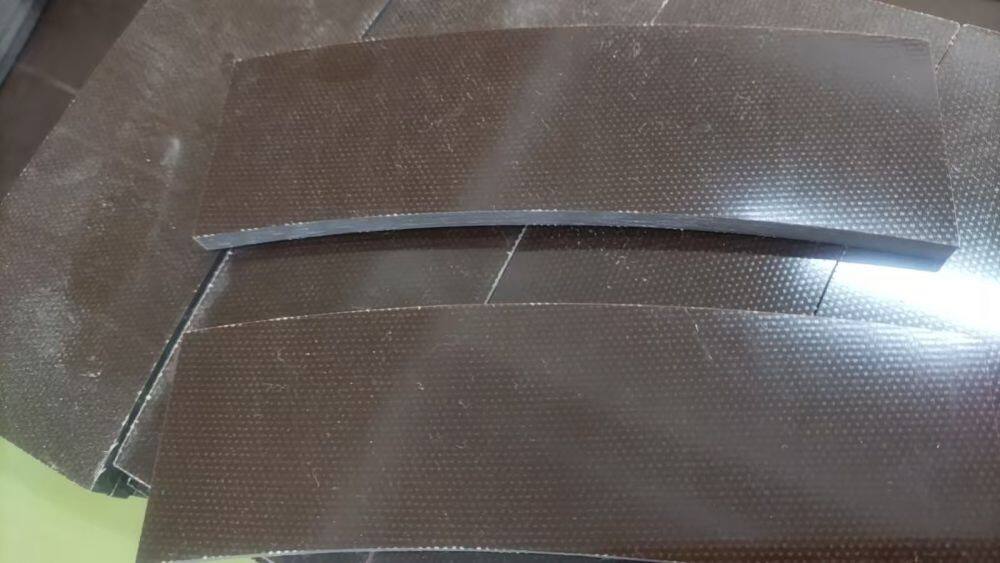

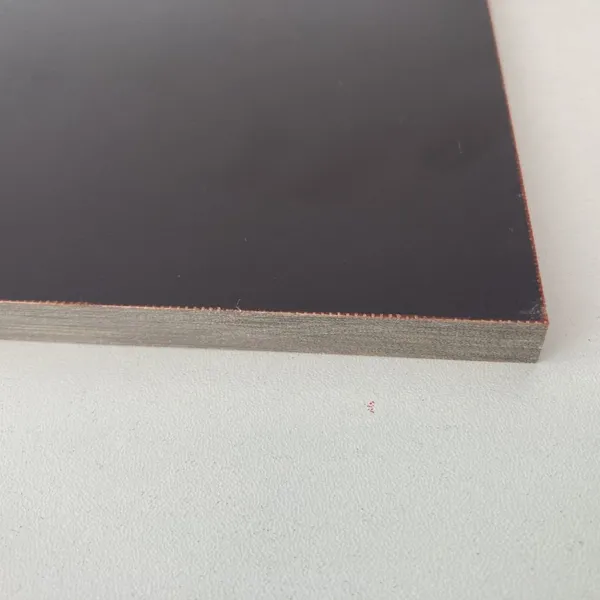

Help CenterG15/G-30 Polyimide Glass Laminate (PIGC301)
Product Spotlights
Related Products
-
Modified Diphenyl Ether Laminated Glass Cloth Board (3255)NegotiableMOQ: 500 Kilograms -
Modified Bismaleimide Laminated Glass Cloth Board (BMGC301)NegotiableMOQ: 500 Kilograms
-
G-3 Glass Phenolic Laminate (PFGC201, HGW2072)NegotiableMOQ: 500 Kilograms
-
G5/G9 Melamine Glass Sheet (MFGC201, HGW2272)NegotiableMOQ: 500 Kilograms
-
G7 Silicone Glass Laminate Sheets (SIGC201, HGW2572)NegotiableMOQ: 500 Kilograms
Description
Polyimide Glass Laminate PIGC301 is a high-performance laminated material produced by impregnating glass fiber reinforcements with high-temperature polyimide resin and curing under heat and pressure. It maintains excellent mechanical strength and rigidity in high-temperature applications.
Originally developed for aerospace use, PIGC301 offers good electrical insulation, dimensional stability, and chemical resistance. The material is easily machined by CNC milling, routing, turning, and drilling, making it suitable for manufacturing electrically insulating components for demanding thermal environments.
Features
High thermal index: 220 °C continuous use, maintains excellent mechanical properties up to 250 °C
High dimensional stability at elevated temperatures
Excellent electrical insulation properties
Outstanding mechanical strength and rigidity
Suitable for long-term use at 220 °C and intermittent use at higher temperatures
High-performance laminates for demanding electrical, mechanical, and high-temperature applications
Applications
Petrochemical and chemical industry components
Mining and precision machinery parts
Automotive and microelectronic equipment
Medical devices and equipment
Aerospace and aviation components
Microelectronics, nanotechnology, liquid crystal devices, separation membranes, and laser equipment
| G15/G-30 Polyimide Glass Laminate (PIGC301) | ||
| Physical Properties | Value | Unit |
| Density | 2 | g/cm3 |
| Water Absorption | 34 | - |
| Flammability Category | V-0 | - |
| Electrical Properties | Value | Unit |
| IR (24hrs Water Immersed) | 6000 | GΩ |
| Electric Strength (Flat Rapid) | 21 | MV/m |
| Electric Strength (Flat Step by Step) | 15 | MV/m |
| Breakdown of Voltage (Edge Step by Step) | 92 | kV |
| Relative Permittivity @ 1 MHz | 5.4 | - |
| Dissipation Factor @ 1 MHz | 0.025 | - |
| Tracking Index | 165 | V |
| Mechanical Properties | Value | Unit |
| Flexural Strength | 540 | MPa |
| Flexural Strength at 150°C | 350 | MPa |
| Tensile Strength | 350 | MPa |
| Impact (Notched CHARPY) | 80 | kJ/m2 |
| Thermal Properties | Value | Unit |
| Thermal Rating Continuous | 220 | °C |
| Thermal Rating Intermittent | 250 | °C |
