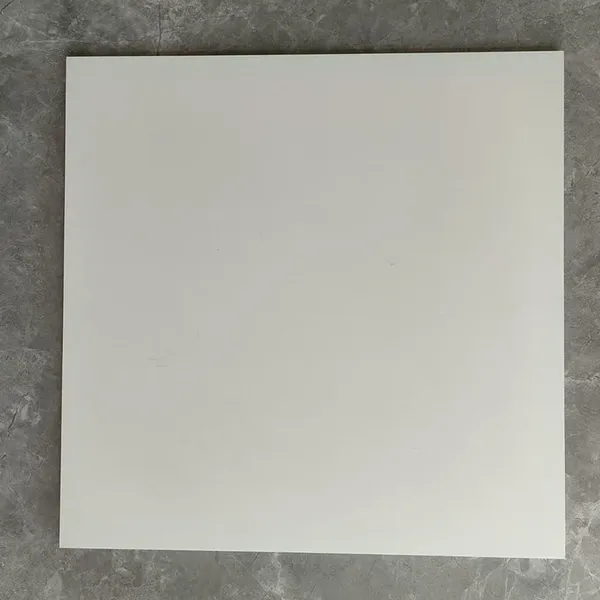

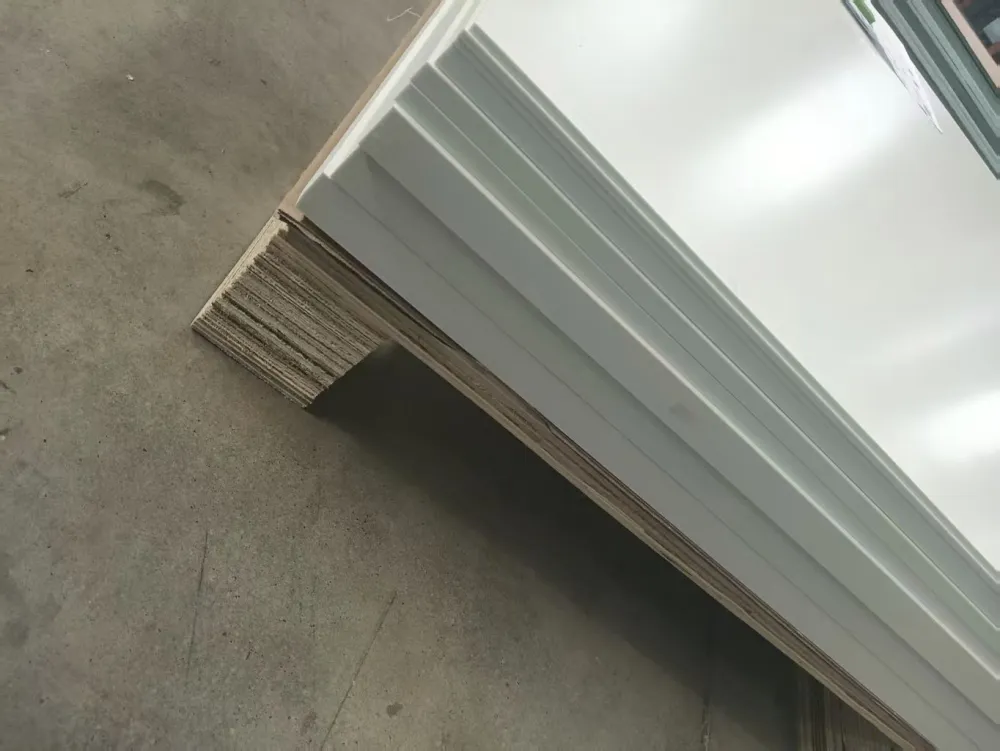

Help CenterG7 Silicone Glass Laminate Sheets (SIGC201, HGW2572)
Product Spotlights
Related Products
-
G15/G-30 Polyimide Glass Laminate (PIGC301)NegotiableMOQ: 500 Kilograms -
Modified Diphenyl Ether Laminated Glass Cloth Board (3255)NegotiableMOQ: 500 Kilograms
-
Modified Bismaleimide Laminated Glass Cloth Board (BMGC301)NegotiableMOQ: 500 Kilograms
-
G-3 Glass Phenolic Laminate (PFGC201, HGW2072)NegotiableMOQ: 500 Kilograms
-
G5/G9 Melamine Glass Sheet (MFGC201, HGW2272)NegotiableMOQ: 500 Kilograms
Description
G-7 is a continuous filament glass cloth reinforced with silicone resin, forming a high-performance industrial laminate. This material exhibits excellent electrical insulation properties and is rated for the highest continuous operating temperature among industrial laminates, suitable for applications up to 180°C. G-7 laminates maintain low dielectric loss and high insulation resistance across a wide temperature range, even under humid conditions. The composite also demonstrates outstanding heat and arc resistance and is inherently self-extinguishing, providing enhanced safety in demanding environments.
Features
High Temperature Resistance: Continuous operation up to 180°C.
Excellent Electrical Insulation: Low dielectric loss and high insulation resistance, even under humid conditions.
Heat & Arc Resistant: Outstanding performance under thermal and electrical stress.
Self-Extinguishing: Provides enhanced fire safety.
Mechanical Strength: Strong and dimensionally stable, resistant to vibration and impact.
Reliable in Harsh Environments: Maintains performance under extreme conditions over long periods.
Applications
Aerospace Components: High-temperature insulation and structural parts.
Power Generation Equipment: Transformers, switchgear, and electrical panels.
Heavy Machinery: Insulating parts exposed to heat, vibration, and mechanical stress.
High-Voltage Electrical Systems: Reliable insulation in demanding environments.
Industrial Electrical Insulation: Bushings, spacers, washers, and other critical insulation components.
| G7 Silicone Glass Laminate Sheets (SIGC201, SIGC202, HGW2572) | |||
| Parameters | Unit | Standard | |
| SI GC 201 | SI GC 202 | ||
| Density | g/cm³ | 1.9 | 1.9 |
| Flexural strength, Perpendicular | MPa | ≥90 | ≥120 |
| Impact strength,Charpy | kJ/m2 | ≥20 | ≥25 |
| IZOD Impact strength, Notched | kJ/m2 | ≥21 | ≥26 |
| Dieletric breakdown Parellel to laminations (in 90°C oil) | kV | ≥30 | ≥25 |
| Dielectric Constant(50 Hz) | - | ≤4.5 | ≤6.0 |
| Dielectric Constant(1 MHz) | - | ≤4.5 | ≤6.0 |
| Dielectric Loss Factor (50 Hz) | - | ≤0.02 | ≤0.07 |
| Dielectric Loss Factor (1 MHz) | - | ≤0.02 | ≤0.07 |
| Resistivity after immersion | MΩ | ≥1x104 | ≥1x103 |
| Flammability IEC707(UL-94) | Level | V-0 | V-0 |
