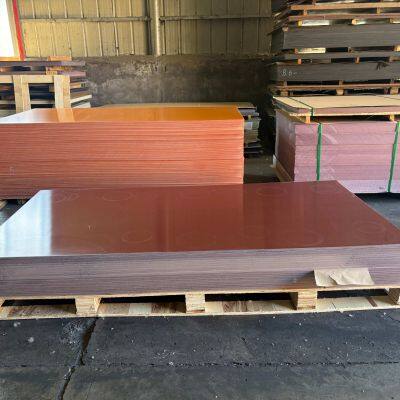

PFCC201 Textolite Phenolic Cotton Cloth Sheet (NEMA C, HGW2082, 3025) photo-1

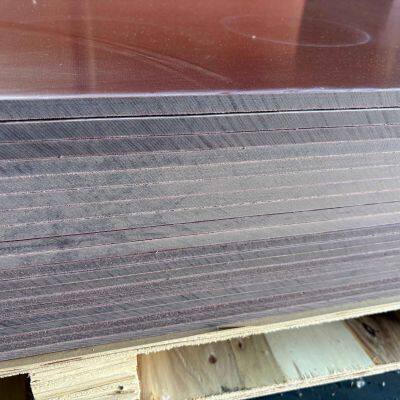

PFCC201 Textolite Phenolic Cotton Cloth Sheet (NEMA C, HGW2082, 3025) photo-2
PFCC201 Textolite Phenolic Cotton Cloth Sheet (NEMA C, HGW2082, 3025) photo-3

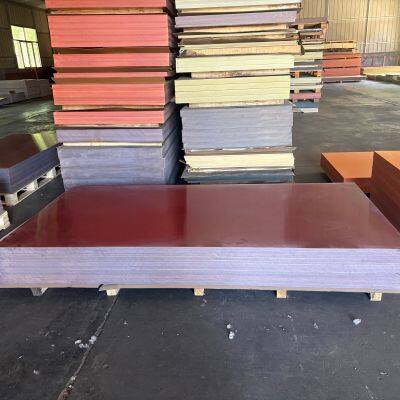

PFCC201 Textolite Phenolic Cotton Cloth Sheet (NEMA C, HGW2082, 3025) photo-4

Product Spotlights

PFCC201/NEMAC phenolic cotton cloth laminated sheet is for mechanical use. It has high strength, impact and wear resistance, low friction and sound absorption. Suitable for heavy-load, abrasive, dusty environments, with good weathering and seawater resistance for industrial applications.
Negotiable MOQ: 500 Kilograms (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Cotton Cloth + Phenolic Resin
Thickness:
10 mm
Color:
Other, Red Brown
Contact Supplier Request Quote Chat Now
Qingdao Yilong Insulation Material Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao, Ningbo, Shanghai, Tianjin
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, Cotton Cloth + Phenolic Resin
Thickness 10 mm
Color Other, Red Brown
Application Electrical Power System, Electronic Communication, Industrial Equipment, Medical Equipment, Transportation
Thermal Rating B 130
Transport Package Pallet or Wooden Case
Specification 1020mmx1220mm, 1220mmx2440mm
Trademark YILONG
Origin China

Description

PFCC201 phenolic cotton cloth laminated sheets are mainly designed for mechanical applications. Made with coarse cotton fabric, this grade offers high mechanical strength but relatively lower electrical properties. It features excellent impact resistance, wear resistance, sound absorption, and low friction. PFCC201 is especially suitable for high-load and wear-resistant components operating in harsh environments with heavy abrasion and high dust levels. The material also shows good resistance to weathering and seawater, making it reliable for demanding industrial conditions.

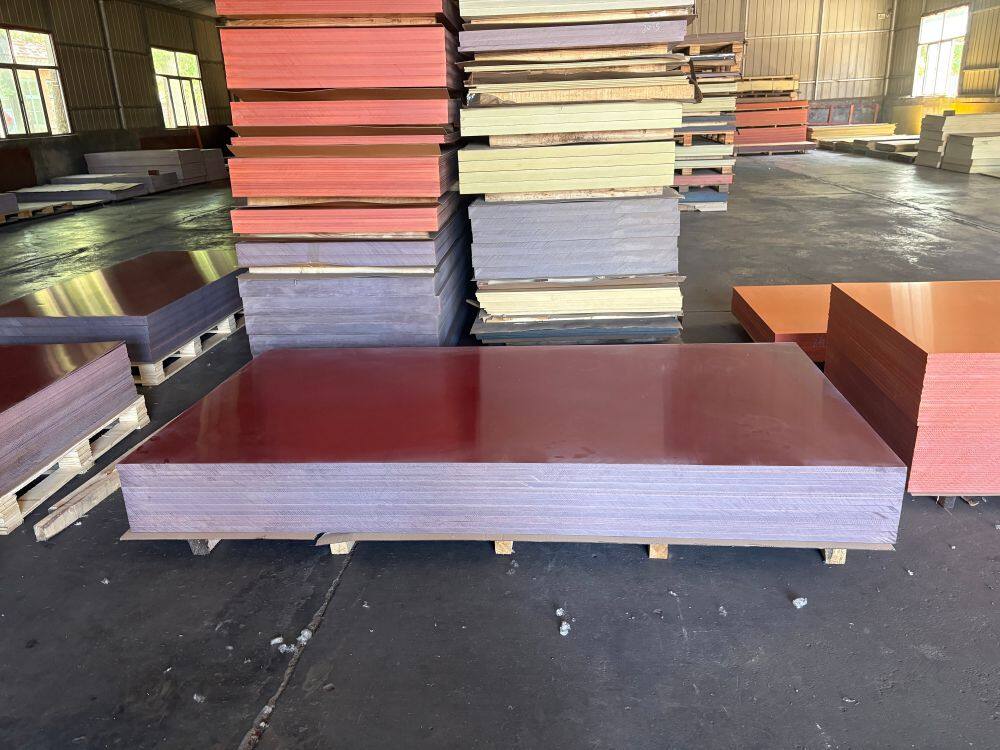

3025 7支 (2).jpg.webp



Features

PFCC201

Phenolic cotton cloth laminate (coarse fabric), mechanical grade.

High mechanical strength, low electrical properties.

Excellent impact and wear resistance, low friction and sound absorption.

Suitable for high-load, wear-resistant parts in harsh, dusty environments.

Resistant to weathering and seawater.

PFCC202

Phenolic cotton cloth laminate (coarse fabric), mechanical and electrical grade.

Provides better electrical properties than PFCC201 while maintaining good mechanical strength.

PFCC203

Phenolic cotton cloth laminate (fine fabric), mechanical grade.

High mechanical strength, low electrical properties, excellent machinability.

Allows tighter tolerances and finer surface finish than PFCC201.

Suitable for small precision mechanical parts with high stress and low wear.

PFCC204

Phenolic cotton cloth laminate (fine fabric), mechanical and electrical grade.

High mechanical strength with better electrical properties than PFCC202.

Suitable for small-sized mechanical and electrical components.


Applications

PFCC201

High-load and wear-resistant mechanical parts, such as gears, bearings, bushings, wear plates, guide rails, and structural components used in harsh, dusty, and abrasive environments, including marine applications.

PFCC202

Mechanical and electrical components requiring improved electrical insulation, such as motor parts, electrical machinery components, insulating supports, and medium-load structural parts.

PFCC203

Precision mechanical parts with high stress and low wear, including small gears, cams, spacers, sleeves, and machined components requiring tight tolerances and smooth surface finish.

PFCC204

Small-sized mechanical and electrical components requiring both high mechanical strength and good electrical insulation, such as insulating structural parts, precision electrical components, and support elements.


Textolite Phenolic Cotton Cloth Sheet (PFCC201/PFCC202/PFCC203/PFCC204/PFCC305)
No. Properties Thick Unit Index
1 Standards / / PFCC201
3025
HGW2082
C850.1 (C)		 PFCC202
3027
HGW2082.5
C850.2 (CE)		 PFCC203
3026
HGW2083
C850.3 (L)		 PFCC204
3028
HGW2083.5
C850.4 (LE)		 PFCC305
2 Density All g/cm3 1.30～1.45 1.30～1.45 1.30～1.45 1.30～1.45 1.30～1.45
3 Flexural Strength ⊥ ≥1.6 MPa ≥100 ≥90 ≥110 ≥100 ≥125
4 Apparent Flexural Modulus ≥1.6 MPa ≥7000 ≥7000 ≥7000 ≥7000 ≥7000
5 Impact strength ∥simply supported beam, thick≥5mm ≥5.0 kJ/m2 ≥8.8 ≥7.8 ≥7.0 ≥6.0 ≥6.0
6 Impact strength ∥cantilever beam, thick≥5mm ≥5.0 kJ/m2 ≥5.4 ≥5.9 ≥5.9 ≥4.9 ≥4.9
7 Adhesion Strength ≥5.0 N ≥3600 ≥3600 ≥3200 ≥3200 ≥3200
8 Shear Strength ∥ ≥5.0 MPa ≥25 ≥25 ≥20 ≥20 ≥20
9 Tensile Strength ≥1.6 MPa ≥80 ≥85 ≥60 ≥80 ≥80
10 Insulation resistance after water immersion All Ω — ≥5x10^7 ≥5x10^7 ≥5x10^7 —
11 AC dielectric constant (50/60 Hz) ≤3.0 — — — ≤5.5 ≤5.5 ≤5.5
12 Comparative Tracking Index (CTI) ≥3.0 — ≥100 ≥100 ≥100 ≥100 ≥100
13 Dielectric strength, measured in transformer oil at 90 ± 2 °C ≥ ∥ ＞3.0 kV — ≥20 — ≥20
14 ⊥ ≤3.0 kV/mm Refer to CHART 1



15 Water absorption ≤ All mg Refer to CHART 2



16 Thermal Index (TI) ≥ ≥3.0 ℃ 120 120 120 120 120


Dielectric strength - CHART 1
Test Thickness (mm) Dielectric strength（kV/mm）

Test Thickness

 (mm)

 Dielectric strength（kV/mm）
3025 3026 3027 3028 3025 3026 3027 3028
0.5 - ≥0.98 - ≥8.1 1.6 ≥0.72 ≥0.72 ≥3.8 ≥5.1
0.6 - ≥0.95 - ≥7.7 1.8 ≥0.69 ≥0.69 ≥3.6 ≥4.8
0.7 - ≥0.92 - ≥7.3 2 ≥0.65 ≥0.65 ≥3.4 ≥4.6
0.8 ≥0.89 ≥0.89 ≥5.6 ≥7.0 2.2 ≥0.61 ≥0.61 ≥3.3 ≥4.4
0.9 ≥0.84 ≥0.84 ≥5.3 ≥6.6 2.4 ≥0.58 ≥0.58 ≥3.2 ≥4.2
1 ≥0.82 ≥0.82 ≥5.1 ≥6.3 2.6 ≥0.56 ≥0.56 ≥3.1 ≥4.1
1.2 ≥0.80 ≥0.80 ≥4.6 ≥5.8 2.8 ≥0.53 ≥0.53 ≥3.0 ≥4.1
1.4 ≥0.76 ≥0.76 ≥4.2 ≥5.4 3 ≥0.50 ≥0.50 ≥3.0 ≥4.0


Water Absorption - CHART 2

Test Thickness

 (mm)

 Water Absorption（mg）

Test Thickness

 (mm)

 Water Absorption（mg）
3025 3026 3027 3028 3025 3026 3027 3028
0.5 - ≤190 - ≤127 5 ≤275 ≤275 ≤175 ≤175
0.6 - ≤194 - ≤129 6 ≤284 ≤284 ≤182 ≤182
0.8 ≤201 ≤201 ≤133 ≤133 8 ≤301 ≤301 ≤195 ≤195
1 ≤206 ≤206 ≤136 ≤136 10 ≤319 ≤319 ≤209 ≤209
1.2 ≤211 ≤211 ≤139 ≤139 12 ≤336 ≤336 ≤223 ≤223
1.6 ≤220 ≤220 ≤145 ≤145 14 ≤354 ≤354 ≤236 ≤236
2 ≤229 ≤229 ≤151 ≤151 16 ≤371 ≤371 ≤250 ≤250
2.5 ≤239 ≤239 ≤157 ≤157 20 ≤406 ≤406 ≤277 ≤277
3 ≤249 ≤249 ≤162 ≤162 25 ≤450 ≤450 ≤311 ≤311
4 ≤262 ≤262 ≤169 ≤169 22.5 ≤540 ≤540 ≤373 ≤373
