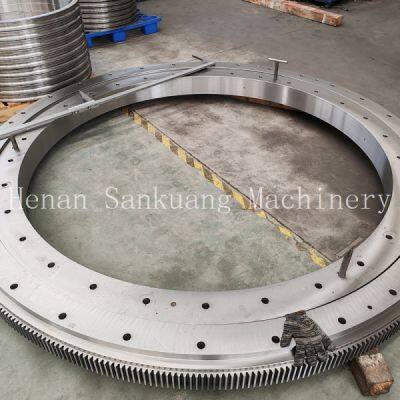

DIN 3961 Standard Annular Gear
Product Spotlights
DIN 3961-compliant annular gears engineered for precision and durability. Features include customizable modules (1-10mm), material options with heat treatment, and ISO/TS certifications. Ideal for industrial machinery requiring reliable torque transmission and global standard interoperability. Export-ready from Shanghai/Qingdao ports.
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Carbon Steel/Alloy Steel (Customizable)
Application:
Other, Industrial Machinery & Transmissions
Module Range:
1-10 mm
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Heavy Duty Annular Gear OEM CustomizedNegotiableMOQ: 1 Piece -
Forged Steel Annular Gear for Farm MachineryNegotiableMOQ: 1 Piece
-
Precision Annular Gear 20CrMnTi Alloy SteelNegotiableMOQ: 1 Piece
-
High Precision Toothed Ring Gear IndustrialNegotiableMOQ: 1 Piece
-
Custom Toothed Ring Gear Module 4-10NegotiableMOQ: 1 Piece
Material
Other, Carbon Steel/Alloy Steel (Customizable)
Application
Other, Industrial Machinery & Transmissions
Module Range
1-10 mm
Pressure Angle
20 degrees (Standard)
Accuracy Grade
DIN 3961 Class 7-10
Heat Treatment
Case Hardening Optional
Certification
ISO 9001, ISO 14000, TS16949
Customization
Bore Size, Tooth Profile Available
Henan San Kuang Machinery Technology Co., Ltd., established in 2014 and operating from a 10,000-30,000 sqm facility in Luoyang, China, specializes in high-precision DIN 3961 Standard Annular Gears. Engineered for seamless integration in demanding industrial systems, our gears ensure optimal torque transmission and longevity. With over $2.5 million in annual exports and certifications including ISO 9001 and TS16949, we deliver globally trusted solutions to markets across North America, Europe, and Asia.
Core Features & Technical Advantages:
- DIN 3961 Compliance: Manufactured to strict German industrial standards for dimensional accuracy and load capacity.
- Material Excellence: Forged from premium carbon/alloy steel with optional case hardening for enhanced wear resistance.

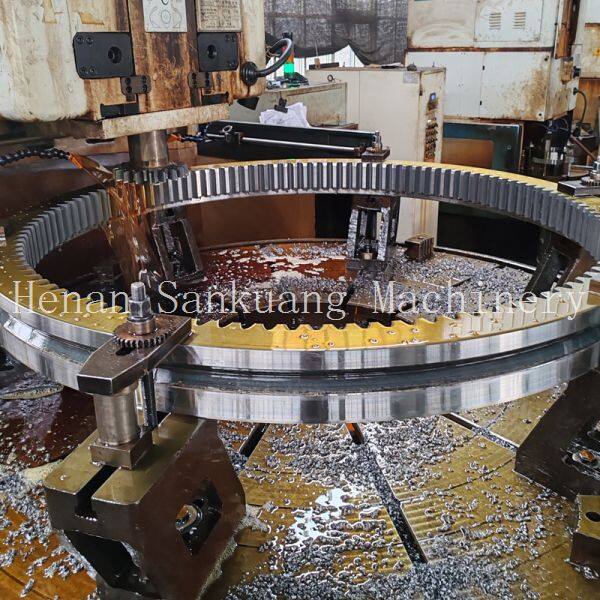

- Precision Engineering: CNC-machined teeth with pressure angles optimized for minimal backlash and noise.
| Parameter | Specification |
|---|---|
| Module Range | 1-10 mm |
| Outer Diameter | 50-500 mm (Customizable) |
| Accuracy Class | DIN Class 7-10 |
Why Choose Our Annular Gears?
- Reduced downtime due to extended service life (>20% vs. non-standard gears)
- Interchangeability with OEM systems for easy retrofitting
- Custom bore sizes and keyways to fit unique assembly requirements
Global Trust & Support: With shipments handled via Shanghai, Qingdao, and Tianjin ports, we serve clients in 15+ regions including OEMs in Western Europe and industrial plants in Southeast Asia. Our 51-100 skilled workforce ensures rigorous quality checks aligned with ISO 14000 and TS16969 protocols. Partner with us for gears that meet exacting global standards while offering cost-efficient performance.
FAQ Section
-
Q: Can these gears be used in high-temperature environments?
A: Optional heat treatment allows operation up to 250°C. -
Q: What lead time should I expect for custom orders?
A: Standard lead time is 4-6 weeks; expedited options available. -
Q: Are inspection reports provided?
A: Yes, ISO 9001-compliant test certificates accompany all shipments. -
Q: Do you supply matched gear sets?
A: Paired sets with optimized meshing characteristics are available. -
Q: What packaging is used for international shipping?

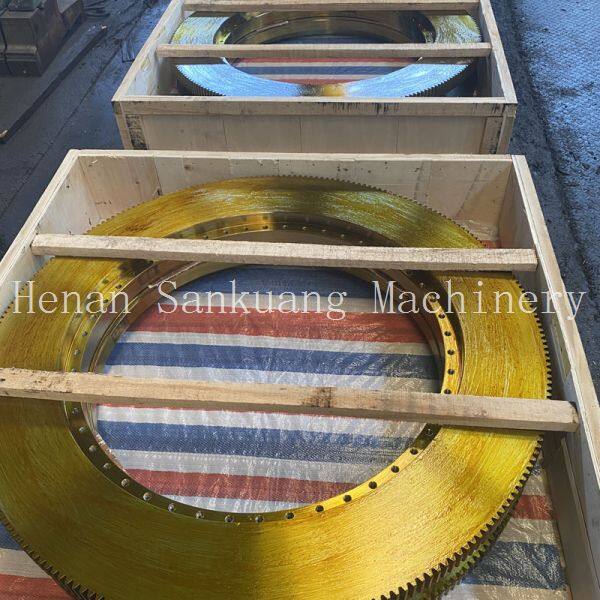

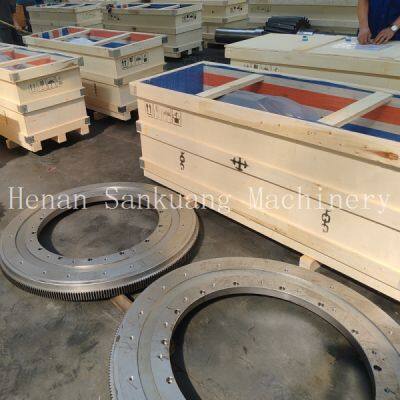

A: Anti-rust VCI packaging + wooden crates for ocean freight. -
Q: Can I request specific material certifications?
A: Material test reports upon request.
