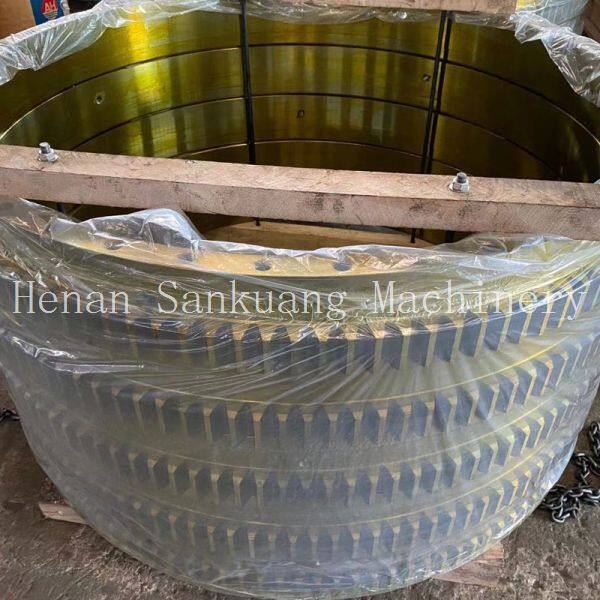

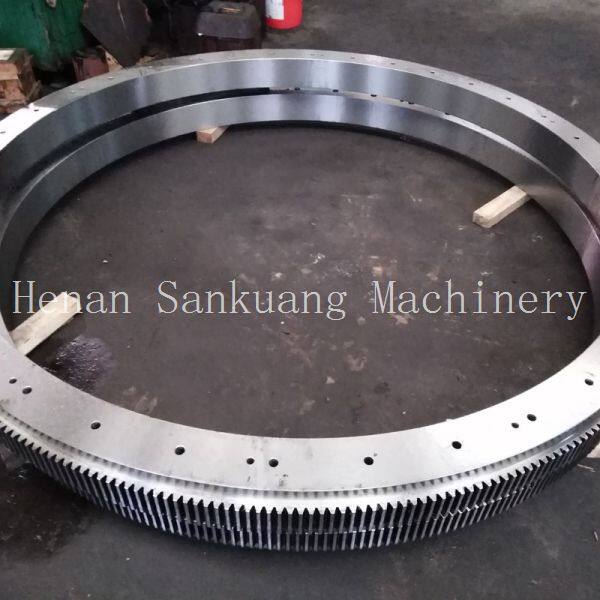

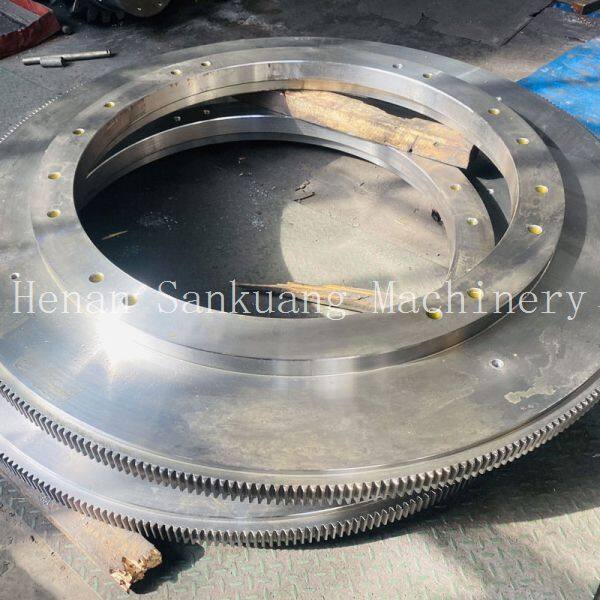

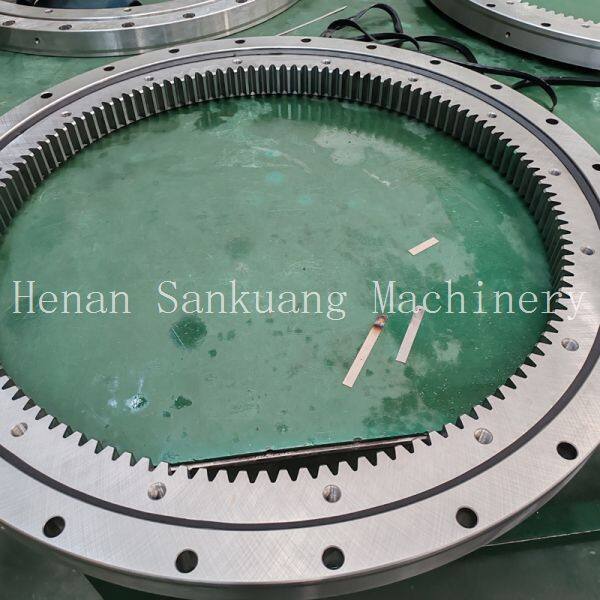

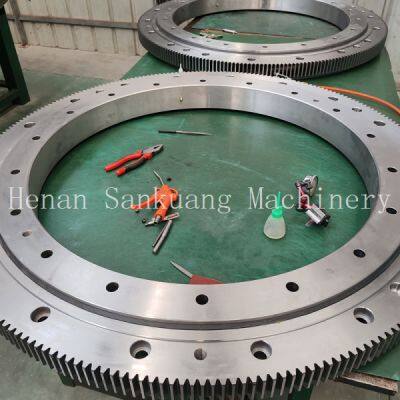

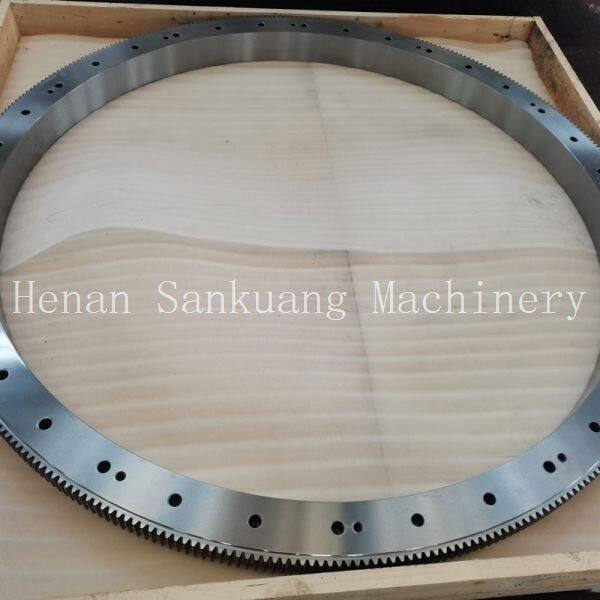

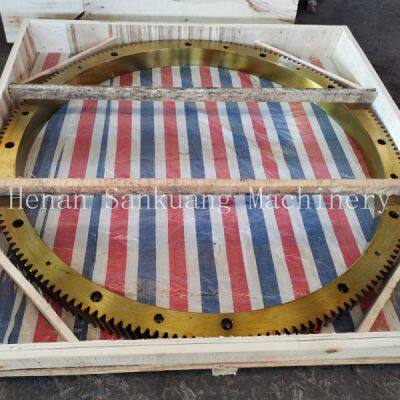

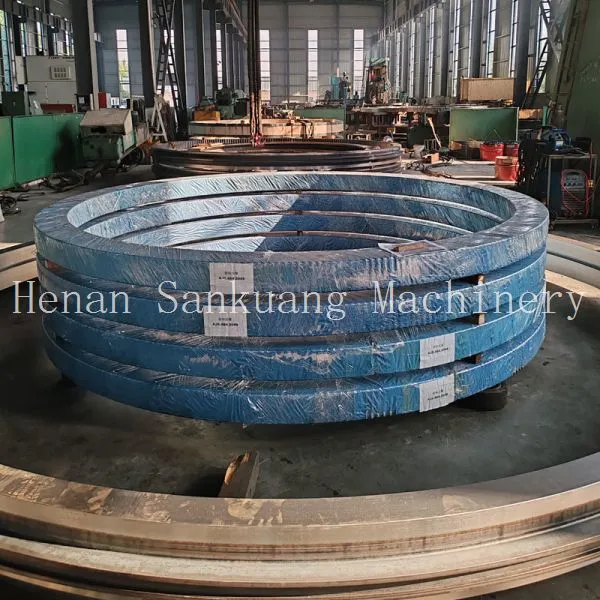

Corrosion Resistant Annular Gear Marine Use
Product Spotlights
Marine-grade annular gears engineered with specialized corrosion resistance for seawater applications. Features include customizable stainless steel/alloy construction, ISO-certified manufacturing, and surface treatments that extend service life in harsh environments. Supports high-torque transmission (15,000 N·m) with global shipping from multiple Chinese ports.
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Stainless Steel or Alloy Steel
Application:
Other, Marine propulsion systems
Size Range:
Customizable diameters from 100mm to 1000mm
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Case Hardened Toothed Ring Gear Auto PartsNegotiableMOQ: 1 Piece -
Hardened Steel Toothed Ring Gear for GearboxNegotiableMOQ: 1 Piece
-
Heavy Duty Triple Gear Transmission Assembly for ReducerNegotiableMOQ: 1 Combo
-
Heat Treated Spiral Bevel Gear for Automotive TransmissionNegotiableMOQ: 1 Combo
-
Precision Double Gear Set for Industrial Heavy MachineryNegotiableMOQ: 1 Combo
Material
Other, Stainless Steel or Alloy Steel
Application
Other, Marine propulsion systems
Size Range
Customizable diameters from 100mm to 1000mm
Certifications
ISO 9001, ISO 14000, OHSAS 18001
Brand
HENAN SAN KUANG
Function
Corrosion resistance, high-torque transmission
Model
SK-MAG Series (Customizable)
Configuration
Standard or custom tooth profiles
Color
Silver-gray (Customizable)
As a trusted manufacturer since 2014, Henan San Kuang Machinery Technology delivers precision-engineered Corrosion Resistant Annular Gears specifically designed for demanding marine applications. Our 10,000-30,000 sqm factory combines advanced manufacturing with ISO 9001 certified processes to create gears that withstand harsh seawater environments while maintaining peak performance.
These annular gears solve critical challenges in marine operations:
- Eliminate premature failure from saltwater corrosion
- Reduce maintenance downtime by up to 40%
- Maintain torque integrity in high-load applications
- Extend service life beyond standard marine components
| Parameter | Specification |
|---|---|
| Material Grades | 316L Stainless / 2205 Duplex / Custom alloys |
| Hardness | 28-32 HRC (Surface-hardened options available) |
| Load Capacity | Up to 15,000 N·m torque transmission |
| Temperature Range | -40°C to +120°C operational stability |
Advanced protective treatments include:
- Electrolytic passivation for microscopic surface smoothing
- Multi-layer epoxy coating (optional)
- Custom cathodic protection integration points
With US$2.5-5 million annual exports shipped through Shanghai, Qingdao, and Tianjin ports, our gears serve global marine sectors including:
- Offshore support vessels
- Container ship propulsion systems
- Fishing trawler winches
- Dredging equipment
- Naval auxiliary systems
- Research vessel instrumentation
Frequently Asked Questions:
-
Q: What material performs best in tropical marine environments?
A: Our 2205 duplex stainless steel provides optimal corrosion resistance in warm seawater with high chloride content. -
Q: Can you manufacture non-standard pitch diameters?
A: Yes, our CNC gear cutting equipment handles diameters from 80mm to 1.2m with custom tooth profiles. -
Q: Do you provide material certification documentation?
A> All shipments include mill test certificates and ISO 9001 compliance documentation. -
Q: What is the lead time for custom gear production?
A> Standard configurations ship in 4-6 weeks; complex custom designs require 8-10 weeks. -
Q: How does your corrosion protection compare to galvanizing?
A> Our electrochemical passivation creates a more uniform protective layer without thickness issues common in galvanization. -
Q: Can existing gear systems be retrofitted with your components?
A> We offer reverse engineering services to create drop-in replacements for obsolete marine gears.
Backed by OHSAS 18001 safety standards and serving clients across 6 continents from our Henan facility, we provide comprehensive technical support from design consultation to performance validation. Contact our engineering team today for your marine corrosion solution.
