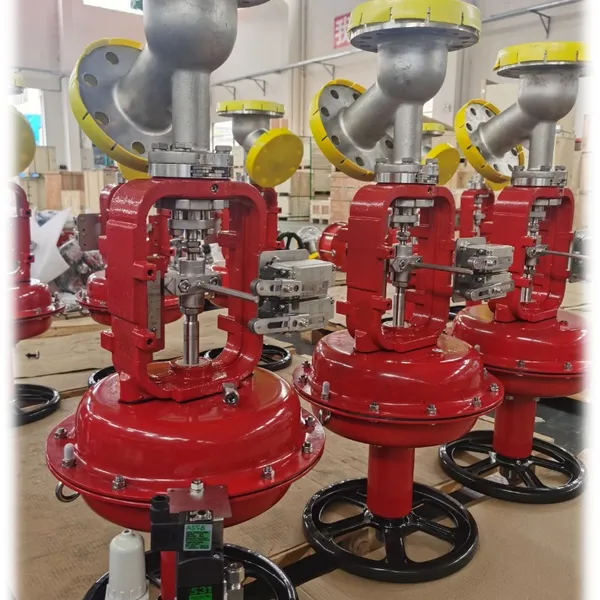

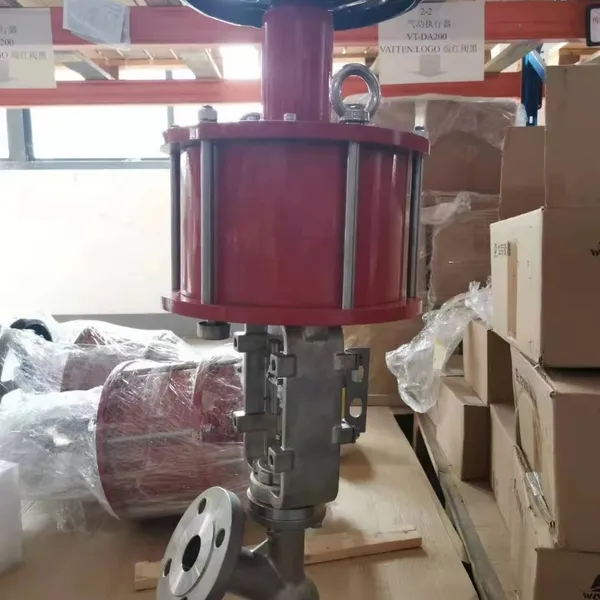

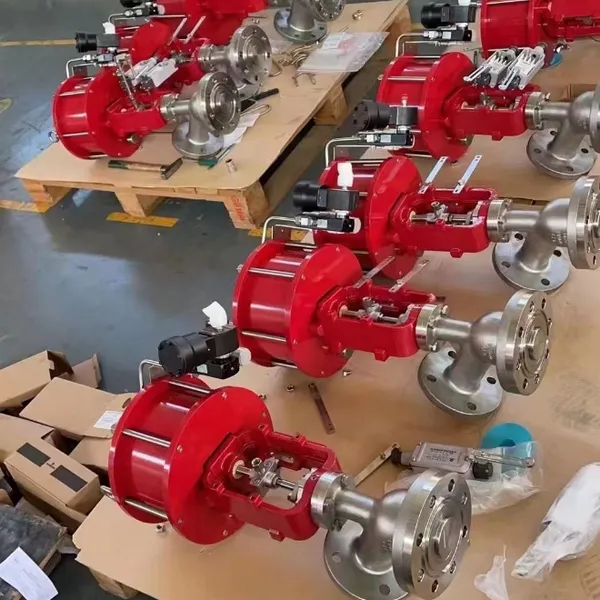

Help CenterManual/Automatic Discharge Valve PN10/PN16 CLASS 150 Flange Connection
Product Spotlights
Related Products
-
Short-Stroke Discharge Valve With Hard Alloy Sealing for Chemical ProcessingNegotiableMOQ: 1 Piece -
Bottom Discharge Valve VTF-88-3 Series, DN25-DN300, Stainless Steel 316L/Carbon Steel, PN10/PN16 Class 150, Manual or Pneumatic ActuationNegotiableMOQ: 1 Set
-
Corrosion-Resistant Bottom Discharge Valve With Erosion-Proof Sealing, Anti-Scaling Design for Oil, Acid, and Corrosive MediaNegotiableMOQ: 1 Set
-
Bottom Discharge Valve Compatible With Reactor Kettles and Containers, Featuring Dead-Zone-Free Shut-Off and Flange ConnectionNegotiableMOQ: 1 Set
-
Industrial Discharge Valve for Chemical and Pharmaceutical Reactor Kettles, Storage Tanks Bottom Discharge and SamplingNegotiableMOQ: 1 Set
Shanghai CAMP Environmental Protection Technology Co., Ltd., established in 2015, specializes in delivering high-performance fluid control solutions for global industrial applications. Our Manual/Automatic Discharge Valve with PN10/PN16 CLASS 150 Flange Connection represents engineering excellence designed for precision fluid management in demanding environments. Engineered to ensure operational reliability and system safety, this valve serves as a critical component for industries requiring efficient discharge control mechanisms. With a presence across North America, South America, Eastern Europe, Southeast Asia, and other major global markets, we understand diverse operational requirements and deliver accordingly.
Core Product Overview:
This versatile discharge valve facilitates controlled release of liquids or gases in pipelines, featuring dual operation modes (manual and automatic) to accommodate varying process needs. The flange connection ensures secure integration into existing systems while maintaining pressure integrity up to CLASS 150 standards.
Key Characteristics:
- Dual Operation Flexibility: Switch between manual override and automated control based on process requirements
- Robust Pressure Handling: Compliant with PN10 (10 bar) and PN16 (16 bar) pressure ratings
- Flange Compatibility: Standard flange design for seamless system integration
- Multi-Material Construction: Available in cast iron, stainless steel, and carbon steel variants
- Wide Temperature Tolerance: Operational range from -20°C to 150°C
Technical Specifications Table:
| Parameter | Specification |
|---|---|
| Connection Standard | ASME B16.5 / EN 1092-1 |
| Pressure Class | PN10, PN16, CLASS 150 |
| Port Sizes | DN15 (1/2") to DN300 (12") |
| Seat Material | EPDM, NBR, Viton (Optional) |
Operational Advantages:
- System Protection: Prevents pipeline overpressure situations through timely discharge
- Maintenance Efficiency: Flange design enables quick installation and service access
- Process Optimization: Automated versions integrate with control systems for precision timing
- Corrosion Resistance: Stainless steel variants available for aggressive media handling
Frequently Asked Questions:
Q: What distinguishes automatic operation from manual mode?
A: Automatic versions incorporate actuators (pneumatic/electric) for programmable discharge cycles, while manual valves require hand-wheel operation.
Q: Which material selection is optimal for chemical applications?
A: 316 stainless steel construction is recommended for corrosive fluids, with optional seat material customization.
Q: Are flange dimensions standardized?
A: Yes, manufactured to ASME B16.5 or EN 1092-1 specifications for global compatibility.
Q: Can this valve handle high-viscosity fluids?
A: Designed for medium viscosity liquids; consult our engineers for specialized high-viscosity applications.
Q: What maintenance intervals are required?
A: Standard recommendation: inspect seals annually and lubrication points quarterly under normal operating conditions.
Q: Is field conversion possible between manual/automatic?
A: Certain models support retrofitting; please specify requirement during inquiry.
Backed by Shanghai CAMP's decade-long expertise in environmental protection technology and proven market presence across 6 continents, this discharge valve series embodies reliability tested in diverse industrial environments. Our solutions cater to water treatment plants, chemical processing facilities, power generation installations, and manufacturing operations worldwide. The combination of rigorous quality control and adaptable design ensures optimal performance in your specific application context. Contact our technical team today for customized configuration advice or request detailed documentation to verify compatibility with your operational parameters.
