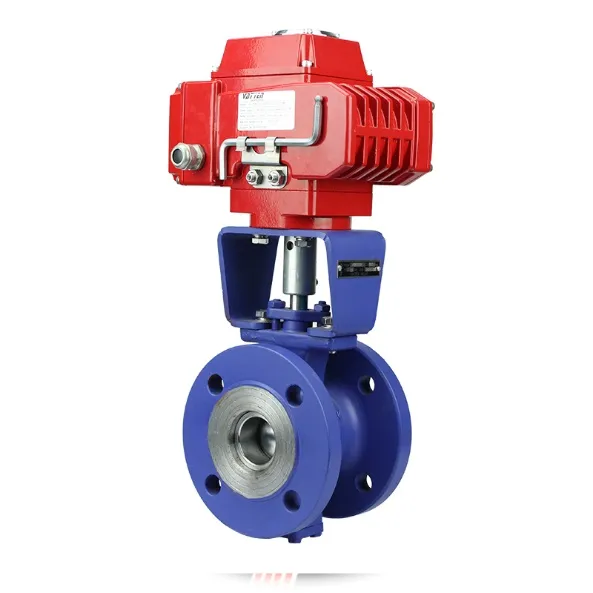

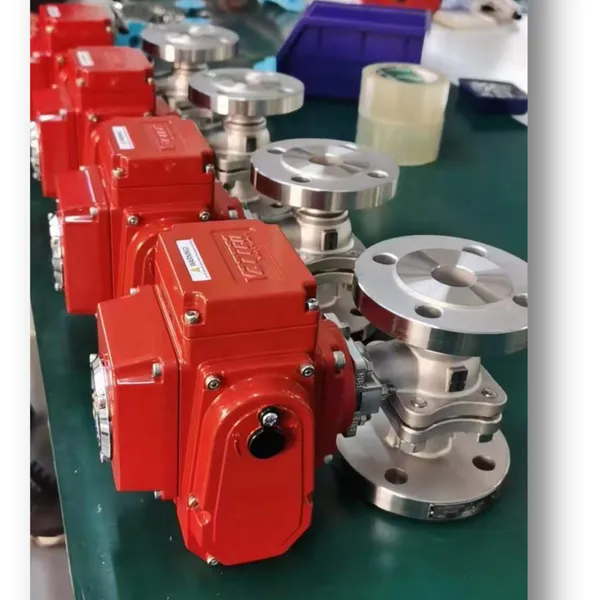

Help Center3-Way Flanged Ball Valve With Electric Actuator for Process Control Systems
Product Spotlights
Related Products
-
High-Pressure Flanged Ball Valve 10.0MPa With Manual/Gear OperationNegotiableMOQ: 1 Piece -
CF8M 316 Stainless Steel Flanged Ball Valve -20℃ to 400℃ Temperature RangeNegotiableMOQ: 1 Piece
-
Food Grade Flanged Ball Valve With Polished Bore for Dairy ProcessingNegotiableMOQ: 1 Piece
-
Low-Torque Y-Type Three-Way Ball Valve With NEMA 4X Pneumatic Actuator for Harsh EnvironmentsNegotiableMOQ: 1 Piece
-
Food-Grade Pneumatic Y-Type Three-Way Ball Valve for Dairy Processing LinesNegotiableMOQ: 1 Piece
Shanghai CAMP Environmental Protection Technology Co., Ltd., established in 2015, specializes in providing advanced flow control solutions to global markets including North America, South America, Europe, Asia, and beyond. Our 3-Way Flanged Ball Valve with Electric Actuator is engineered to deliver exceptional reliability and precision in demanding process control applications. Designed for seamless integration into complex systems, this valve ensures optimal fluid management with minimal maintenance requirements.
Core Technical Specifications:
- ➤ Multi-Port Design: Features T-port or L-port configurations for versatile flow direction control
- ➤ Robust Construction: Forged stainless steel body with PTFE seats ensures longevity
- ➤ Precision Actuation: Electric actuators provide accurate positioning (±1% accuracy)
- ➤ Temperature Range: Operates effectively from -20°C to 220°C (-4°F to 428°F)
- ➤ Pressure Rating: 150 PSI to 600 PSI (PN16 to PN40) depending on size
Performance Comparison Table
| Feature | Standard Model | Industrial Grade |
|---|---|---|
| Cycle Life | 100,000 cycles | 500,000+ cycles |
| Actuator Response | 2-5 seconds | <1 second |
| IP Rating | IP65 | IP67/IP68 |
Key Operational Benefits:
- ▸ Reduced maintenance costs due to self-lubricating stem seals
- ▸ Energy efficiency through low-friction ball movement design
- ▸ Fail-safe options available for critical process applications
- ▸ NACE-compatible materials for corrosive environments
Frequently Asked Questions
-
Q: What industries typically use this valve?
A: Common applications include chemical processing, pharmaceutical manufacturing, food & beverage production, and HVAC systems. -
Q: Can the actuator be replaced independently?
A: Yes, our modular design allows actuator replacement without full valve removal. -
Q: Are position feedback signals available?
A: Models can be equipped with 4-20mA or potentiometer position indicators. -
Q: What maintenance intervals are recommended?
A: Under normal conditions, inspection every 24 months is sufficient. -
Q: Can custom flange dimensions be accommodated?
A: Special flange configurations can be provided upon request. -
Q: Is pneumatic actuation available?
A: While this model features electric actuation, pneumatic versions are available separately.
With distribution networks spanning across 6 continents, Shanghai CAMP has delivered flow control solutions to over 2,000 industrial facilities worldwide. Our decade-long expertise in environmental protection technology translates into valves designed for sustainable operation with minimal environmental impact. The electric actuator features low-power consumption circuitry, reducing operational carbon footprint by up to 18% compared to conventional designs.
For process engineers seeking reliable flow diversion solutions, our 3-way valves offer:
• Precision control with ±0.5% repeatability
• Simplified installation through standardized flange patterns
• Reduced downtime with front-loaded seal replacement capability
Contact our Shanghai-based engineering team today for custom sizing calculations and application-specific material recommendations.
